CONSOLE BOX & BRACKET

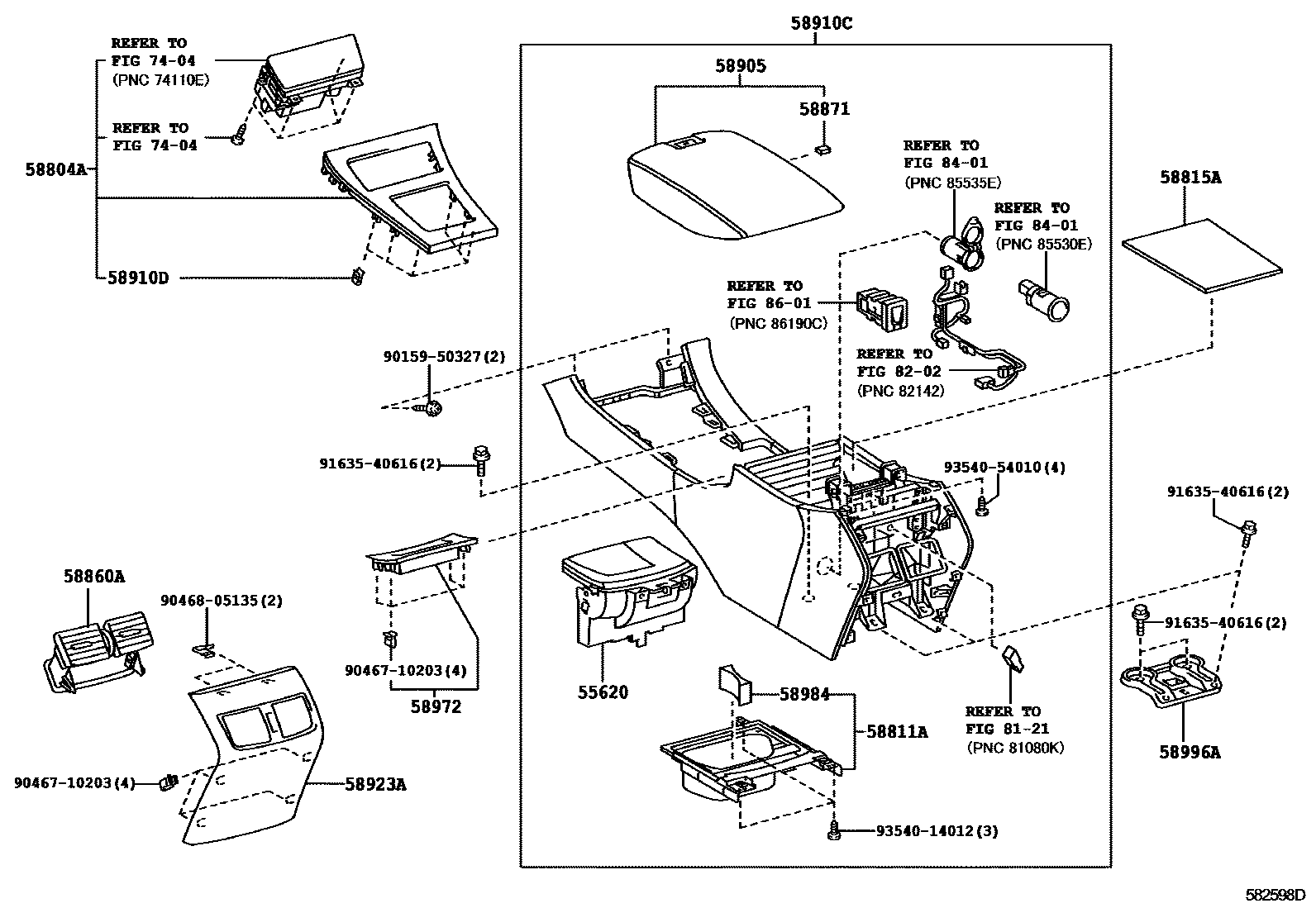

Parts diagram
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-33220-C0i200806-200908
BLACK,TRIM2#
sub55620-33220
main55620-33220-C1i200908-201206
BLACK,TRIM10,20
sub55620-33220
main55620-33220-C2i200908-201206
BLACK,TRIM11,21
sub55620-33220
main55620-33220-E2i200605-200806
BLACK,TRIM2#
sub55620-33220
main55620-33220-E3i200605-200806
ORCHID BROWN,TRIM0#
sub55620-33220
main55620-33220-E4i200605-200806
DK.BLUE,TRIM1#
sub55620-33220
main55620-33220-E5i200806-200908
ORCHID BROWN,TRIM0#
sub55620-33220
main55620-33220-E6i200908-201206
ORCHID BROWN,TRIM00
sub55620-33220
main55620-33220-E7i200908-201206
ORCHID BROWN,TRIM01
sub55620-33220
main55620-33220-J0i200806-200908
DK.BLUE,TRIM1#
sub55620-33220
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-33680-E0i200908-201206
MD.BROWN,TRIM00,10,20
main58804-33680-E1i200605-200908
BROWN,TRIM0#,1#,2#
main58804-33680-E2i200908-201206
DK.BROWN,TRIM01,11,21
58811ABOX, CONSOLE, FRONT
main58802-33070i200605-200908
sub58802-33080
main58802-33080i200908
58815ACARPET, CONSOLE BOX
main58815-33100i200605-200908
main58815-33130i200908
58860AREGISTER ASSY, CONSOLE BOX
main58860-33030-A0i200605-200908
IVORY,TRIM0#
sub58860-33030
main58860-33030-B0i200605-200908
LT.GRAY,TRIM1#
sub58860-33030
main58860-33030-C0i200605-200908
BLACK,TRIM2#
sub58860-33030
main58860-33040-A0i200908-201206
PREMIUM PLUS PACKAGE,IVORY,TRIM0#
sub58860-33040
main58860-33040-A0i200908-201206
IVORY,TRIM0#
sub58860-33040
main58860-33040-B0i200908-201206
LT.GRAY,TRIM1#
sub58860-33040
main58860-33040-B0i200908-201206
PREMIUM PLUS PACKAGE,LT.GRAY,TRIM1#
sub58860-33040
main58860-33040-C0i200908-201206
BLACK,TRIM0#,1#,2#
sub58860-33040
main58860-33040-C0i200908
BLACK,TRIM2#
sub58860-33040
main58860-33040-C0i200908
ULTRA LUXURY PACKAGE,BLACK,TRIM0#,1#,2#
sub58860-33040
58871CUSHION, CONSOLE BOX
main55419-32020i200605-200908
main58871-48010i200908
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-33360-A0i200605-200908
NEW IVORY,TRIM0#
sub58905-33410
main58905-33360-B0i200605-200908
LT.GRAY,TRIM1#
sub58905-33410
main58905-33360-C0i200605-200908
BLACK,TRIM2#
sub58905-33410
main58905-33421-C2i200908-201206
PREMIUM PLUS PACKAGE,BLACK/BLACK,TRIM2#
sub58905-33422
main58905-33421-C2i200908-201206
BLACK/BLACK,TRIM2#
sub58905-33422
main58905-33421-C3i200908-201206
BLACK/LIGHT GRAY,TRIM1#
sub58905-33422
main58905-33421-C3i200908-201206
PREMIUM PLUS PACKAGE,BLACK/LIGHT GRAY,TRIM1#
sub58905-33422
main58905-33421-E1i200908-201206
ORCHID BROWN/IVORY,TRIM0#
sub58905-33422
main58905-33421-E1i200908-201206
PREMIUM PLUS PACKAGE,ORCHID BROWN/IVORY,TRIM0#
sub58905-33422
main58905-33430-C0i200908-201206
BLACK,TRIM2#
sub58905-33431
main58905-33430-C0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,BLACK,TRIM2#
sub58905-33431
main58905-33430-C1i200908-201206
BLACK,TRIM1#
sub58905-33431
main58905-33430-C1i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,BLACK,TRIM1#
sub58905-33431
main58905-33430-E0i200908-201206
ORCHID BROWN,TRIM0#
sub58905-33431
main58905-33430-E0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,ORCHID BROWN,TRIM0#
sub58905-33431
58910CBOX ASSY, CONSOLE, REAR
main58910-33320-C0i200605-200908
BLACK,TRIM2#
sub58910-33370
main58910-33320-E0i200605-200908
ORCHID BROWN,TRIM0#
sub58910-33370
main58910-33320-J0i200605-200908
DK. BLUE,TRIM1#
sub58910-33370
main58910-33340-C0i200702-200908
BLACK,TRIM2#
sub58910-33350
main58910-33340-E0i200702-200908
ORCHID BROWN,TRIM0#
sub58910-33350
main58910-33340-J0i200702-200908
DK.BLUE,TRIM1#
sub58910-33350
main58910-33381-C6i200908-201206
BLACK/BLACK/MD.BROWN,TRIM20
main58910-33381-C7i200908-201206
BLACK/BLACK/DK.BROWN,TRIM21
main58910-33381-C8i200908-201206
BLACK/LIGHT GRAY/MD.BROWN,TRIM10
main58910-33381-C9i200908-201206
BLACK/LIGHT GRAY/DK.BROWN,TRIM11
main58910-33381-E3i200908-201206
ORCHID BROWN/MD.BROWN,TRIM00
main58910-33381-E4i200908-201206
ORCHID BROWN/DK.BROWN,TRIM01
main58910-33391-C4i200908-201206
BLACK/BLACK/MD.BROWN,TRIM20
sub58910-33392
main58910-33391-C4i200908-201206
PREMIUM PLUS PACKAGE,BLACK/BLACK/MD.BROWN,TRIM20
sub58910-33392
main58910-33391-C4i200908-201206
AUDIO JACK-MINI JACK & USB,BLACK/BLACK/MD.BROWN,TRIM20
sub58910-33392
main58910-33391-C5i200908-201206
BLACK/BLACK/DK.BROWN,TRIM21
sub58910-33392
main58910-33391-C5i200908-201206
PREMIUM PLUS PACKAGE,BLACK/BLACK/DK.BROWN,TRIM21
sub58910-33392
main58910-33391-C5i200908-201206
AUDIO JACK-MINI JACK & USB,BLACK/BLACK/DK.BROWN,TRIM21
sub58910-33392
main58910-33391-C6i200908-201206
BLACK/LIGHT GRAY/MD.BROWN,TRIM10
sub58910-33392
main58910-33391-C6i200908-201206
PREMIUM PLUS PACKAGE,BLACK/LIGHT GRAY/MD.BROWN,TRIM10
sub58910-33392
main58910-33391-C6i200908-201206
AUDIO JACK-MINI JACK & USB,BLACK/LIGHT GRAY/MD.BROWN,TRIM10
sub58910-33392
main58910-33391-C7i200908-201206
PREMIUM PLUS PACKAGE,BLACK/LIGHT GRAY/DK.BROWN,TRIM11
sub58910-33392
main58910-33391-C7i200908-201206
BLACK/LIGHT GRAY/DK.BROWN,TRIM11
sub58910-33392
main58910-33391-C7i200908-201206
AUDIO JACK-MINI JACK & USB,BLACK/LIGHT GRAY/DK.BROWN,TRIM11
sub58910-33392
main58910-33391-E2i200908-201206
ORCHID BROWN/MD.BROWN,TRIM00
sub58910-33392
main58910-33391-E2i200908-201206
PREMIUM PLUS PACKAGE,ORCHID BROWN/MD.BROWN,TRIM00
sub58910-33392
main58910-33391-E2i200908-201206
AUDIO JACK-MINI JACK & USB,ORCHID BROWN/MD.BROWN,TRIM00
sub58910-33392
main58910-33391-E3i200908-201206
ORCHID BROWN/DK.BROWN,TRIM01
sub58910-33392
main58910-33391-E3i200908-201206
PREMIUM PLUS PACKAGE,ORCHID BROWN/DK.BROWN,TRIM01
sub58910-33392
main58910-33391-E3i200908-201206
AUDIO JACK-MINI JACK & USB,ORCHID BROWN/DK.BROWN,TRIM01
sub58910-33392
main58910-33410-C0i200908-201206
BLACK & MD,BROWN,TRIM20
sub58910-33411
main58910-33410-C0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,BLACK & MD,BROWN,TRIM20
sub58910-33411
main58910-33410-C1i200908-201206
BLACK & DK,BROWN,TRIM21
sub58910-33411
main58910-33410-C1i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,BLACK & DK,BROWN,TRIM21
sub58910-33411
main58910-33410-C2i200908-201206
LIGHT GRAY & MD,BROWN,TRIM10
sub58910-33411
main58910-33410-C2i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,LIGHT GRAY & MD,BROWN,TRIM10
sub58910-33411
main58910-33410-C3i200908-201206
LIGHT GRAY & DK,BROWN,TRIM11
sub58910-33411
main58910-33410-C3i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,LIGHT GRAY & DK,BROWN,TRIM11
sub58910-33411
main58910-33410-E0i200908-201206
IVORY & MD,BROWN,TRIM00
sub58910-33411
main58910-33410-E0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,IVORY & MD,BROWN,TRIM00
sub58910-33411
main58910-33410-E1i200908-201206
IVORY & DK,BROWN,TRIM01
sub58910-33411
main58910-33410-E1i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO JACK-MINI JACK & USB,IVORY & DK,BROWN,TRIM01
sub58910-33411
58910DCLIP(FOR CONSOLE BOX)
main90468-05135i200605-200908
58923APANEL, CONSOLE REAR END
main58923-33040-A0i200605-200908
IVORY,TRIM0#
main58923-33040-B0i200605-200908
LT.GRAY,TRIM1#
main58923-33040-C0i200605-200908
BLACK,TRIM2#
main58923-33050-A0i200908-201206
IVORY,TRIM0#
main58923-33050-A0i200908-201206
PREMIUM PLUS PACKAGE,IVORY,TRIM0#
main58923-33050-B0i200908-201206
LT.GRAY,TRIM1#
main58923-33050-B0i200908-201206
PREMIUM PLUS PACKAGE,LT.GRAY,TRIM1#
main58923-33050-C0i200908-201206
BLACK,TRIM2#
main58923-33050-C0i200908-201206
PREMIUM PLUS PACKAGE,BLACK,TRIM2#
main58923-33060-A0i200908-201206
IVORY,TRIM0#
main58923-33060-A0i200908-201206
ULTRA LUXURY PACKAGE,IVORY,TRIM0#
main58923-33060-A0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main58923-33060-B0i200908-201206
LT.GRAY,TRIM1#
main58923-33060-B0i200908-201206
ULTRA LUXURY PACKAGE,LT.GRAY,TRIM1#
main58923-33060-B0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE),LT.GRAY,TRIM1#
main58923-33060-C0i200908-201206
BLACK,TRIM2#
main58923-33060-C0i200908-201206
ULTRA LUXURY PACKAGE,BLACK,TRIM2#
main58923-33060-C0i200908-201206
*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
58972BASE, HEATER SEAT SWITCH CONSOLE
main58972-33060-C0i200605-200908
BLACK,TRIM2#
sub58972-33060
main58972-33060-E0i200605-200908
ORCHID BROWN,TRIM0#
sub58972-33060
main58972-33060-J0i200605-200908
DK.BLUE,TRIM1#
sub58972-33060
main58972-33090-C0i200908-201206
BLACK,TRIM1#,2#
main58972-33090-E0i200908-201206
ORCHID BROWN,TRIM0#
58984RETAINER, UPPER CONSOLE
main58984-33010i200605-200908
sub58984-33020
main58984-33020i200908-201206
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-33060i200605-200908
7404
8121
8202
8401
8601
9015950327
main90159-50327
9046710203
main90467-10203
9046805135
main90468-05135
9163540616
main91635-40616
9354014012
main93540-14012
9354054010
main93540-54010

24 parts on this diagram · 2 diagrams in section
