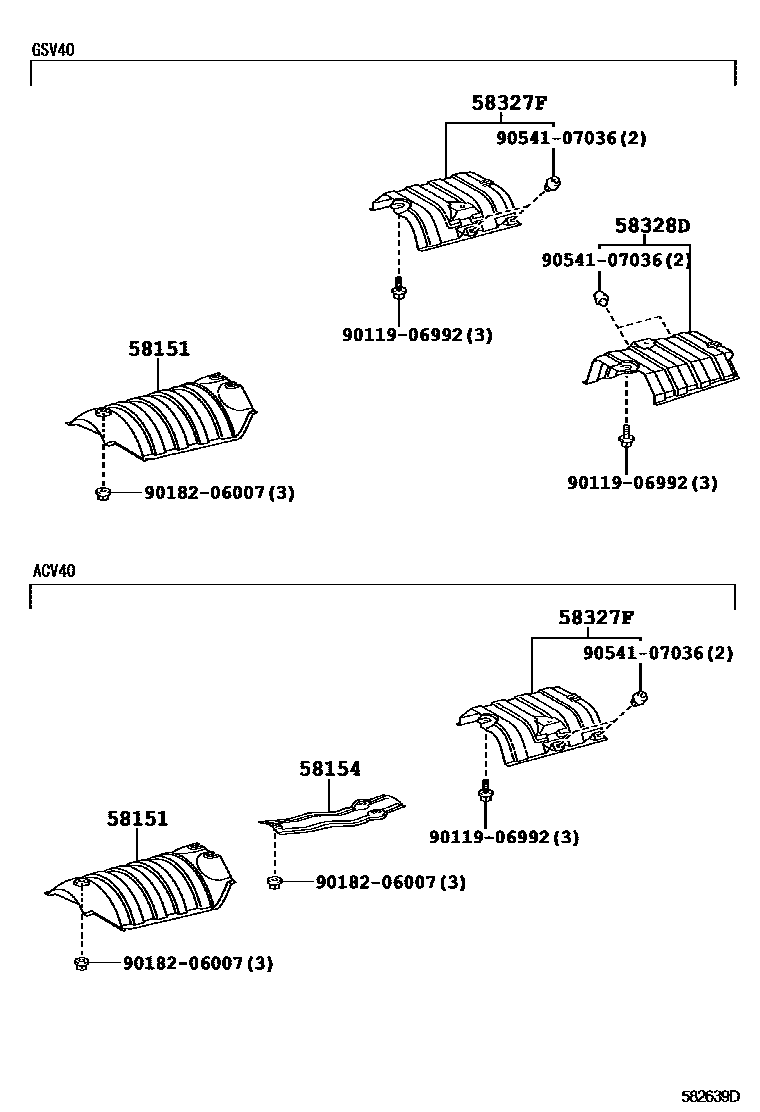

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-33060iGSV40200605-200908

58154INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER

main58154-33010iACV40200908

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-33050iGSV40200605-200908

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-33010iGSV40200605-200908

9011906992

main90119-06992

9018206007

main90182-06007

9054107036

main90541-07036

7 parts on this diagram · 1 diagram in section
