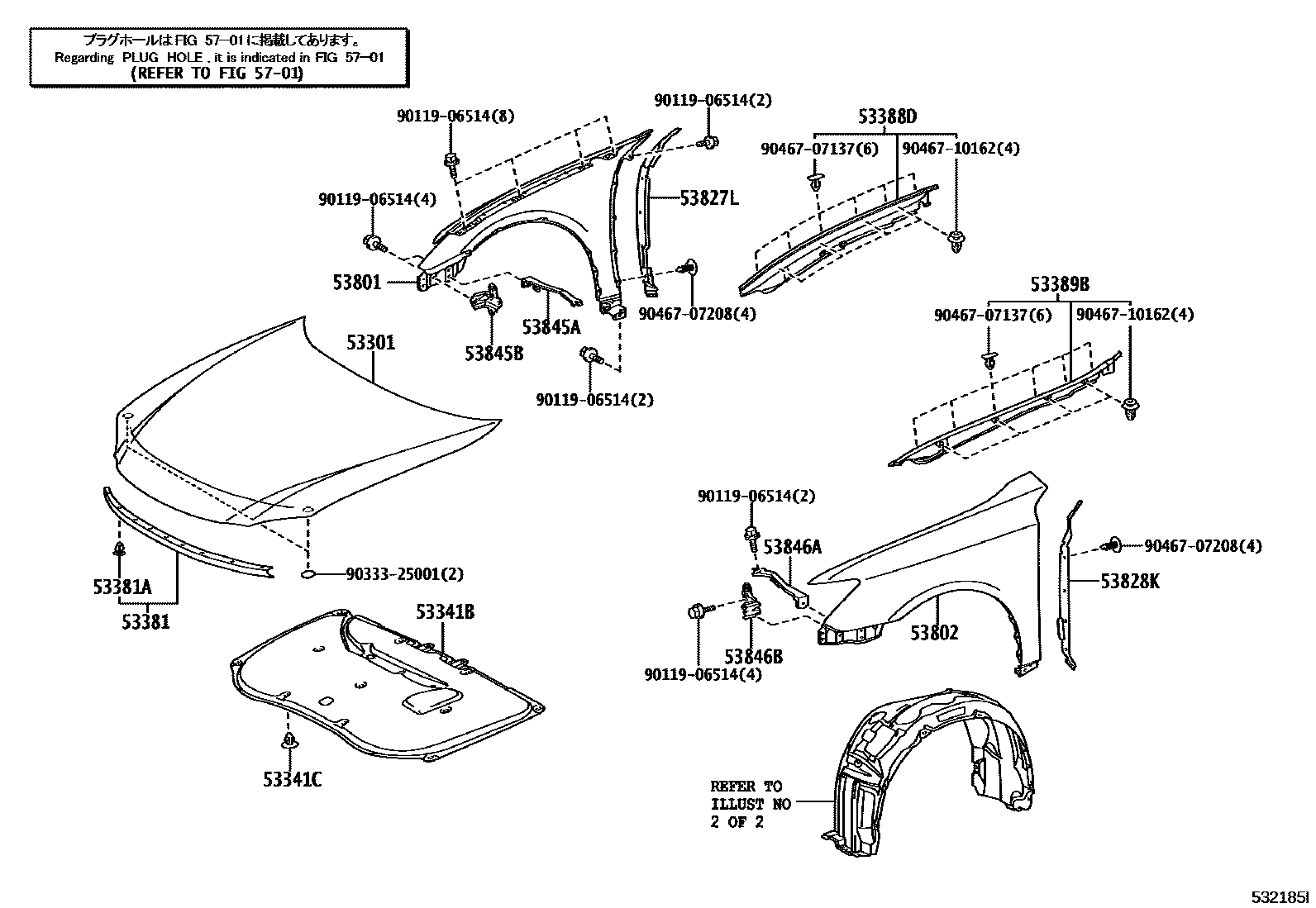

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-33140iGSV40200605-200908

53341BINSULATOR, HOOD

main53341-33160iGSV40200605-200908

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×11iGSV40200605-200908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33090iGSV40200605-200908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iGSV40200605-200908

53388DSEAL, HOOD TO FRONT FENDER, RH

main53805-33020iGSV40200605-200908

main53805-33021iACV40,GSV40200909

53389BSEAL, HOOD TO FRONT FENDER, LH

main53806-33010iACV40,GSV40200908-200909

main53806-33011iACV40,GSV40200909

53801FENDER SUB-ASSY, FRONT RH

main53811-33180iACV40,GSV40200908-201206

main53811-33190iGSV40..CHI200607-200908

53802FENDER SUB-ASSY, FRONT LH

main53812-33180iGSV40..GCC200605-200908

main53812-33190iGSV40..CHI200607-200908

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-33060iGSV40200605-200908

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33060iGSV40200605-200908

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33080iGSV40200605-200908

53845BEXTENSION, FRONT WHEEL OPENING, NO.1 RH

main53847-33010iGSV40200605-200908

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33070iGSV40200605-200908

53846BEXTENSION, FRONT WHEEL OPENING, NO.1 LH

main53848-33010iGSV40200605-200908

5701HOLE PLUG

→ Go to FIG 57-01

9011906514

main90119-06514

9033325001

main90333-25001

9046707137

main90467-07137

9046707208

main90467-07208

9046710162

main90467-10162

21 parts on this diagram · 2 diagrams in section
