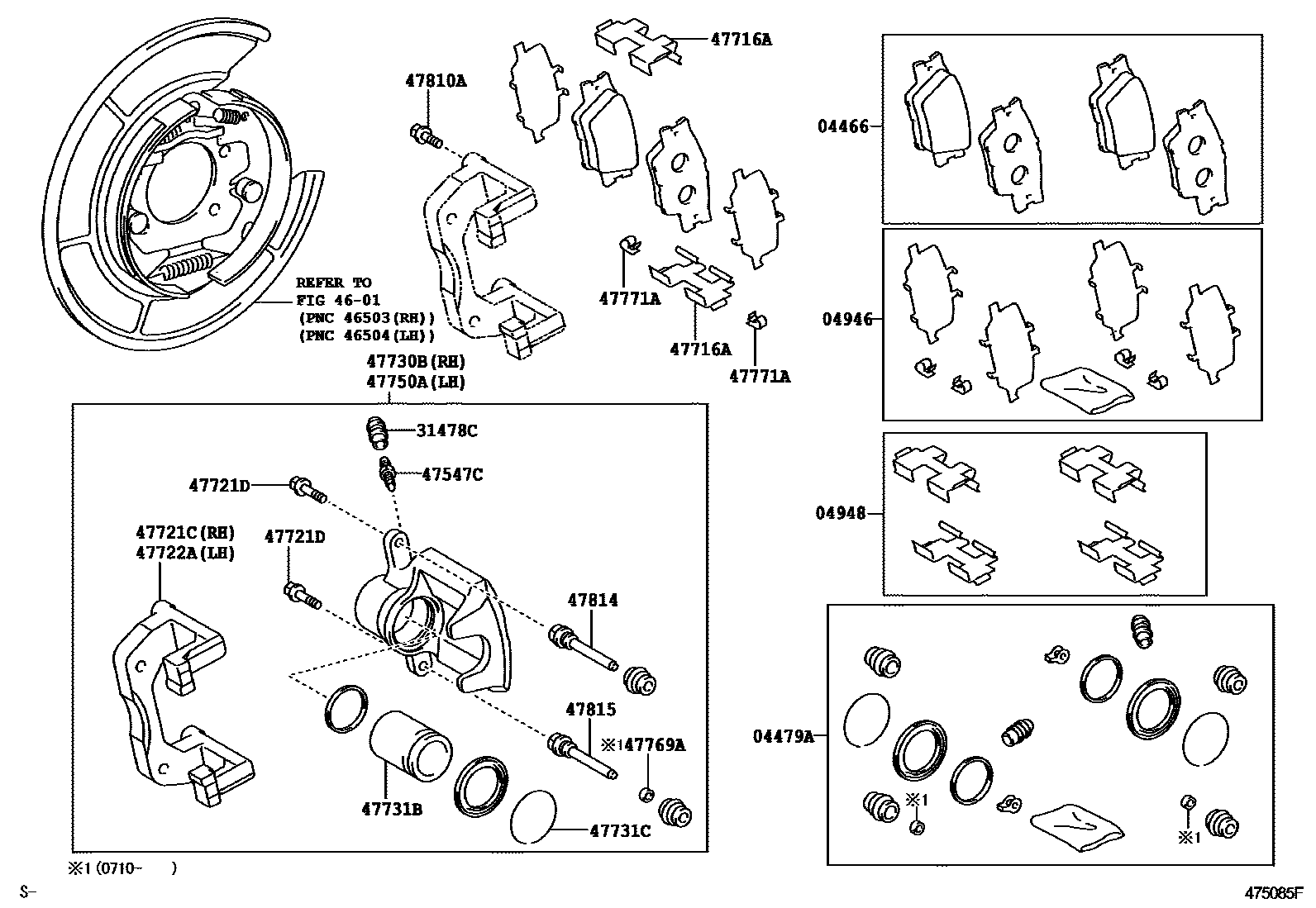

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33160iGSV40200605-200710

MARK NBK D6234

main04466-33180iGSV40200710-200908

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33240iGSV40200605-200710

main04479-33290iGSV40200710-200908

main04479-33350iACV40,GSV40201109

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33040iGSV40200605-200908

main04946-33060iACV40,GSV40201201-201205

04948FITTING KIT, DISC BRAKE, REAR

main04948-33030iGSV40200605-200710

main04948-33040iGSV40200710-200908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020×2iGSV40200605-200908

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iGSV40200605-200908

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-33210×4iGSV40200605-200710

main47816-33211×4iGSV40200710-200908

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-33210iGSV40200605-200710

main47821-33211iGSV40200710-200908

main47821-33240iACV40,GSV40201009-201109

main47821-33241iACV40,GSV40201109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164×4iGSV40200605-200908

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-33210iGSV40200605-200710

main47822-33211iGSV40200710-200908

main47822-33240iACV40,GSV40201009-201109

main47822-33241iACV40,GSV40201109

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-33210iGSV40200605-200710

main47830-33211iGSV40200710-200908

main47830-33240iACV40,GSV40201109

47731BPISTON, REAR DISC BRAKE

main47831-33210×2iGSV40200605-200908

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006×2iGSV40200605-200908

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33210iGSV40200605-200710

main47850-33211iGSV40200710-200908

main47850-33240iACV40,GSV40201109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33211×2iGSV40200710-200908

main47879-33240×2iACV40,GSV40201109

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030×4iGSV40200605-200908

main47771-72010×4iACV40,GSV40201201-201205

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4iGSV40200605-200908

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33210×2iGSV40200605-200908

main47814-33240×2iACV40,GSV40201109

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47814-33210×2iGSV40200605-200710

main47814-33211×2iGSV40200710-200908

main47815-33240×2iACV40,GSV40201109

20 parts on this diagram · 1 diagram in section
