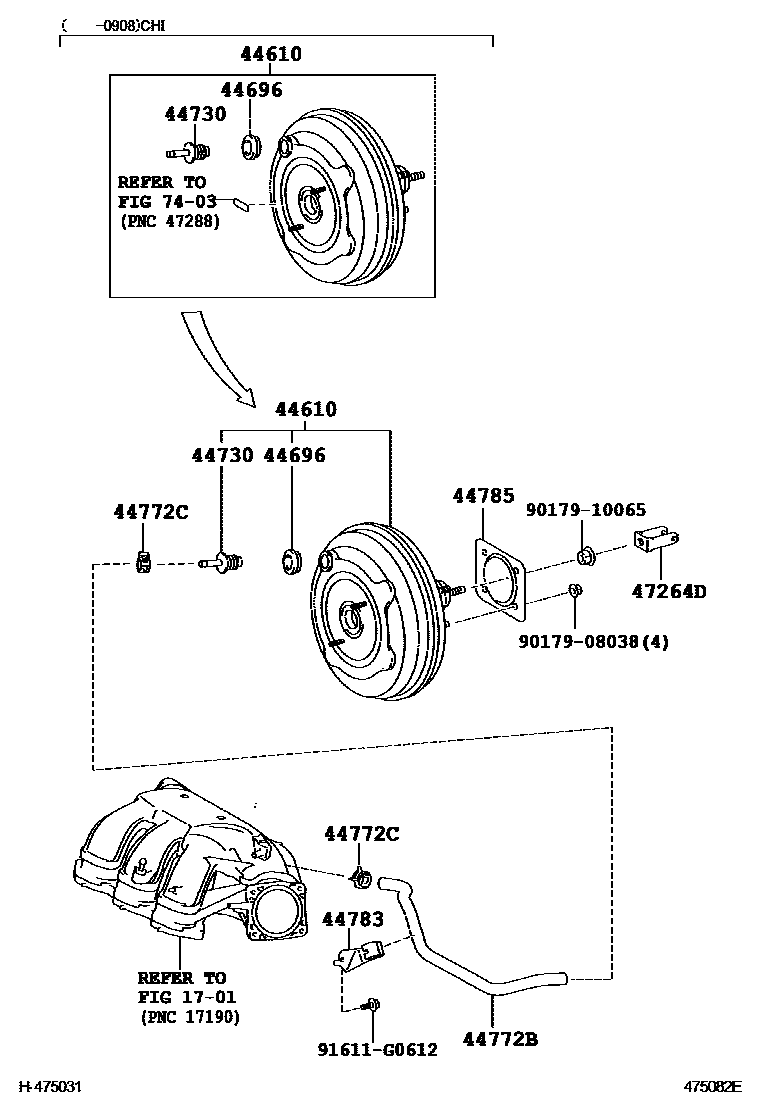

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-33680iGSV40..GCC200605-200801

main44610-33770iGSV40..CHI200607-200810

main44610-33771iGSV40..CHI200810-200908

main44610-33790iGSV40..GCC200802-200901

main44610-33791iGSV40..GCC200901-200908

44696GROMMET, CHECK VALVE

main90480-24015iGSV40200605-200908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iGSV40200605-200908

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33150iACV40200908

main44772-33170iGSV40200605-200908

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014×2iGSV40200605-200908

44783CLAMP, VACUUM HOSE

main44783-28010iACV40200908

main44783-33010iGSV40200908

44785GASKET, BRAKE BOOSTER

main44785-16020iGSV40200605-200908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSV40..CHI200607-200908

main47264-63020iGSV40..GCC200605-200908

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9017908038

main90179-08038

9017910065

main90179-10065

91611G0612

main91611-G0612

13 parts on this diagram · 2 diagrams in section
