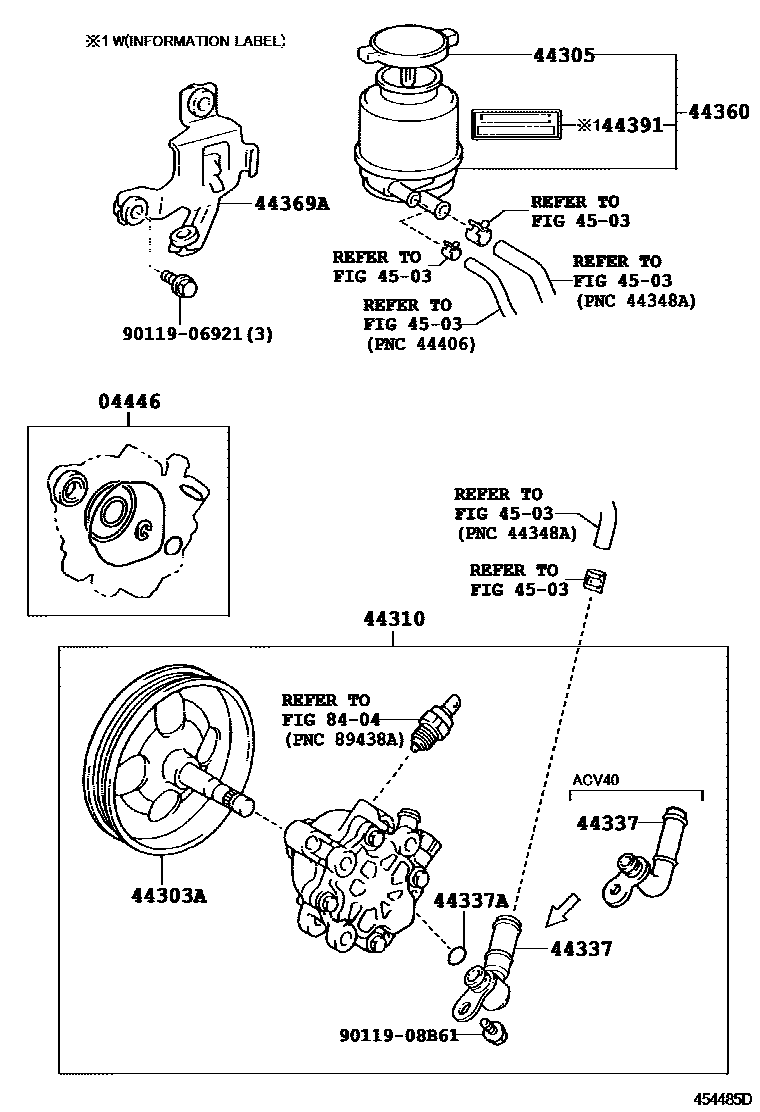

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGSV40200605-200908

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iGSV40200605-200908

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iGSV40200605-200801

main44305-28060iACV40,GSV40200908-201206

sub44305-28061

44310PUMP ASSY, VANE

main44310-33150iACV40200908

sub44310-33180

main44310-33170iGSV40200605-200908

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iACV40200908

main44337-58010iGSV40200605-200908

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACV40,GSV40200908

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-33040iACV40,GSV40200908

main44360-33070iGSV40..CHI201008

RUSSIA SPEC

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-33020iGSV40200605-200809

main44390-33021iGSV40200810-200908

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-33020iGSV40..CHI201008

RUSSIA SPEC

4503

8404

9011906921

main90119-06921

9011908B61

main90119-08B61

13 parts on this diagram · 1 diagram in section
