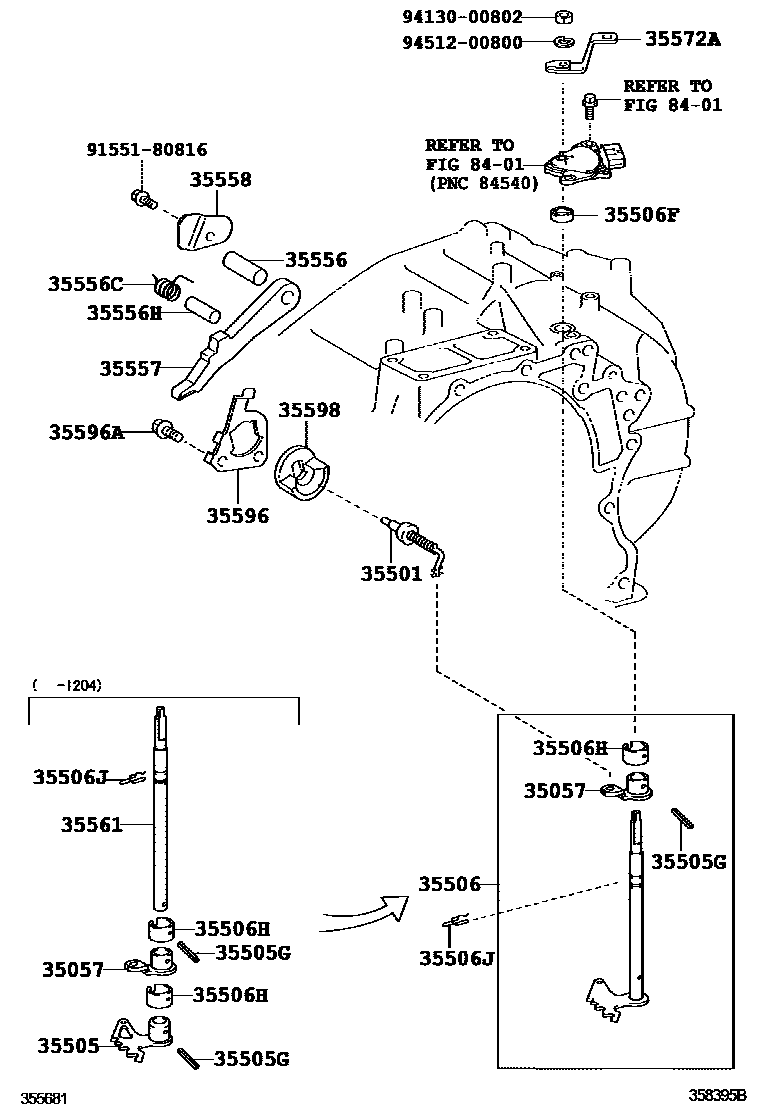

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U660E 0002 1U250E

35057LEVER SUB-ASSY,PARKING LOCK

main35057-33010iGSV40200605-200908

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV40200908

main35501-33020iGSV40200605-200908

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV40200908

main35505-33010iGSV40200605-200810

main35505-33011iGSV40200908-201204

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iGSV40201204

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33020iGSV40201204

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGSV40200605-200908

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006×2iGSV40200605-200908

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV40200908

main90524-09002iGSV40200605-200908

35556SHAFT, PARKING LOCK PAWL

main35556-28020iACV40200908

main35556-33010iGSV40200605-200908

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21007iGSV40200605-200908

35556HSHAFT, PARKING LOCK PAWL

main35556-63010iGSV40200605-200908

35557PAWL, PARKING LOCK

main35557-33020iGSV40200605-200908

main35557-33021iGSV40201203

main35590-32010iACV40200908

35558CLAMP, PAWL SHAFT

main35558-28020iACV40200908

main35558-33010iGSV40200605-200908

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV40200908

main35561-33020iGSV40200908-201204

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iGSV40200605-200908

main35572-33050iACV40200908-201206

35596PLATE, PAWL STOPPER

main35596-33010iGSV40200605-200908

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816×2iGSV40200605-200908

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iGSV40200605-200908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800
