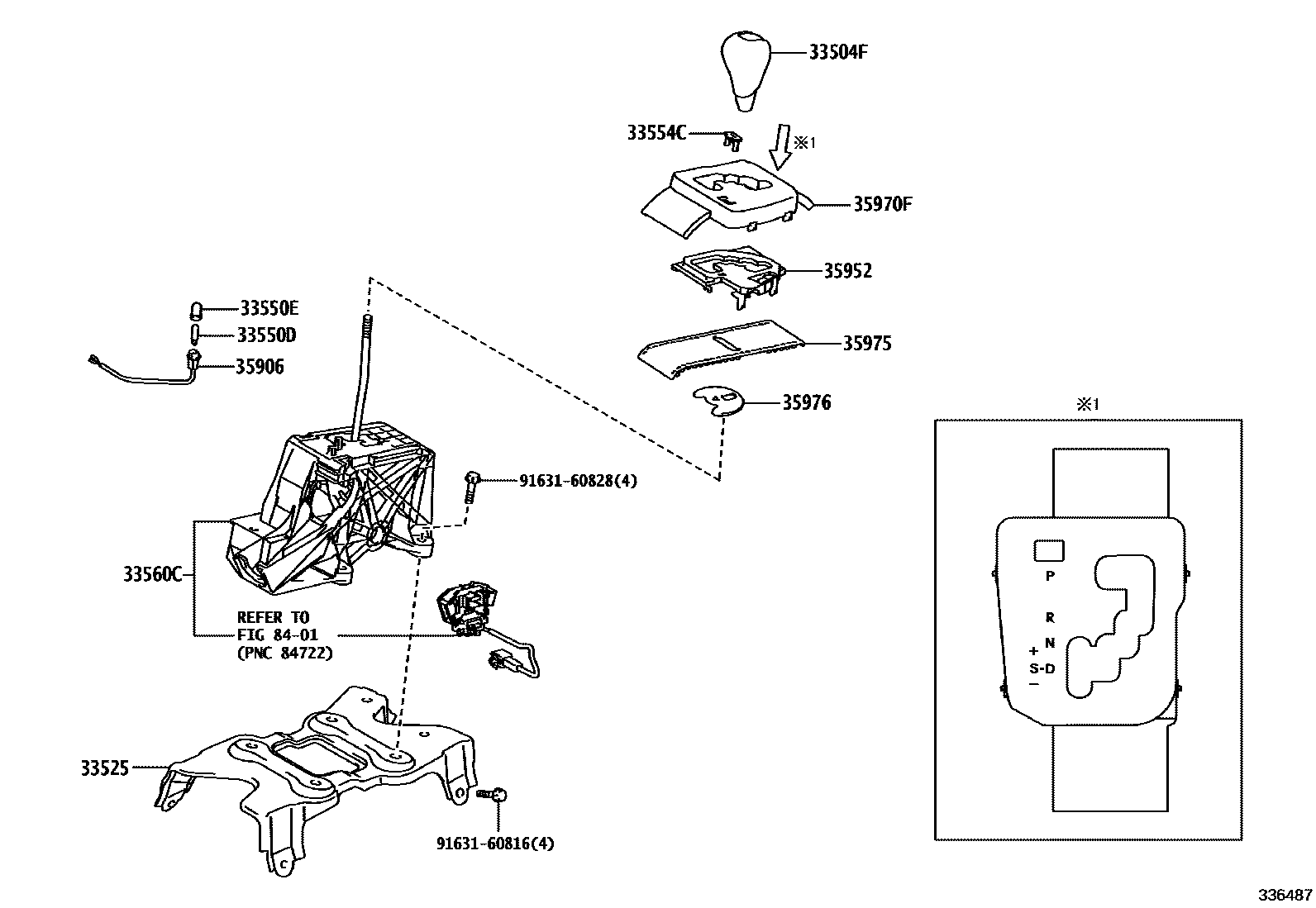

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,2#,SILVER PAINTED
ORCHID BROWN,TRIM0#,SILVER PAINTED
BLACK & MD.BROWN,TRIM1#,2#,WALNUT WOOD
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & MD.BROWN,TRIM1#,2#,WALNUT WOOD
STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN & MD.BROWN,TRIM00,WALNUT WOOD
ORCHID BROWN & MD.BROWN,TRIM00,WALNUT WOOD
BLACK & DK.BROWN,TRIM1#,2#,BIRDS EYE MAPLE WOOD
STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & DK.BROWN,TRIM1#,2#,BIRDS EYE MAPLE WOOD
ORCHID BROWN & DK.BROWN,TRIM01,BIRDS EYE MAPLE WOOD
STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN & DK.BROWN,TRIM01,BIRDS EYE MAPLE WOOD
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
14V 0.7W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560CLEVER ASSY, SHIFT, LOWER
35906WIRE SUB-ASSY, INDICATOR LAMP
35952LENS, POSITION INDICATOR
35970FHOUSING ASSY, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9163160816
main91631-60816
9163160828
main91631-60828
14 parts on this diagram · 3 diagrams in section
