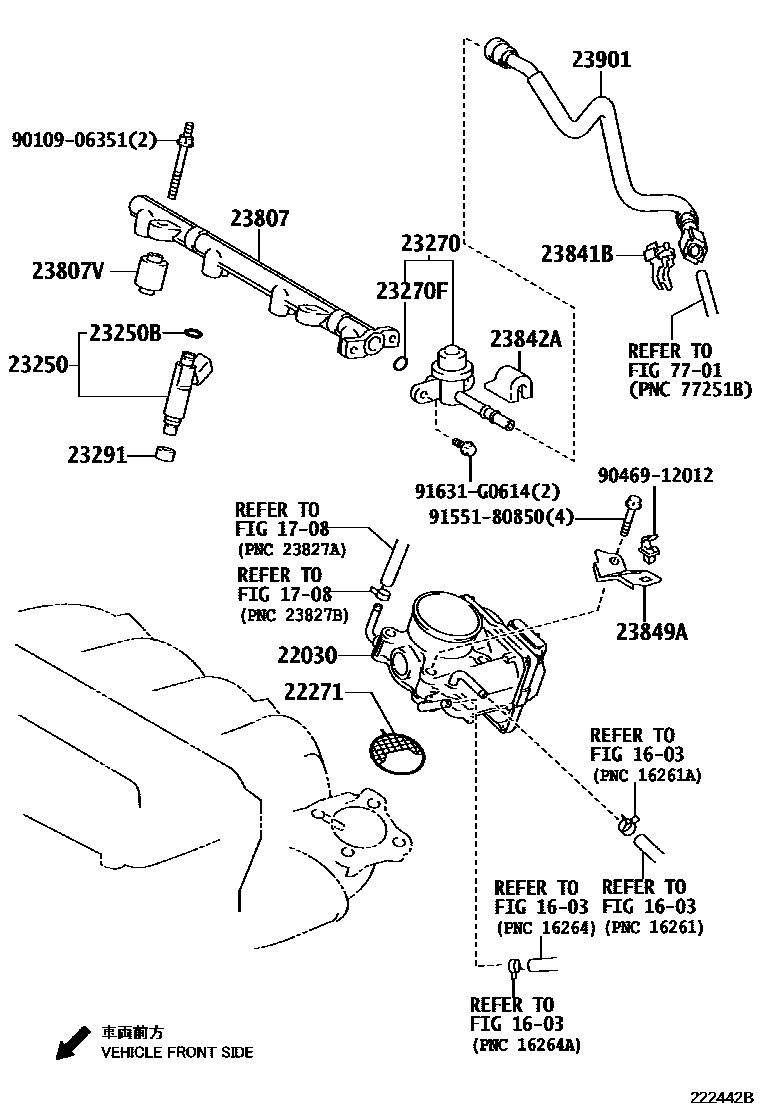

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28071i2AZFE..ACV40200908

main22030-31030i2GRFE..GSV40200605-200908

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSV40200908

main22271-75031i2AZFE..ACV40200908

23250INJECTOR ASSY, FUEL

main23209-28080×4i2AZFE..ACV40200908

main23209-31050×6i2GRFE..GSV40200605-200908

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSV40200605-200908

main90301-07037×4i2AZFE..ACV40200908

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28052i2AZFE..ACV40200908

main23270-31010i2GRFE..GSV40200605-200708

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACV40200908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSV40200605-200908

main23291-41010×4i2AZFE..ACV40200908-201206

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i2GRFE..GSV40200605-200708

main23807-31090i2GRFE..GSV40200908

main23814-28031i2AZFE..ACV40200908

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053×2i2AZFE..ACV40200908

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2AZFE..ACV40; 2GRFE..GSV40200908

main23841-28010i2GRFE..GSV40200605-200606

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AZFE..ACV40200908

main23842-31040i2GRFE..GSV40200605-200908

23849ASUPPORT, FUEL PIPE

main23849-28050i2AZFE..ACV40200908

23901TUBE SUB-ASSY, FUEL

main23901-28320i2AZFE..ACV40200908

main23901-31060i2GRFE..GSV40200605-200908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010906351

main90109-06351

9046912012

main90469-12012

9155180850

main91551-80850

91631G0614

main91631-G0614

20 parts on this diagram · 2 diagrams in section
