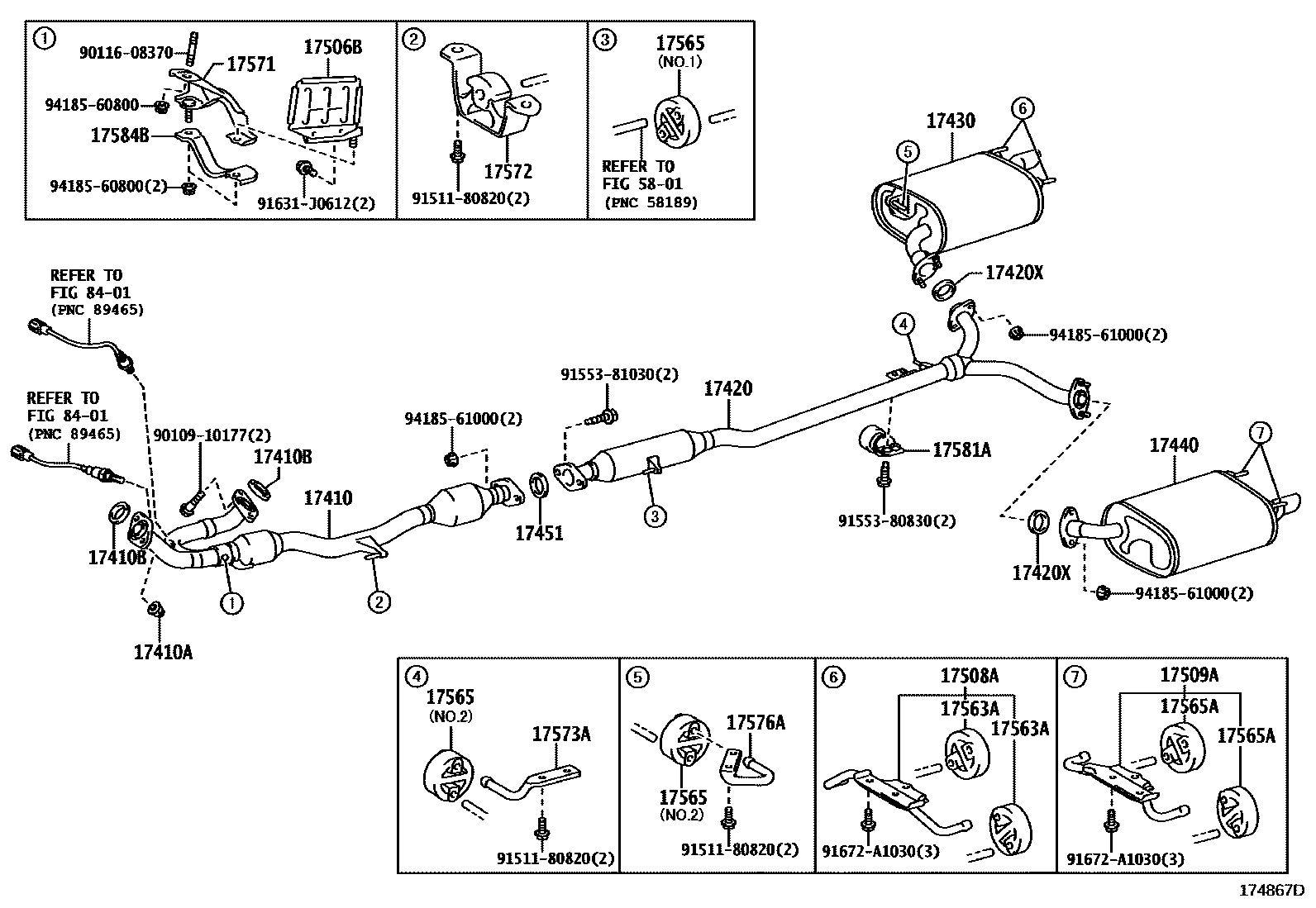

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/X18/Y
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17440PIPE, EXHAUST TAIL, LH
17451GASKET, EXHAUST PIPE
17506BBRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17581ADAMPER, EXHAUST PIPE
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5801FLOOR PAN & LOWER BACK PANEL
8401SWITCH & RELAY & COMPUTER
9010910177
main90109-10177
9011608370
main90116-08370
9151180820
main91511-80820
9155380830
main91553-80830
9155381030
main91553-81030
91631J0612
main91631-J0612
91672A1030
main91672-A1030
9418560800
main94185-60800
9418561000
main94185-61000
31 parts on this diagram · 2 diagrams in section
