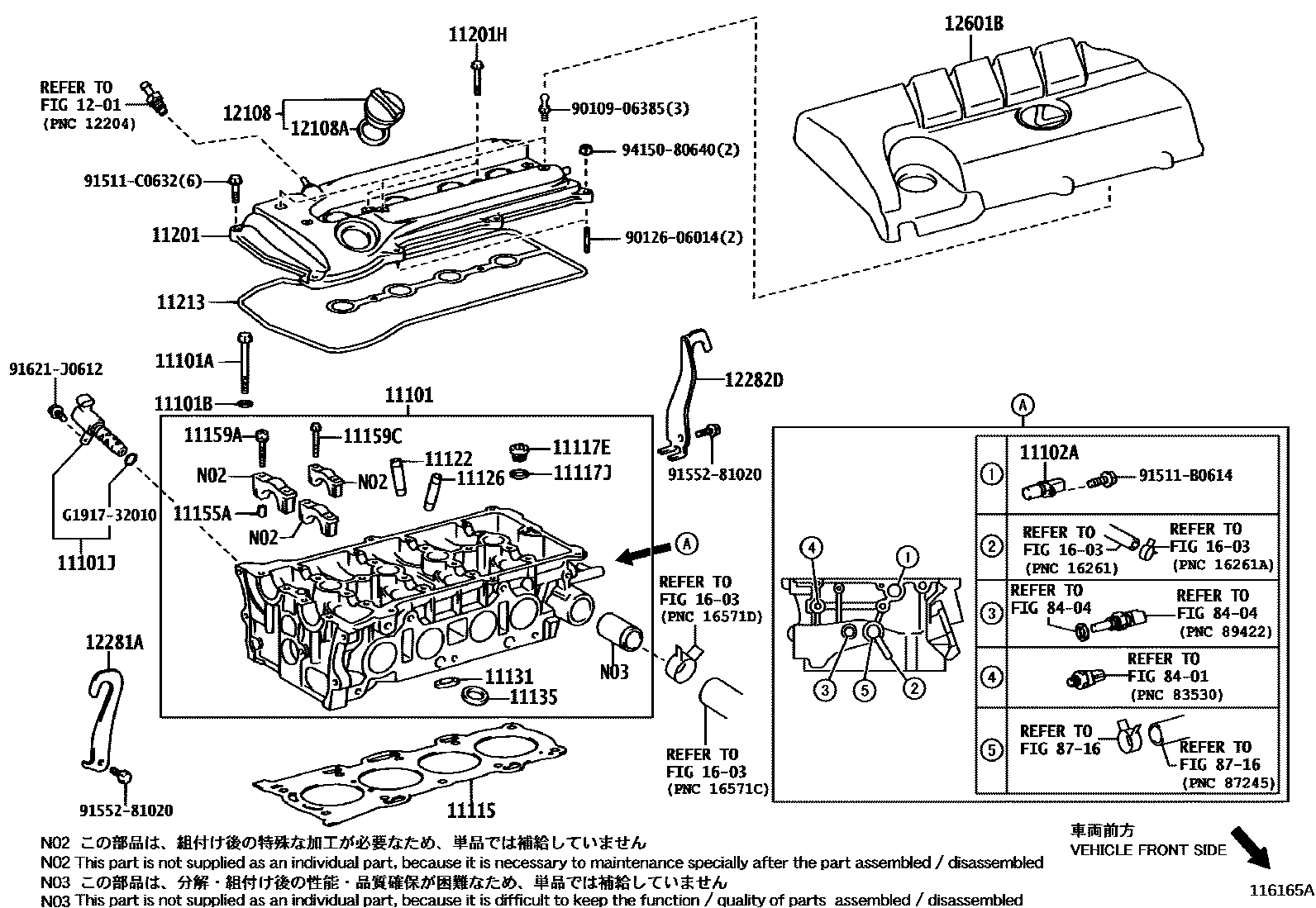

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
sub15330-28010
11102ASENSOR, CAMSHAFT POSITION
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD,(J)
STD
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD,(J)
STD
STD
O/S 0.03,(L)
O/S 0.03
O/S 0.03,(J)
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
(L)
(J)
12601BCOVER SUB-ASSY, ENGINE, NO.1
1603
8401
8404
8716
9010906385
main90109-06385
9012606014
main90126-06014
91511B0614
main91511-B0614
91511C0632
main91511-C0632
9155281020
main91552-81020
91621J0612
main91621-J0612
9415080640
main94150-80640
G191732010
mainG1917-32010
37 parts on this diagram · 3 diagrams in section
