ENGINE OVERHAUL GASKET KIT

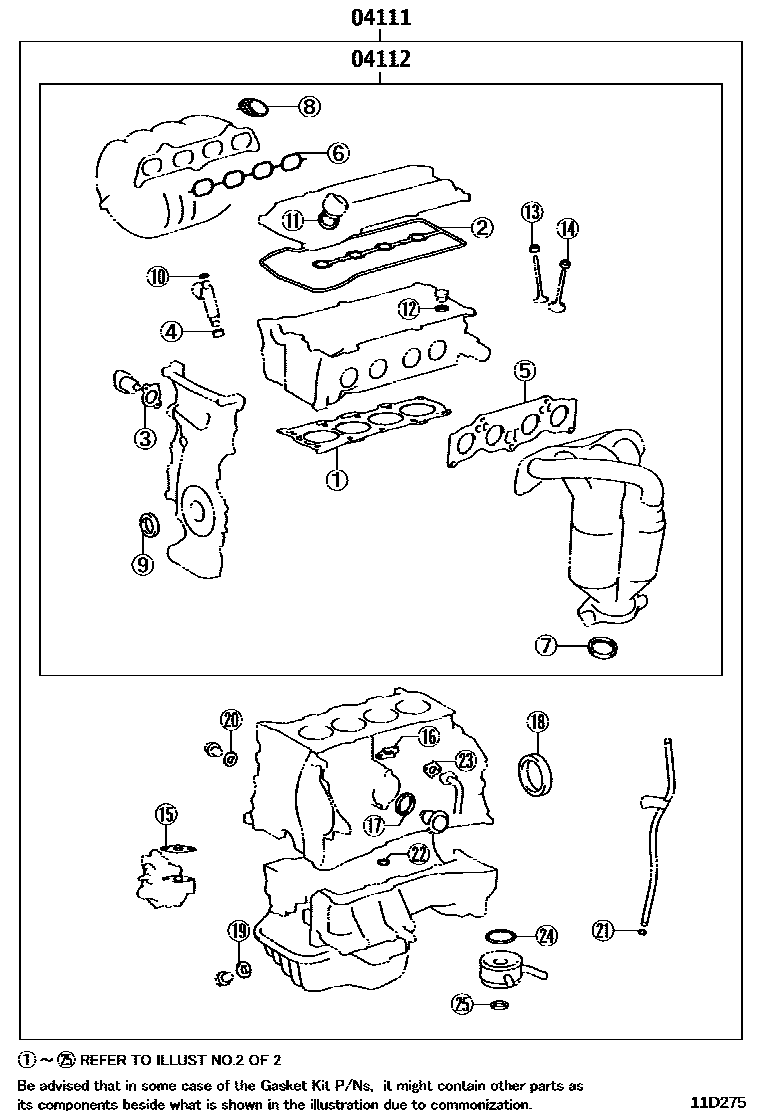

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28823i200908-201204

main04111-28824i201204-201206

main04111-31440i200607-200805

main04111-31441i200805-200811

main04111-31442i200811-200908

main04111-31443i201108-201112

main04111-31444i201112

main04111-31680i200605-200805

main04111-31681i200805-200811

main04111-31682i200908-201108

main04111-31683i201108

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28573i200908-201204

main04112-28574i201204-201206

main04112-31270i200605-200805

main04112-31271i200805-200811

main04112-31272i200811-200908

main04112-31273i201108-201112

main04112-31274i201112

main04112-31760i201108

2 parts on this diagram · 10 diagrams in section
