SHORT BLOCK ASSEMBLY

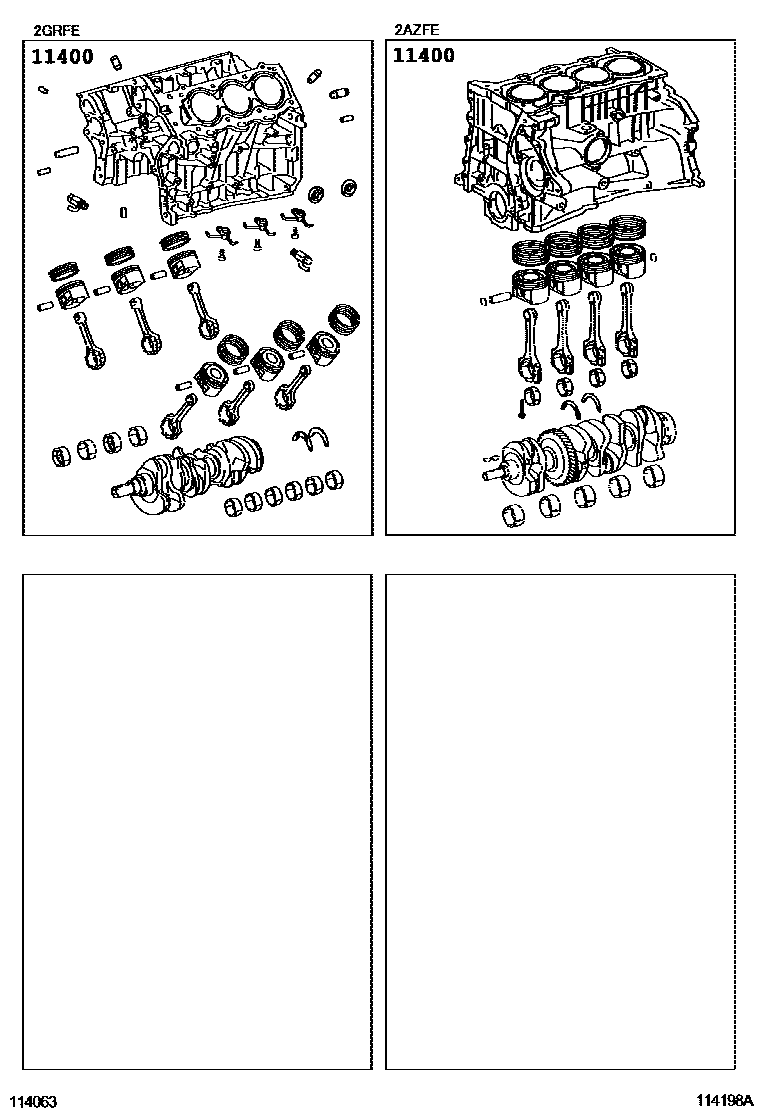

Parts diagram

11400BLOCK ASSY, SHORT

main11400-28400i200908-201206

main11400-31160i200605-200703

main11400-31161i200703-200905

main11400-31163i200905-200908

1 parts on this diagram · 1 diagram in section
