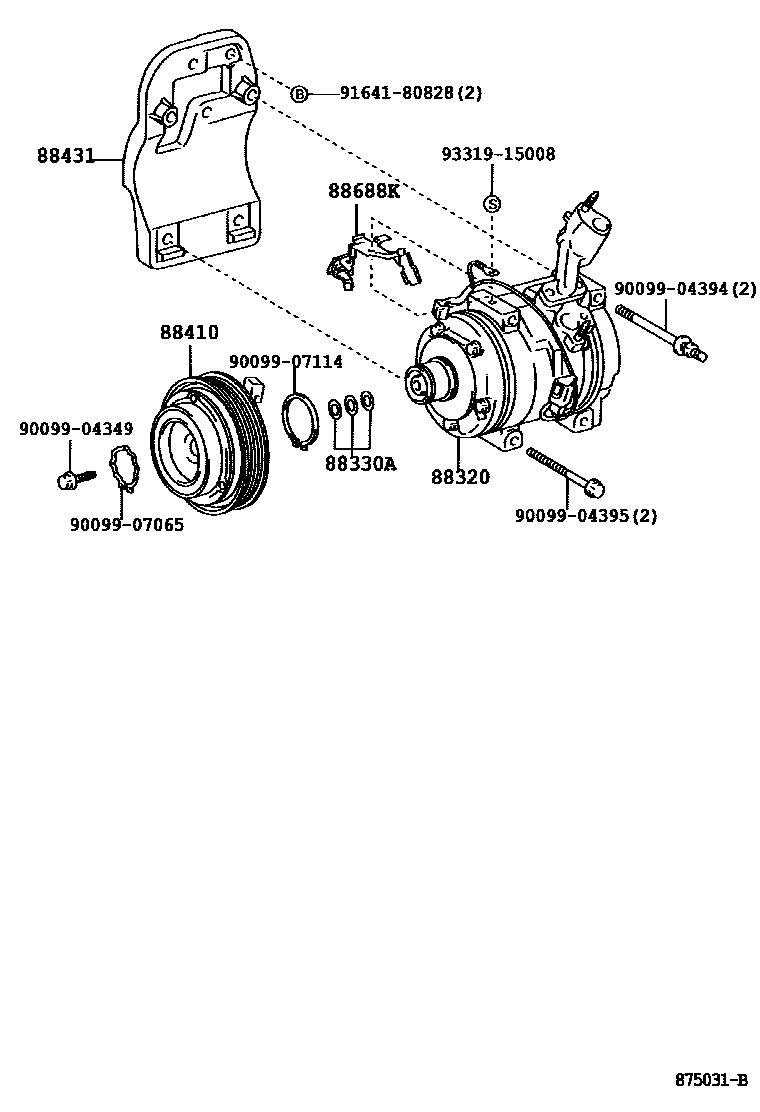

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-33150iMCV30..GCC200406

main88320-33160iMCV30..ARL200406

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCV30200107-200406

88410CLUTCH ASSY, MAGNET

main88410-33120iMCV30200107-200406

main88410-33140iMCV30200406-200508

main88410-33160iMCV30200509

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-33041iMCV30200107-200406

88688KBRACKET, COOLER COMPRESSOR

main88688-03030iMCV30..ARL200107-200406

main88688-07040iMCV30..GCC200107-200406

main88688-48110iMCV30..ARL200406

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
