HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

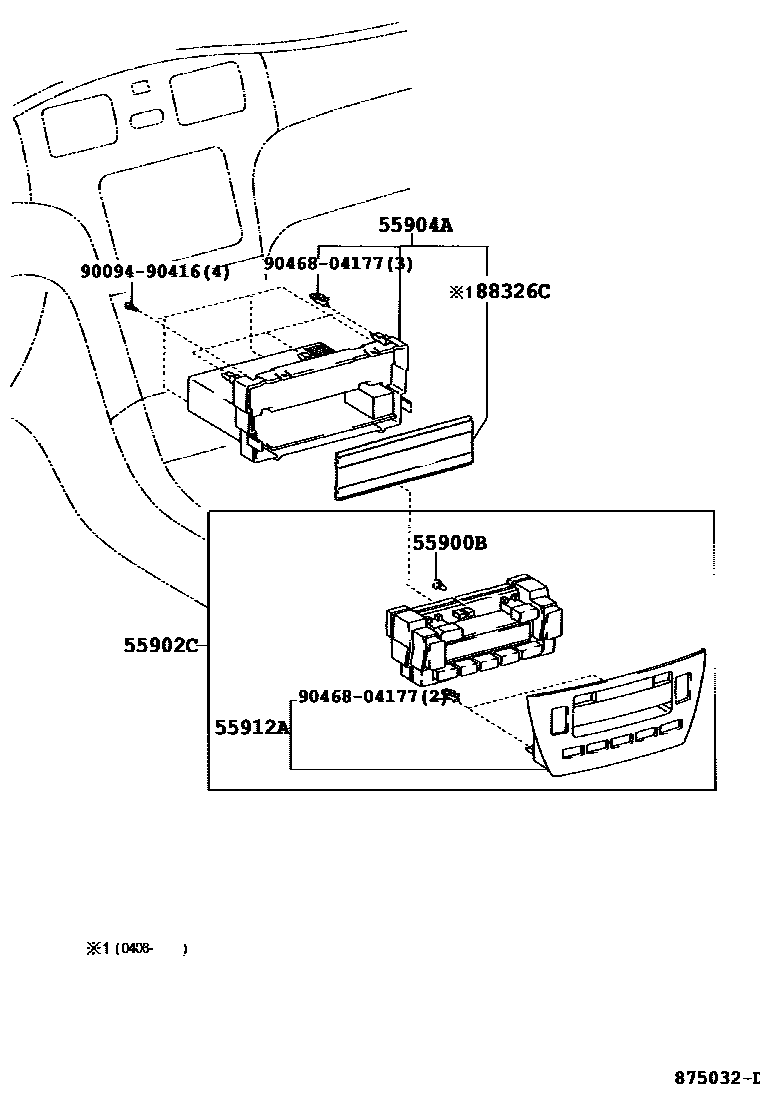

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

55900BBULB, AIR CONDITIONER CONTROL

main90010-03048×3iMCV30200406

14V 1.4W,LCD

main90010-03049×5iMCV30200406

14V 1.4W,KNOB

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33420iMCV30..GCC200107-200406

main55902-33450iMCV30..ARL200107-200406

W(SEAT HEATER)

main55902-33460iMCV30..ARL200107-200406

main55902-33470iMCV30..ARL200107-200112

SINGAPORE SPEC

main55902-33730iMCV30..GCC200406

W(CLIMATE CONTROL SEAT)

main55902-33740iMCV30..GCC200406

main55902-33770iMCV30..ARL200406

W(CLIMATE CONTROL SEAT & SEAT HEATER)

main55902-33780iMCV30..ARL200406

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33050iMCV30..GCC200406

main55904-33060iMCV30..ARL200107-200406

W(SEAT HEATER)

main55904-33070iMCV30..ARL200107-200406

main55904-33220iMCV30..GCC200406

W(CLIMATE CONTROL SEAT)

main55904-33230iMCV30..ARL200406

W(CLIMATE CONTROL SEAT & SEAT HEATER)

55912AHOUSING, HEATER CONTROL

main55912-33040iMCV30..ARL200107-200406

W(SEAT HEATER)

main55912-33050iMCV30200107-200406

main55912-33060iMCV30..ARL200107-200112

SINGAPORE SPEC

main55912-33410iMCV30200406

W(CLIMATE CONTROL SEAT)

main55912-33420iMCV30200406

88326CPLATE, COVER

main88326-26010iMCV30200406

9009490416

main90094-90416

9046804177

main90468-04177

7 parts on this diagram · 5 diagrams in section
