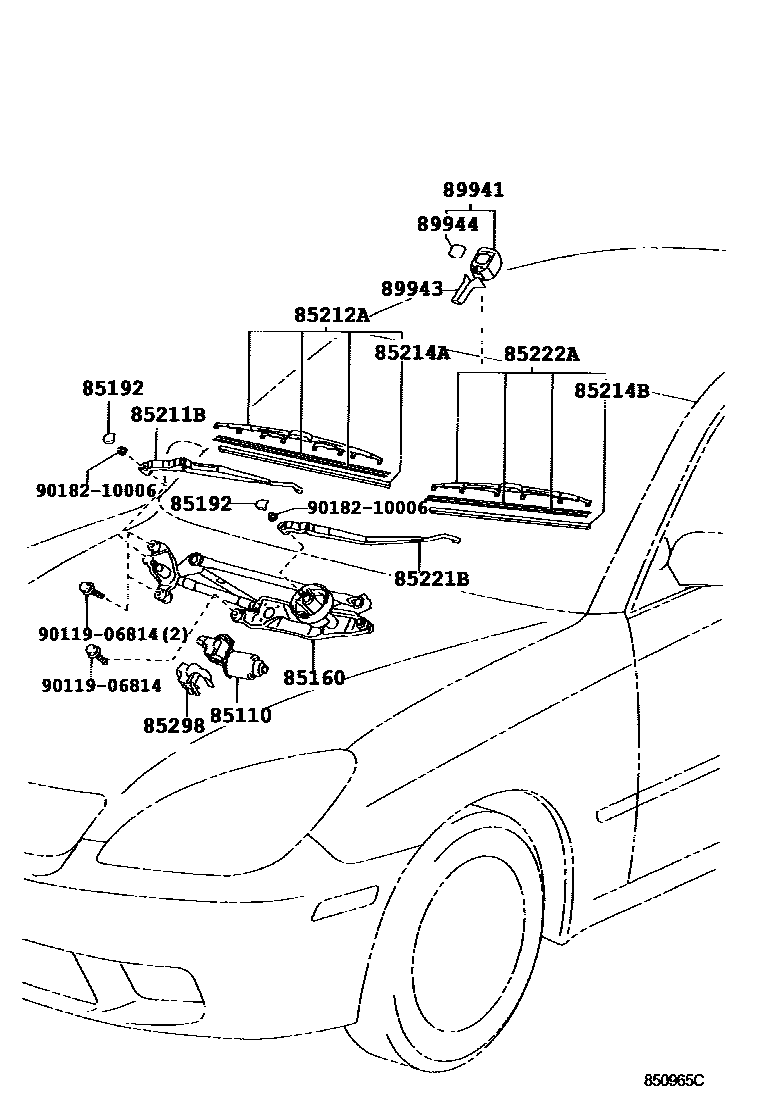

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33270iMCV30..GCC200107-200406

main85110-33280iMCV30..ARL200107-200406

85160LINK ASSY, WINDSHIELD WIPER

main85150-33190iMCV30..GCC200107-200406

main85150-33200iMCV30..ARL200406

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iMCV30200107-200406

85211BARM, FRONT WIPER, RH

main85211-33220iMCV30..GCC200406

main85211-33230iMCV30..ARL200406

85212ABLADE, FR WIPER, RH

main85212-24100iMCV30..ARL200410-200603

main85212-33190iMCV30..ARL200107-200410

main85212-33200iMCV30..GCC200107-200406

main85212-53060iMCV30..GCC200410-200603

85214ARUBBER, WIPER, RH

main85214-24050iMCV30..GCC200410-200603

main85214-50100iMCV30..ARL200410-200603

main85214-50120iMCV30..ARL200107-200406

main85214-53050iMCV30..GCC200406-200410

85214BRUBBER, WIPER, LH

main85214-24050iMCV30..ARL200410-200603

main85214-50100iMCV30..GCC200410-200603

main85214-50120iMCV30..GCC200107-200406

main85214-53050iMCV30..ARL200107-200406

85221BARM, FRONT WIPER, LH

main85221-33210iMCV30..GCC200406

main85221-33220iMCV30..ARL200107-200406

85222ABLADE, FR WIPER, LH

main85222-24080iMCV30..GCC200410-200603

main85222-24100iMCV30..ARL200410-200603

main85222-33190iMCV30..GCC200406-200410

main85222-43020iMCV30..ARL200406-200410

85298COVER, WIPER MOTOR

main85111-33010iMCV30..GCC200406

main85111-33020iMCV30..ARL200406

89941SENSOR, RAIN

main89941-33010iMCV30..ARL200210-200406

main89941-33011iMCV30..ARL200207-200210

89943COVER, RAIN SENSOR

main89943-33010iMCV30..ARL200107-200406

main89943-33030iMCV30..ARL200409

89944TAPE, RAIN SENSOR

main89944-33010iMCV30..ARL200107-200406

9011906814

main90119-06814

9018210006

main90182-10006

15 parts on this diagram · 2 diagrams in section
