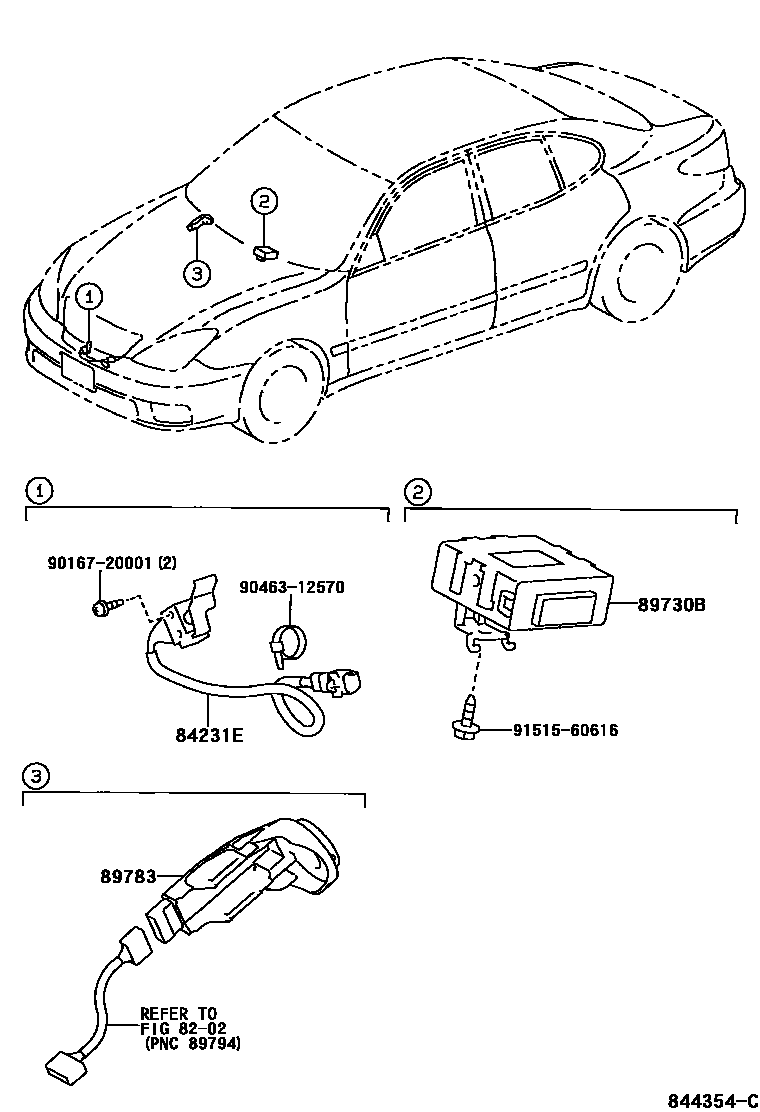

ANTI-THEFT DEVICE

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33090iMCV30..GCC200107-200406

main84231-33100iMCV30..ARL200107-200406

89730BCOMPUTER ASSY, THEFT WARNING

main89730-33150iMCV30200107-200406

89783AMPLIFIER, TRANSPONDER KEY

main89783-33090iMCV30200107-200205

main89783-33091iMCV30200205-200406

9016720001

main90167-20001

9046312570

main90463-12570

9151560616

main91515-60616

7 parts on this diagram · 2 diagrams in section
