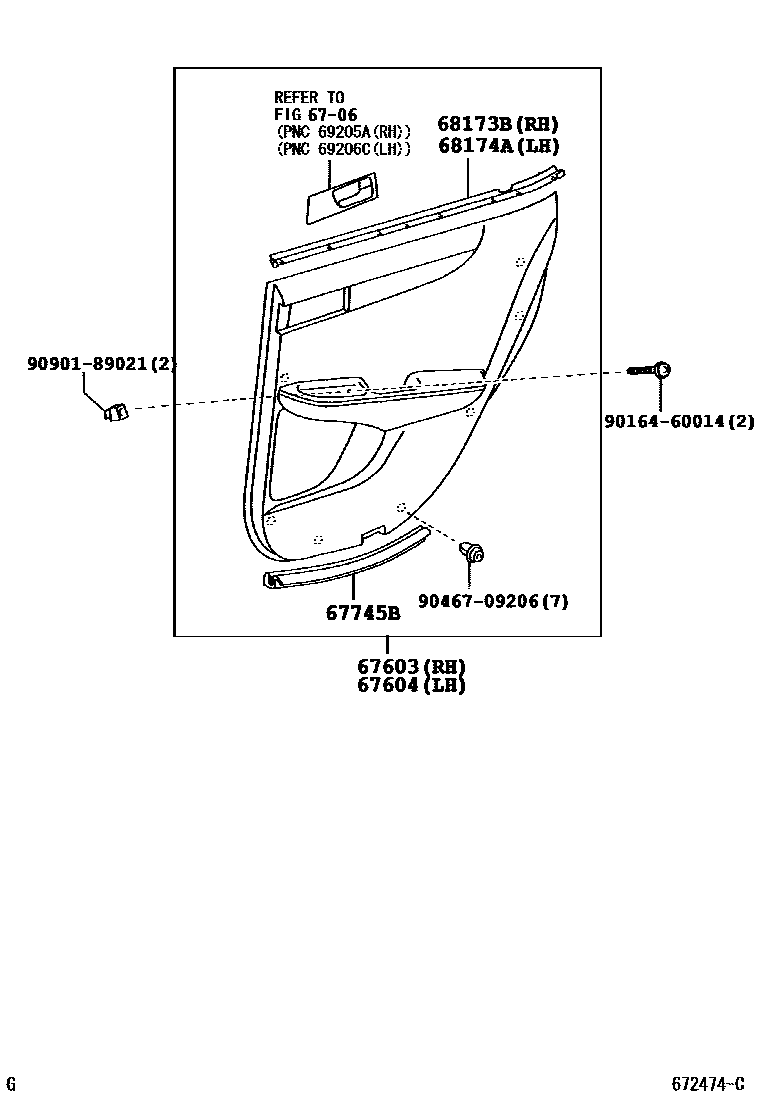

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-33670-A0iMCV30..GCC200107-200307

IVORY,TRIM0#

main67630-33670-B1iMCV30..GCC200107-200307

CHARCOAL,TRIM1#

main67630-33670-C1iMCV30..GCC200107-200307

BLACK,TRIM2#

main67630-33671-A0iMCV30..GCC200307-200402

IVORY,TRIM0#

main67630-33671-B1iMCV30..GCC200307-200402

CHARCOAL,TRIM1#

main67630-33671-C1iMCV30..GCC200307-200402

BLACK,TRIM2#

main67630-33672-A1iMCV30..GCC200402-200403

IVORY,TRIM0#

main67630-33672-B2iMCV30..GCC200402-200403

CHARCOAL,TRIM1#

main67630-33672-C2iMCV30..GCC200402-200403

BLACK,TRIM2#

main67630-33673-A0iMCV30..GCC200404-200406

IVORY,TRIM0#

main67630-33673-B1iMCV30..GCC200404-200406

CHARCOAL,TRIM1#

main67630-33673-C1iMCV30..GCC200404-200406

BLACK,TRIM2#

main67630-33680-A0iMCV30..ARL200107-200402

IVORY,TRIM0#

main67630-33680-B0iMCV30..ARL200107-200402

CHARCOAL,TRIM1#

main67630-33680-C1iMCV30..ARL200107-200402

BLACK,TRIM2#

main67630-33681-A1iMCV30..ARL200402-200403

IVORY,TRIM0#

main67630-33681-B1iMCV30..ARL200402-200403

CHARCOAL,TRIM1#

main67630-33681-C2iMCV30..ARL200402-200403

BLACK,TRIM2#

main67630-33682-A0iMCV30..ARL200404-200406

IVORY,TRIM0#

main67630-33682-B0iMCV30..ARL200404-200406

CHARCOAL,TRIM1#

main67630-33682-C1iMCV30..ARL200404-200406

BLACK,TRIM2#

main67630-33720-A2iMCV30..GCC200406-200603

IVORY,TRIM0#

main67630-33720-C2iMCV30..GCC200406-200603

BLACK,TRIM2#

main67630-33730-A2iMCV30..ARL200406-200603

IVORY,TRIM0#

main67630-33730-B2iMCV30..ARL200406-200603

GRAY,TRIM1#

main67630-33730-C2iMCV30..ARL200406-200603

BLACK,TRIM2#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-33670-A0iMCV30..GCC200107-200307

IVORY,TRIM0#

main67640-33670-B1iMCV30..GCC200107-200307

CHARCOAL,TRIM1#

main67640-33670-C1iMCV30..GCC200107-200307

BLACK,TRIM2#

main67640-33671-A0iMCV30..GCC200307-200402

IVORY,TRIM0#

main67640-33671-B1iMCV30..GCC200307-200402

CHARCOAL,TRIM1#

main67640-33671-C1iMCV30..GCC200307-200402

BLACK,TRIM2#

main67640-33672-A1iMCV30..GCC200402-200403

IVORY,TRIM0#

main67640-33672-B2iMCV30..GCC200402-200403

CHARCOAL,TRIM1#

main67640-33672-C2iMCV30..GCC200402-200403

BLACK,TRIM2#

main67640-33673-A0iMCV30..GCC200404-200406

IVORY,TRIM0#

main67640-33673-B1iMCV30..GCC200404-200406

CHARCOAL,TRIM1#

main67640-33673-C1iMCV30..GCC200404-200406

BLACK,TRIM2#

main67640-33680-A0iMCV30..ARL200107-200402

IVORY,TRIM0#

main67640-33680-B0iMCV30..ARL200107-200402

CHARCOAL,TRIM1#

main67640-33680-C1iMCV30..ARL200107-200402

BLACK,TRIM2#

main67640-33681-A1iMCV30..ARL200402-200403

IVORY,TRIM0#

main67640-33681-B1iMCV30..ARL200402-200403

CHARCOAL,TRIM1#

main67640-33681-C2iMCV30..ARL200402-200403

BLACK,TRIM2#

main67640-33682-A0iMCV30..ARL200404-200406

IVORY,TRIM0#

main67640-33682-B0iMCV30..ARL200404-200406

CHARCOAL,TRIM1#

main67640-33682-C1iMCV30..ARL200404-200406

BLACK,TRIM2#

main67640-33720-A2iMCV30..GCC200406-200603

IVORY,TRIM0#

main67640-33720-C2iMCV30..GCC200406-200603

BLACK,TRIM2#

main67640-33730-A2iMCV30..ARL200406-200603

IVORY,TRIM0#

main67640-33730-B2iMCV30..ARL200406-200603

GRAY,TRIM1#

main67640-33730-C2iMCV30..ARL200406-200603

BLACK,TRIM2#

67745BSEAL, REAR DOOR TRIM, RH

main67745-33021×4iMCV30200402-200406

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-33050iMCV30200107-200406

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-33040iMCV30200107-200406

9016460014

main90164-60014

9046709206

main90467-09206

9090189021

main90901-89021

9 parts on this diagram · 3 diagrams in section
