6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-33100i200107-200406

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-33100i200107-200406

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-33A50-A2i200406-200603

IVORY,TRIM0#

main67610-33A50-B2i200406-200603

GRAY,TRIM1#

main67610-33A50-C2i200406-200603

BLACK,TRIM2#

main67610-33A60-A2i200406-200603

IVORY,TRIM0#

main67610-33A60-C2i200406-200603

BLACK,TRIM2#

main67610-33A70-A2i200406-200603

W(SEAT MEMORY SWITCH),IVORY,TRIM0#

main67610-33A70-B2i200406-200603

W(SEAT MEMORY SWITCH),GRAY,TRIM1#

main67610-33A70-C2i200406-200603

W(SEAT MEMORY SWITCH),BLACK,TRIM2#

main67610-3T050-A0i200107-200307

IVORY,TRIM0#

main67610-3T050-B1i200107-200307

CHARCOAL,TRIM1#

main67610-3T050-C2i200107-200307

BLACK,TRIM2#

main67610-3T051-A0i200307-200402

IVORY,TRIM0#

main67610-3T051-B1i200307-200402

CHARCOAL,TRIM1#

main67610-3T051-C2i200307-200402

BLACK,TRIM2#

main67610-3T052-A1i200402-200403

IVORY,TRIM0#

main67610-3T052-B2i200404-200406

CHARCOAL,TRIM1#

main67610-3T052-C3i200402-200403

BLACK,TRIM2#

main67610-3T070-A0i200107-200402

IVORY,TRIM0#

main67610-3T070-B0i200107-200402

CHARCOAL,TRIM1#

main67610-3T070-C2i200107-200402

BLACK,TRIM2#

main67610-3T071-A1i200402-200403

IVORY,TRIM0#

main67610-3T071-B1i200402-200403

CHARCOAL,TRIM1#

main67610-3T071-C3i200404-200406

BLACK,TRIM2#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-33A40-A2i200406-200603

W(SEAT MEMORY SWITCH),IVORY,TRIM0#

main67620-33A40-B2i200406-200603

W(SEAT MEMORY SWITCH),GRAY,TRIM1#

main67620-33A40-C2i200406-200603

W(SEAT MEMORY SWITCH),BLACK,TRIM2#

main67620-33A50-A2i200406-200603

IVORY,TRIM0#

main67620-33A50-C2i200406-200603

BLACK,TRIM2#

main67620-33A60-A2i200406-200603

IVORY,TRIM0#

main67620-33A60-B2i200406-200603

GRAY,TRIM1#

main67620-33A60-C2i200406-200603

BLACK,TRIM2#

main67620-3T050-A0i200107-200307

IVORY,TRIM0#

main67620-3T050-C2i200107-200307

BLACK,TRIM2#

main67620-3T051-A0i200307-200402

IVORY,TRIM0#

main67620-3T051-C2i200307-200402

BLACK,TRIM2#

main67620-3T052-A1i200402-200403

IVORY,TRIM0#

main67620-3T052-C3i200402-200403

BLACK,TRIM2#

main67620-3T060-A0i200107-200307

W(SEAT MEMORY SWITCH),IVORY,TRIM0#

main67620-3T060-B1i200107-200307

W(SEAT MEMORY SWITCH),CHARCOAL,TRIM1#

main67620-3T060-C1i200107-200307

W(SEAT MEMORY SWITCH),BLACK,TRIM2#

main67620-3T061-A0i200307-200402

W(SEAT MEMORY SWITCH),IVORY,TRIM0#

main67620-3T061-B1i200307-200402

W(SEAT MEMORY SWITCH),CHARCOAL,TRIM1#

main67620-3T061-C1i200307-200402

W(SEAT MEMORY SWITCH),BLACK,TRIM2#

main67620-3T062-A1i200402-200403

W(SEAT MEMORY SWITCH),IVORY,TRIM0#

main67620-3T062-B2i200404-200406

W(SEAT MEMORY SWITCH),CHARCOAL,TRIM1#

main67620-3T062-C2i200404-200406

W(SEAT MEMORY SWITCH),BLACK,TRIM2#

main67620-3T080-A0i200107-200402

IVORY,TRIM0#

main67620-3T080-B0i200107-200402

CHARCOAL,TRIM1#

main67620-3T080-C2i200107-200402

BLACK,TRIM2#

main67620-3T081-A1i200404-200406

IVORY,TRIM0#

main67620-3T081-B1i200404-200406

CHARCOAL,TRIM1#

main67620-3T081-C3i200404-200406

BLACK,TRIM2#

67743CSEAL, FRONT DOOR TRIM

main67743-33021×2i200402-200406

main67743-33030-A0×2i200107-200402

IVORY,TRIM0#

main67743-33030-B0×2i200107-200402

MD.CHARCOAL,TRIM1#

main67743-33030-C0×2i200107-200402

BLACK,TRIM2#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-33050i200107-200406

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-33060i200107-200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8602SPEAKER

→ Go to FIG 86-02

6777132120WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32120

9016460014

main90164-60014

9046709206

main90467-09206

9046805106

main90468-05106

9090189021

main90901-89021

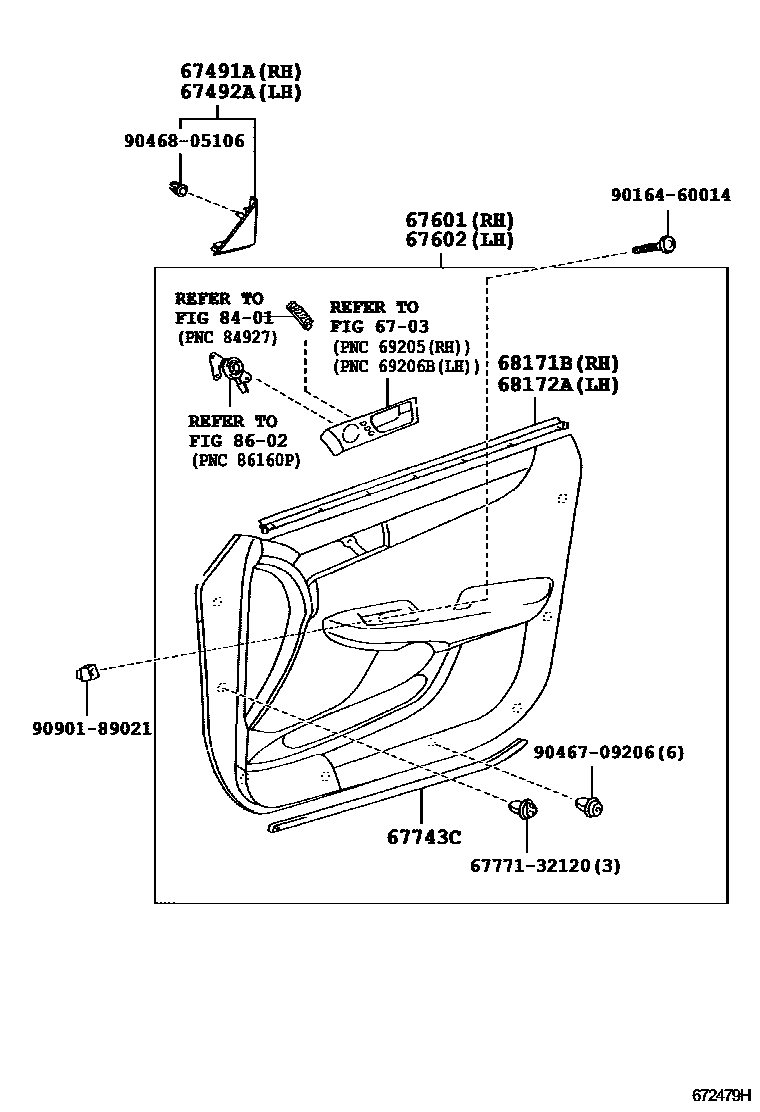

FRONT DOOR PANEL & GLASS
