E
EPC Data

ROOF HEADLINING & SILENCER PAD

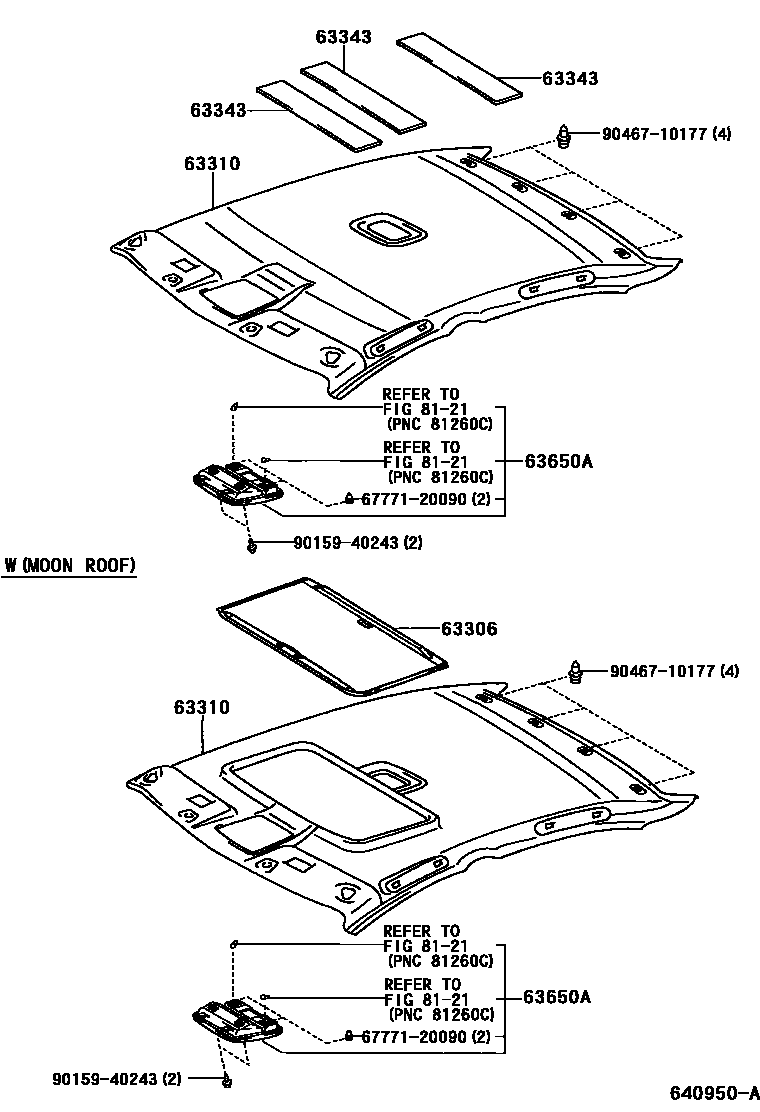

Parts diagram
63306TRIM SUB-ASSY, SUNSHADE
main63306-33080-A0i200107-200406
IVORY,TRIM0#
main63306-33080-A1i200406-200603
IVORY,TRIM0#
main63306-33080-B0i200107-200406
MEDIUM CHACOAL,TRIM1#
main63306-33080-B1i200107-200406
LT.GRAY,TRIM2#
main63306-33080-B2i200406-200603
LT.GRAY,TRIM1#,2#
63310HEADLINING ASSY, ROOF
main63310-33440-A0i200107-200404
W(MOON ROOF),IVORY,TRIM0#
main63310-33440-B0i200107-200404
W(MOON ROOF),MEDIUM CHACOAL,TRIM1#
main63310-33440-B1i200107-200404
W(MOON ROOF),LT.GRAY,TRIM2#
main63310-33441-A0i200404-200406
W(MOON ROOF),IVORY,TRIM0#
main63310-33441-A1i200406-200603
W(MOON ROOF),IVORY,TRIM0#
main63310-33441-B0i200404-200406
W(MOON ROOF),MEDIUM CHACOAL,TRIM1#
main63310-33441-B1i200404-200406
W(MOON ROOF),LT.GRAY,TRIM2#
main63310-33441-B2i200406-200603
W(MOON ROOF),LT.GRAY,TRIM1#,2#
main63310-33450-A0i200107-200403
W(MOON ROOF),IVORY,TRIM0#
main63310-33450-B0i200107-200403
W(MOON ROOF),MEDIUM CHACOAL,TRIM1#
main63310-33450-B1i200107-200403
W(MOON ROOF),LT.GRAY,TRIM2#
main63310-33451-A0i200403-200406
W(MOON ROOF),IVORY,TRIM0#
main63310-33451-A1i200406-200603
W(MOON ROOF),IVORY,TRIM0#
main63310-33451-B0i200403-200406
W(MOON ROOF),MEDIUM CHACOAL,TRIM1#
main63310-33451-B1i200403-200406
W(MOON ROOF),LT.GRAY,TRIM2#
main63310-33451-B2i200406-200603
W(MOON ROOF),LT.GRAY,TRIM1#,2#
main63310-33470-A0i200107-200311
IVORY,TRIM0#
main63310-33470-B0i200308-200311
MEDIUM CHACOAL,TRIM1#
main63310-33470-B1i200107-200311
LT.GRAY,TRIM2#
main63310-33471-A0i200311-200406
IVORY,TRIM0#
main63310-33471-A1i200406-200603
IVORY,TRIM0#
main63310-33471-B0i200311-200406
MEDIUM CHACOAL,TRIM1#
main63310-33471-B1i200311-200406
LT.GRAY,TRIM2#
main63310-33471-B2i200406-200603
LT.GRAY,TRIM1#,2#
63343PAD, ROOF SILENCER, NO.3
main63343-33110×3i200107-200406
63650ABOX ASSY, ROOF CONSOLE
main63650-33040-A0i200107-200406
IVORY,TRIM0#
main63650-33040-A1i200406-200603
IVORY,TRIM0#
main63650-33040-B0i200107-200406
LT.GRAY,TRIM2#
main63650-33040-B1i200107-200406
MD.CHARCOAL,TRIM1#
main63650-33040-B2i200406-200603
GRAY,TRIM1#,2#
main63650-33050-A0i200107-200406
W(MOON ROOF),IVORY,TRIM0#
main63650-33050-A1i200406-200603
W(MOON ROOF),IVORY,TRIM0#
main63650-33050-B0i200107-200406
W(MOON ROOF),LT.GRAY,TRIM2#
main63650-33050-B1i200107-200406
W(MOON ROOF),MD.CHARCOAL,TRIM1#
main63650-33050-B2i200406-200603
W(MOON ROOF),GRAY,TRIM1#,2#
8121INTERIOR LAMP
→ Go to FIG 81-21
6777120090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20090
9015940243
main90159-40243
9046710177
main90467-10177

8 parts on this diagram · 1 diagram in section
