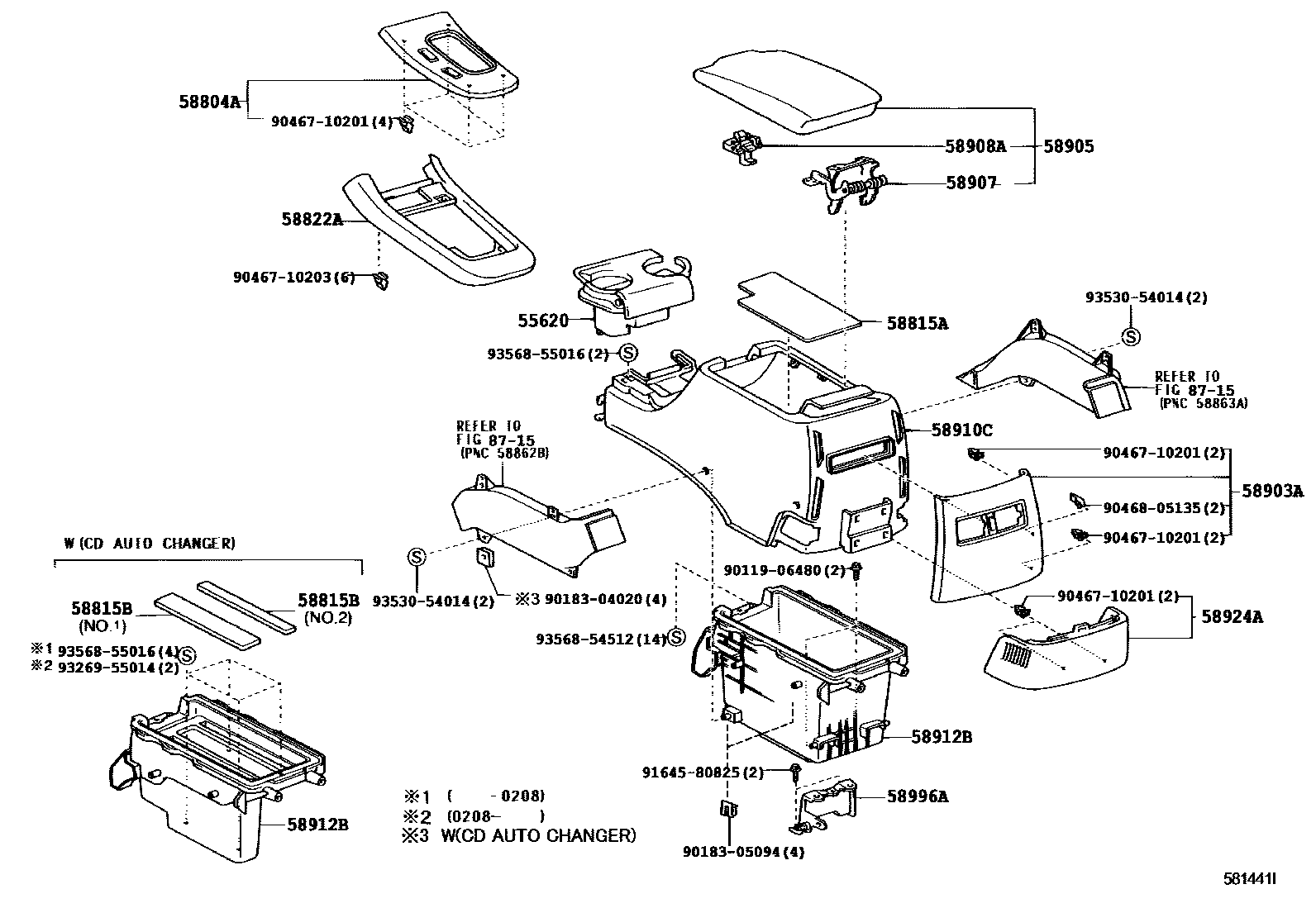

CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
REDDISH BROWN,TRIM2#
LIGHTBROWN,TRIM0#,1#
REDDISH BROWN,TRIM2#
LIGHT BROWN,TRIM0#,1#
58815ACARPET, CONSOLE BOX
58815BCARPET, CONSOLE BOX
NO.1
NO.2
58822APANEL, CONSOLE, UPPER REAR
IVORY,TRIM0#
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
IVORY,TRIM0#
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
LEATHER,IVORY,TRIM0#
LEATHER,CHARCOAL,TRIM1#
LEATHER,BLACK,TRIM2#
LEATHER,IVORY,TRIM0#
LEATHER,NEW IVORY,TRIM0#
LEATHER,CHARCOAL,TRIM1#
LEATHER,NEW GRAY,TRIM1#
LEATHER,BLACK,TRIM2#
LEATHER,BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
W(LEATHER TRIM)
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
IVORY,TRIM0#
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
58912BBOX, REAR CONSOLE, LOWER
W(CD AUTO CHANGER)
58924APANEL, CONSOLE REAR END, NO.2
IVORY,TRIM0#
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9011906480
main90119-06480
9018304020
main90183-04020
9018305094
main90183-05094
9046710201
main90467-10201
9046710203
main90467-10203
9046805135
main90468-05135
9164580825
main91645-80825
9326955014
main93269-55014
9353054014
main93530-54014
9356854512
main93568-54512
9356855016
main93568-55016
25 parts on this diagram · 1 diagram in section
