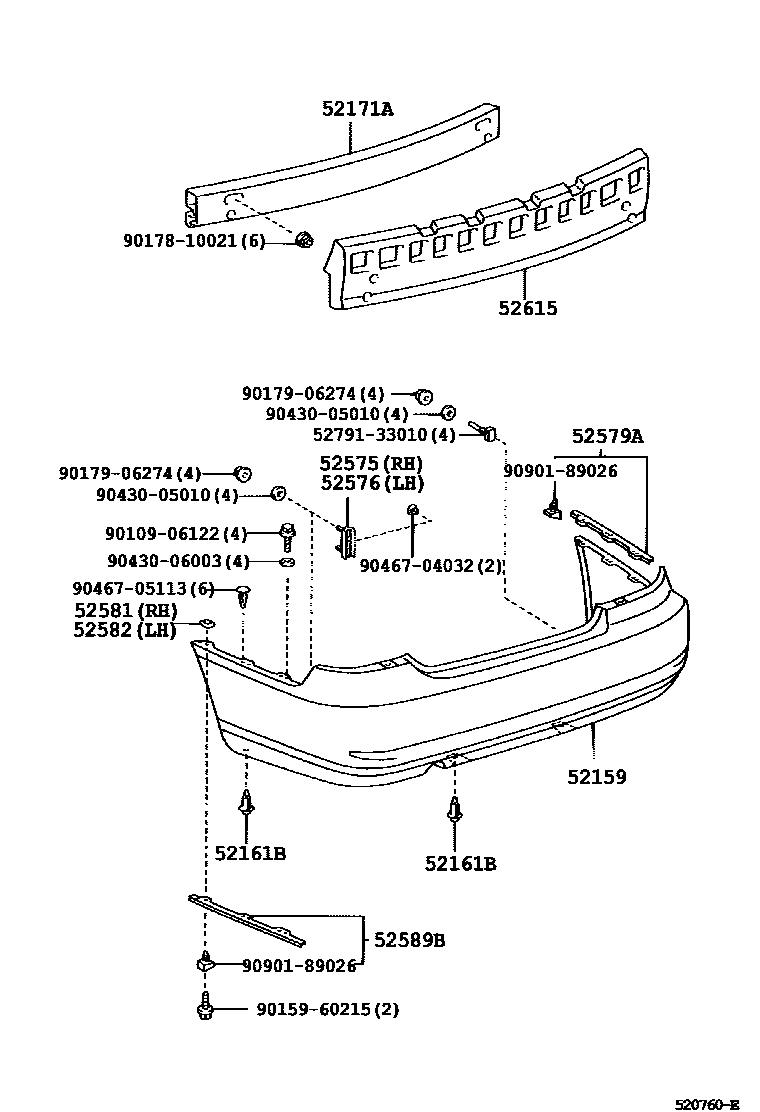

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-33911iMCV30200107-200406

52161BPIECE, REAR BUMPER

main52161-16010×4iMCV30200107-200406

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-33090iMCV30200107-200406

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33090iMCV30200107-200406

52576RETAINER, REAR BUMPER SIDE, LH

main52575-33090iMCV30200107-200406

52579ARETAINER, REAR BUMPER SIDE, NO.3 RH

main52579-33050iMCV30200107-200406

52581PROTECTOR, REAR BUMPER, RH

main52581-51010iMCV30200107-200406

52582PROTECTOR, REAR BUMPER, LH

main52581-51010iMCV30200107-200406

52589BRETAINER, REAR BUMPER SIDE, NO.3 LH

main52589-33040iMCV30200107-200406

52615ABSORBER, REAR BUMPER ENERGY

main52615-33100iMCV30200107-200202

main52615-33101iMCV30200202-200406

5279133010BOLT, BUMPER MOULDING SET, NO.1

main52791-33010

9010906122

main90109-06122

9015960215

main90159-60215

9017810021

main90178-10021

9017906274

main90179-06274

9043005010

main90430-05010

9043006003

main90430-06003

9046704032

main90467-04032

9046705113

main90467-05113

9090189026

main90901-89026

20 parts on this diagram · 1 diagram in section
