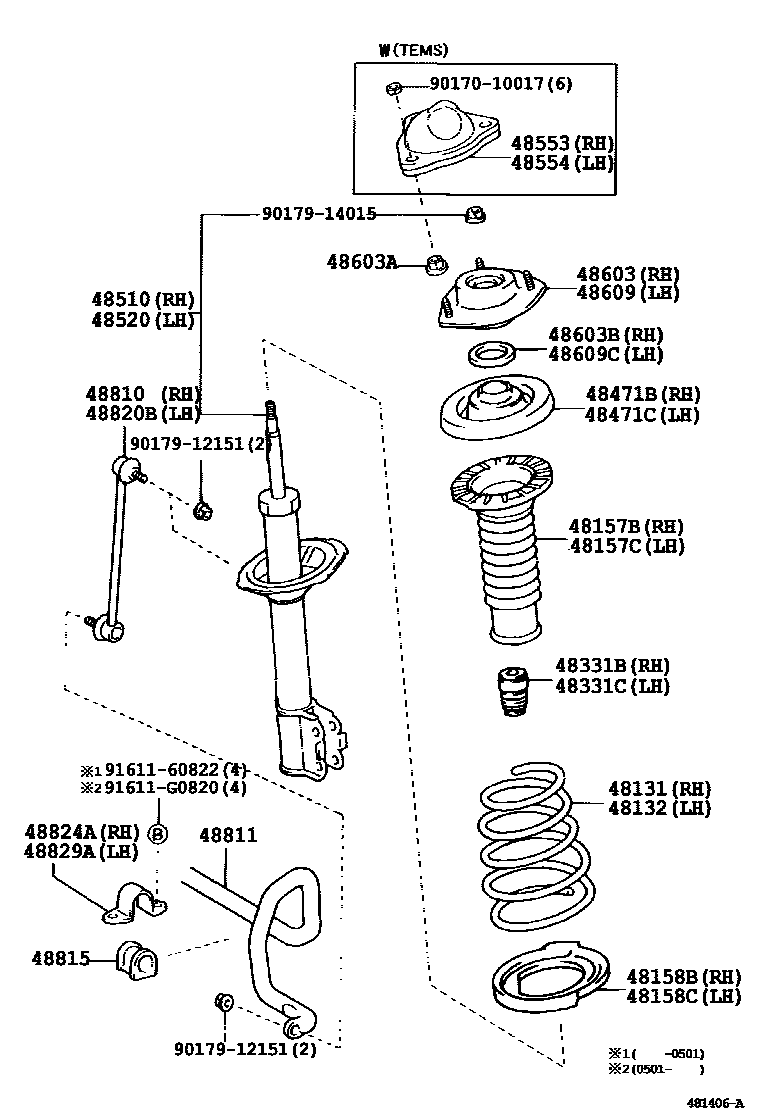

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-33390
MARK 48510-33410
MARK 48510-33411
MARK 48510-33470
MARK 48510-33490
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-33390
MARK 48520-33410
MARK 48520-33411
MARK 48520-33470
MARK 48520-33490
48553CAP, SHOCK ABSORBER, UPPER
48554CAP, FRONT SHOCK ABSORBER, LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017010017
main90170-10017
9017912151
main90179-12151
9017914015
main90179-14015
9161160822
main91611-60822
91611G0820
main91611-G0820
30 parts on this diagram · 1 diagram in section
