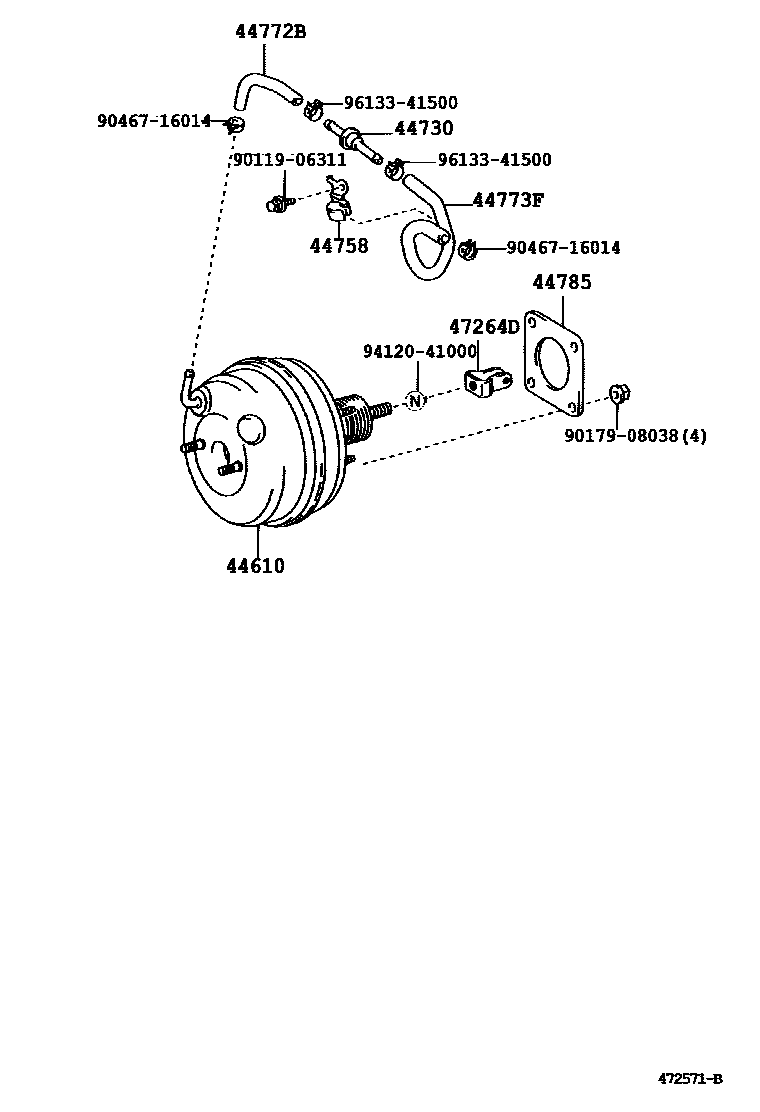

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-33710iMCV30..GCC200107-200406

main44610-33720iMCV30..ARL200406

THAILAND SPEC

main44610-33730iMCV30..ARL200107-200406

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV30200406

44758BRACKET, VACUUM CHECK VALVE

main44758-33070iMCV30..GCC200107-200406

main44758-33110iMCV30..ARL200107-200406

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33100iMCV30..GCC200107-200406

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33110iMCV30..ARL200406

44773FHOSE, UNION TO CHECK VALVE

main44773-33120iMCV30..GCC200107-200406

main44773-33130iMCV30..ARL200107-200406

44785GASKET, BRAKE BOOSTER

main44785-20020iMCV30200406

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMCV30..ARL200402-200406

main47264-63010iMCV30..ARL; MCV30..GCC200406

THAILAND SPEC

9011906311

main90119-06311

9017908038

main90179-08038

9046716014

main90467-16014

9412041000

main94120-41000

9613341500

main96133-41500

13 parts on this diagram · 2 diagrams in section
