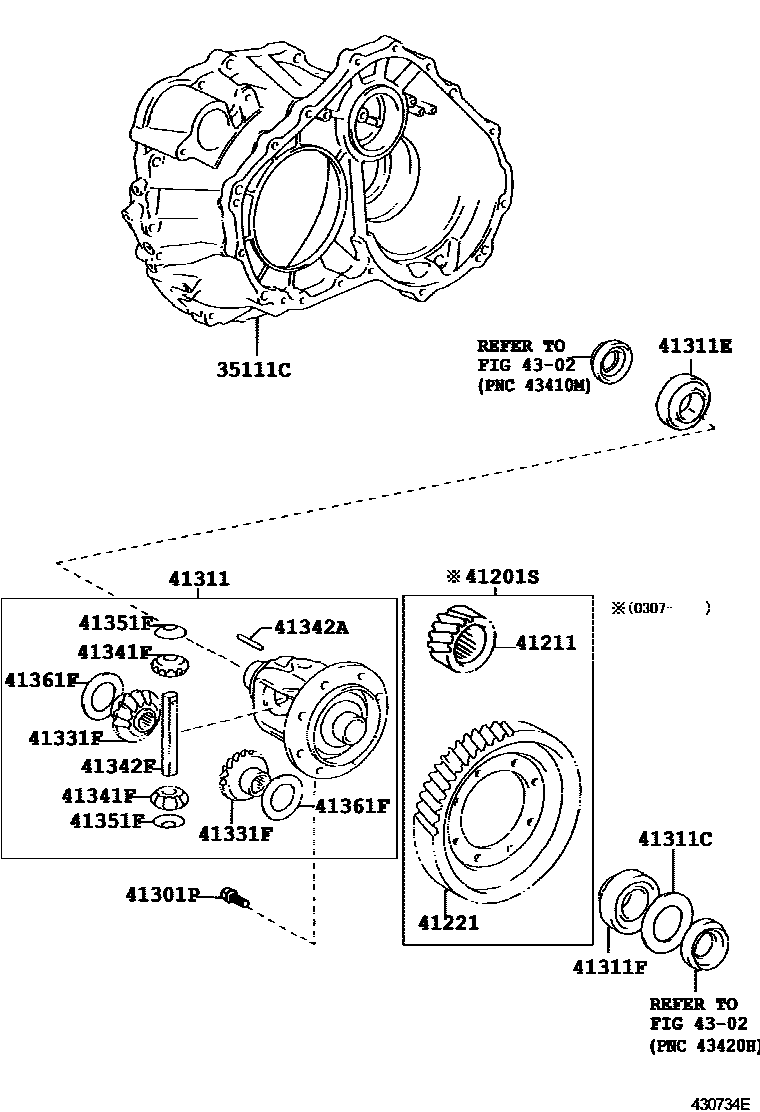

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=80:23=3.478
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.025,MARK J
T=2.075,MARK K
T=2.125,MARK L
T=2.175,MARK M
T=2.225,MARK N
T=2.275,MARK P
T=2.325,MARK Q
T=2.375,MARK R
T=2.425,MARK S
T=2.475,MARK T
T=2.525,MARK U
T=2.575,MARK V
T=2.625,MARK W
T=2.675,MARK X
T=2.725,MARK Y
T=2.775,MARK AA
T=2.825,MARK AB
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.625
T=1.725
T=1.825
4302FRONT DRIVE SHAFT
16 parts on this diagram · 1 diagram in section
