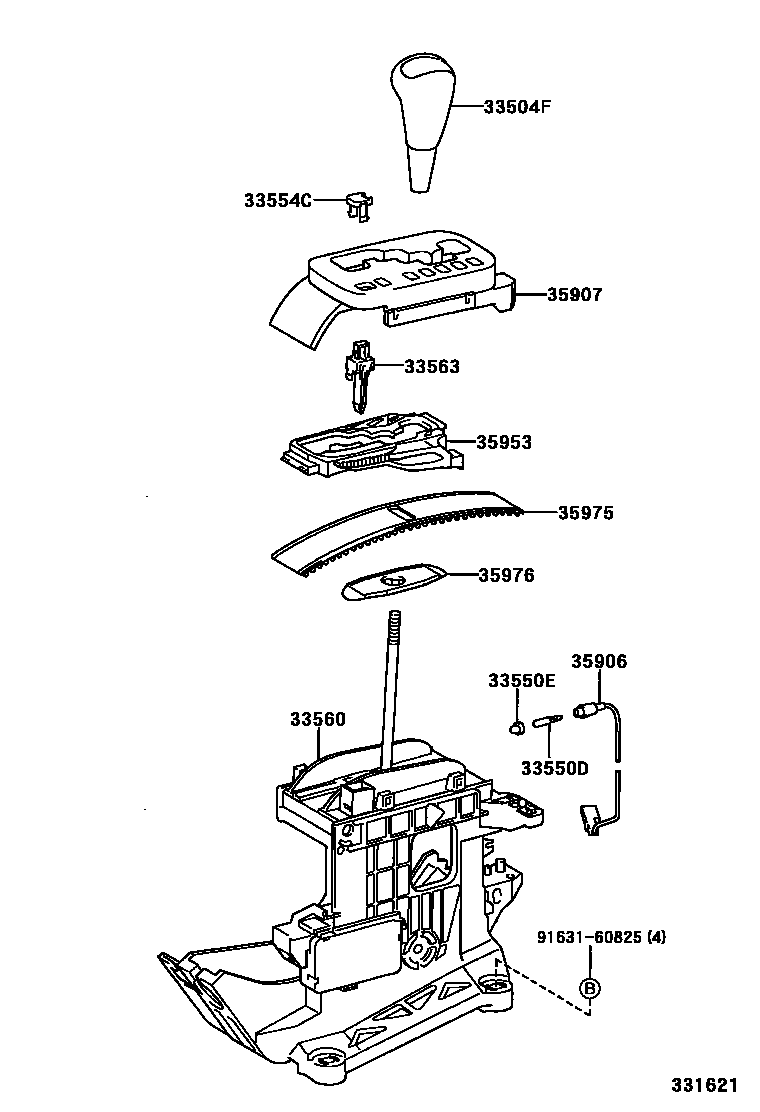

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30310-B5iMCV30..ARL200107-200406

SADDLE GRAY,TRIM1#

main33504-30310-C3iMCV30..ARL200107-200406

BLACK,TRIM2#

main33504-30310-C9iMCV30..ARL200406-200603

REDDISH BROWN & BLACK,TRIM2#

main33504-30310-E1iMCV30..ARL200107-200406

SANDAL WOOD,TRIM0#

main33504-30310-E7iMCV30..ARL200406-200603

LIGHT BROWN & SANDAL WOOD,TRIM0#

main33504-30310-P1iMCV30..ARL200406-200603

LIGHT BROWN & MD.GRAY,TRIM1#

main33504-33010-B0iMCV30..GCC200107-200406

SADDLE GRAY,TRIM1#

main33504-33010-B2iMCV30..GCC200406-200603

LIGHTBROWN & MD.GRAY,TRIM1#

main33504-33010-C0iMCV30..GCC200107-200406

BLACK,TRIM2#

main33504-33010-C1iMCV30..GCC200406-200603

REDDISH BROWN & BLACK,TRIM2#

main33504-33010-E0iMCV30..GCC200107-200406

SANDAL WOOD,TRIM0#

main33504-33010-E1iMCV30..GCC200406-200603

LIGHTBROWN & SANDAL WOOD,TRIM0#

33550DBULB, POSITION INDICATOR LAMP

main90981-11040iMCV30200107-200406

12V 2W

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iMCV30200107-200406

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33502-33060iMCV30..GCC200107-200406

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33050iMCV30..GCC200107-200209

main33560-33051iMCV30..GCC200406

main33560-33060iMCV30..ARL200107-200209

main33560-33061iMCV30..ARL200209-200406

33563BUTTON, SHIFT LOCK RELEASE

main33563-33160iMCV30..GCC200107-200406

main33563-33170iMCV30..ARL200406

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33090iMCV30200406

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-33010iMCV30..GCC200107-200406

main35907-33020iMCV30..ARL200107-200406

35953GUIDE, POSITION INDICATOR LIGHT

main35953-33010iMCV30..GCC200406

main35953-33020iMCV30..ARL200107-200406

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33070iMCV30200107-200406

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-33070iMCV30200107-200406

9163160825

main91631-60825

12 parts on this diagram · 2 diagrams in section
