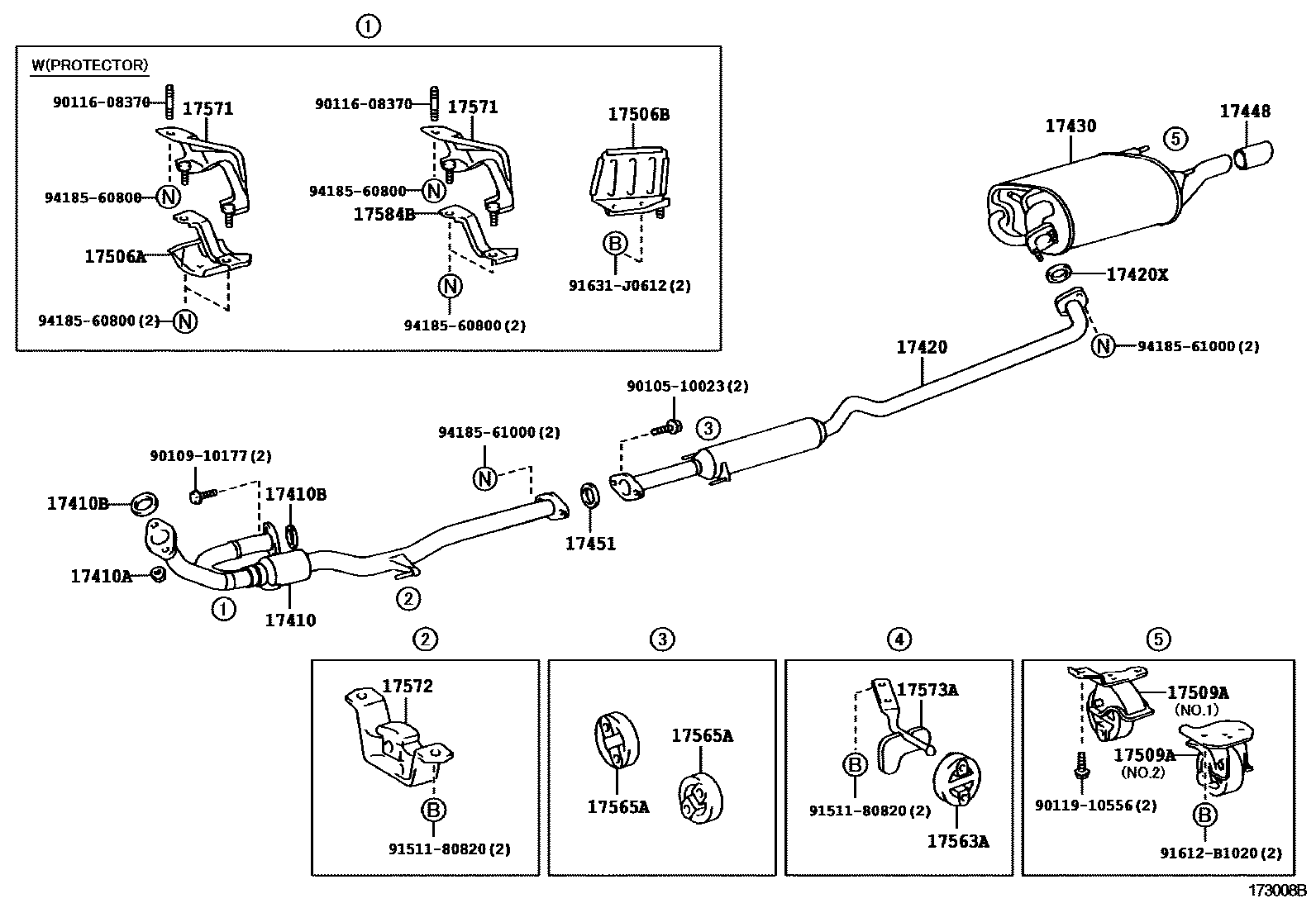

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/GA5GB5/Y
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
SINGAPORE OR HONG KONG OR THAILAND SPEC
17451GASKET, EXHAUST PIPE
SINGAPORE OR HONG KONG OR THAILAND SPEC
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506BBRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
NO.1
NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
9010510023
main90105-10023
9010910177
main90109-10177
9011608370
main90116-08370
9011910556
main90119-10556
9151180820
main91511-80820
91612B1020
main91612-B1020
91631J0612
main91631-J0612
9418560800
main94185-60800
9418561000
main94185-61000
26 parts on this diagram · 1 diagram in section
