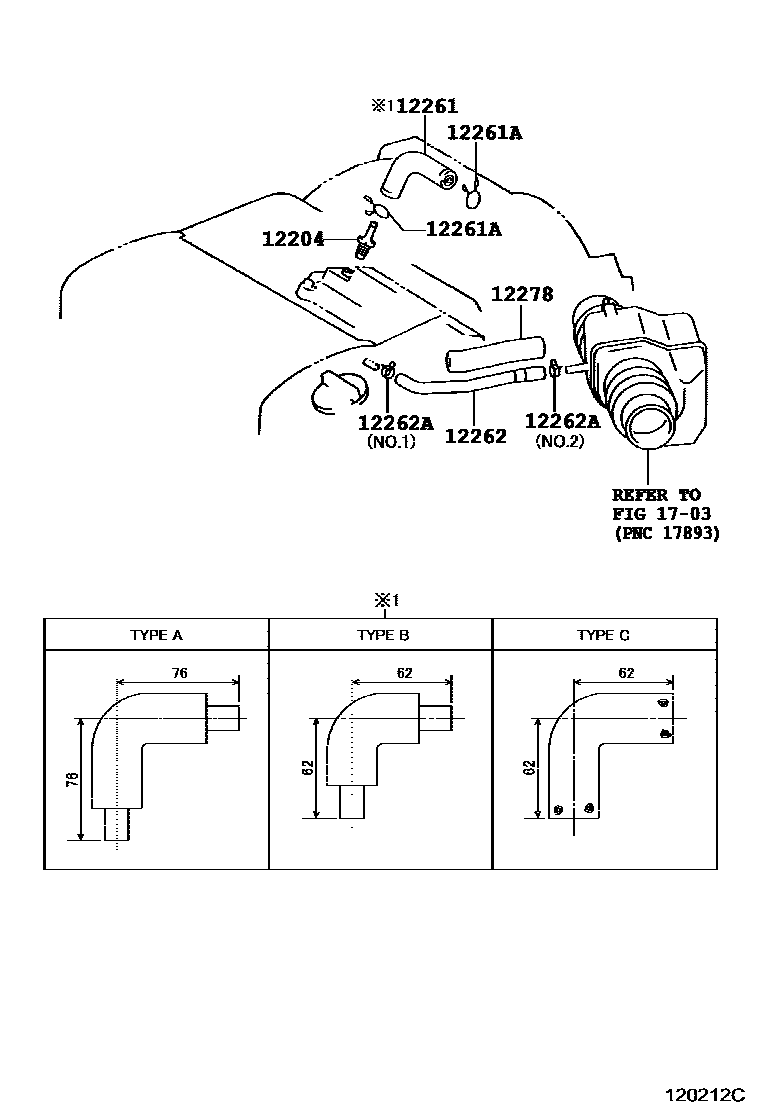

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12261HOSE, VENTILATION
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.2
NO.1
12278INSULATOR, VENTILATION HOSE HEAT
1703
7 parts on this diagram · 1 diagram in section
