ENGINE OVERHAUL GASKET KIT

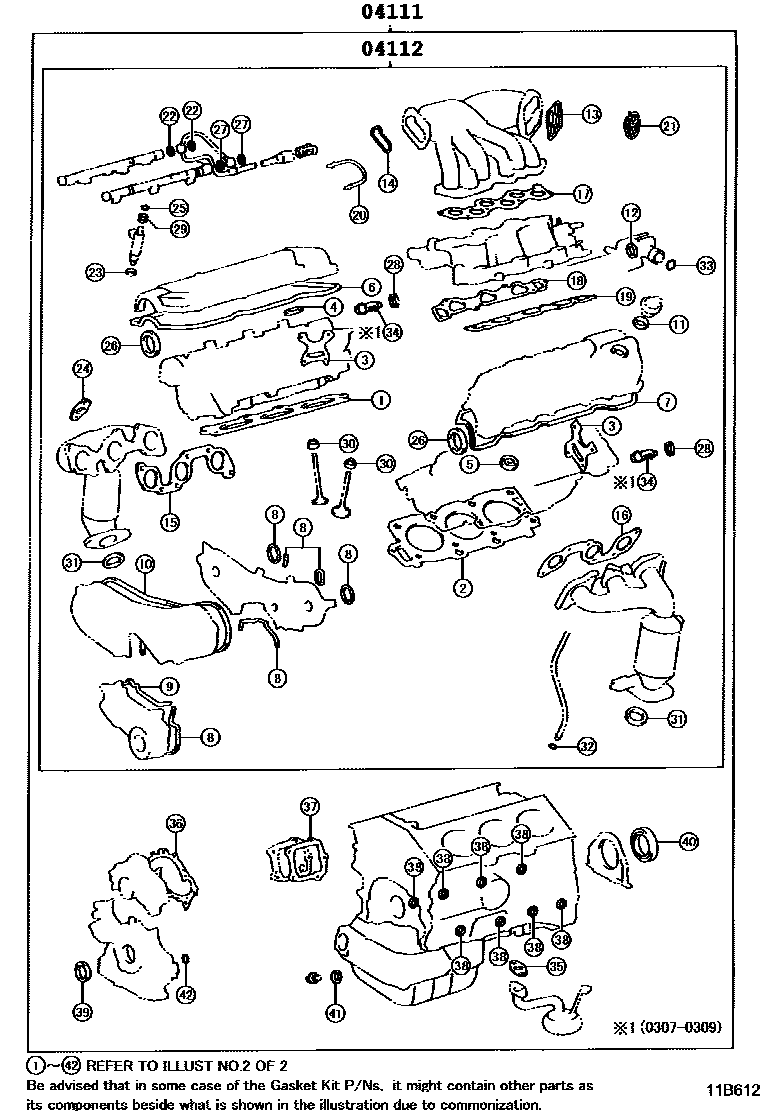

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-20180i200107-200304

main04111-20181i200304-200309

main04111-20270i200309-200406

main04111-20570i200408

main04111-22620i200406-200408

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20170i200107-200304

main04112-20171i200304-200309

main04112-20260i200309-200406

main04112-20490i200408

main04112-22290i200406-200408

2 parts on this diagram · 6 diagrams in section
