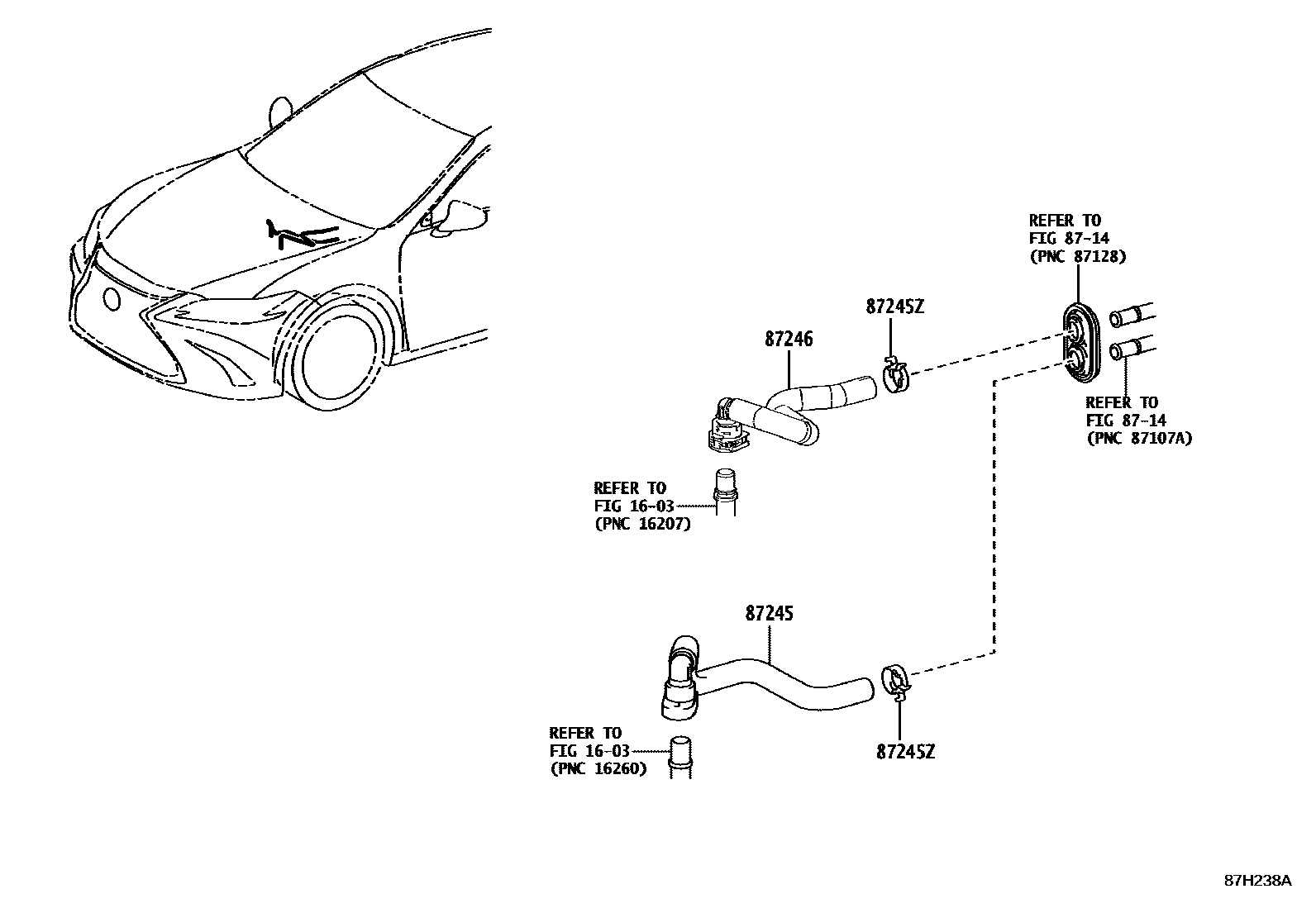

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-33070iAXZA10,AXZH10201806-202110

main87209-33140iMXZA10201907-202108

main87245-33830iGSZ10202108

main87245-33850iASZ10201806-202108

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501×4iASZ10,GSZ10201806-202108

87246HOSE, HEATER WATER, OUTLET

main87209-33080iAXZA10,AXZH10201806-202110

main87209-33150iMXZA10201907-202010

main87209-33151iMXZA10202011-202108

main87245-33820iGSZ10201806-202108

main87245-33840iASZ10201806-202108

5 parts on this diagram · 4 diagrams in section
