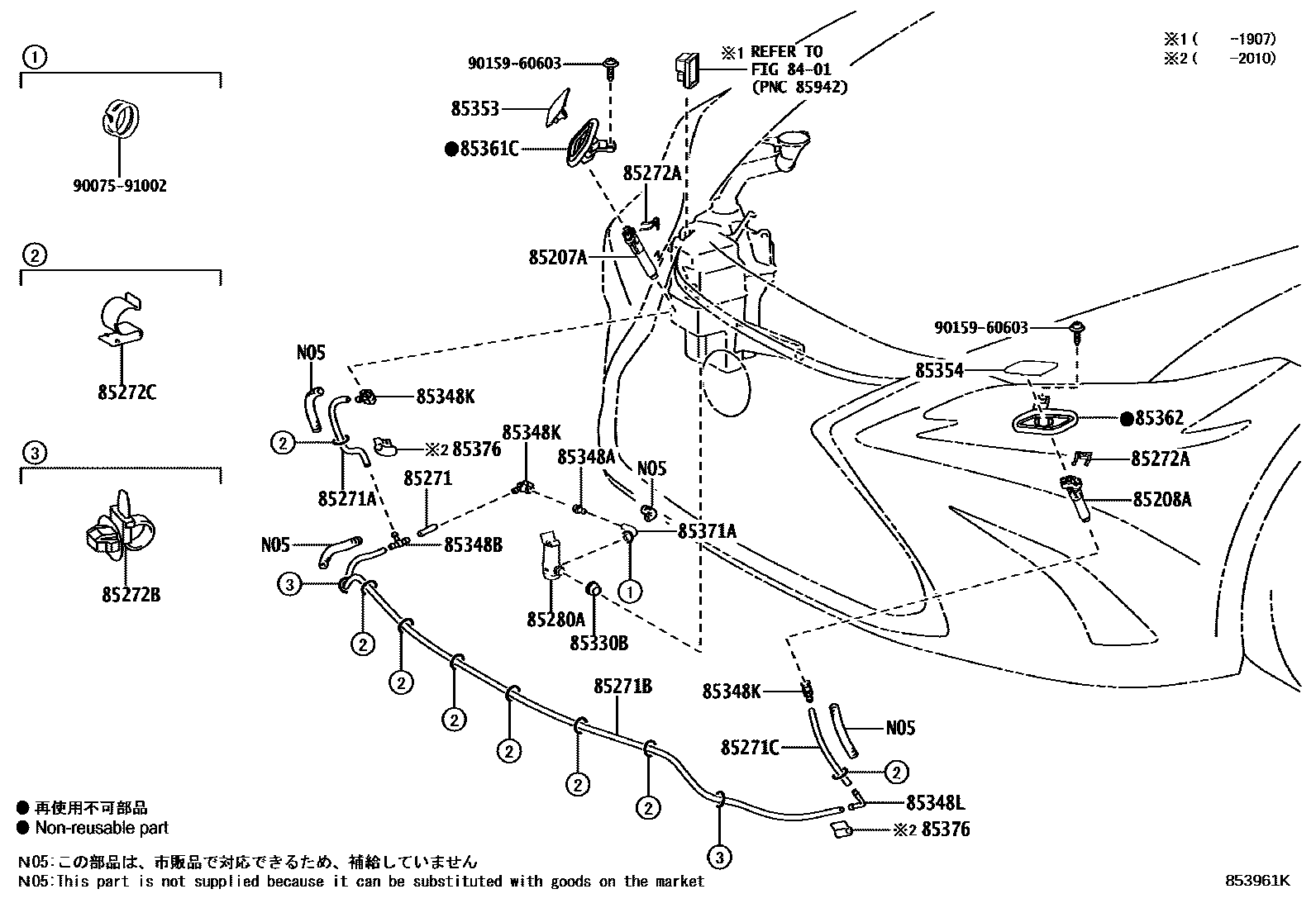

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-LED(PROJECTOR)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP-LED(PROJECTOR)
85271HOSE, HEADLAMP CLEANER, NO.1
L=50
85271AHOSE, HEADLAMP CLEANER, NO.2
L=300
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1950
85271CHOSE, HEADLAMP CLEANER, NO.4
L=180
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85353COVER, HEADLAMP WASHER, RH
main85353-33040-A0iAXZA10,AXZH10..CHI,GEN; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR; GSZ10;AXZA10..EUR202108
HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),WHITE NOVA GF.,083; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),WHITE NOVA GF.,083; WHITE NOVA GF.,083
main85353-33040-A1iAXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; AXZH10..GEN;AXZA10..CHI,GEN; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,SONIC QUARTZ,085; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),SONIC QUARTZ,085; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),SONIC QUARTZ,085; LUXURY PACKAGE,SONIC QUARTZ,085; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085; SONIC QUARTZ,085; ULTRA LUXURY PACKAGE,SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
main85353-33040-B3iAXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; AXZH10..GEN;AXZA10..CHI,GEN; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,SONIC CHROME,1L1; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),SONIC CHROME,1L1; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),SONIC CHROME,1L1; LUXURY PACKAGE,SONIC CHROME,1L1; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1; SONIC CHROME,1L1; ULTRA LUXURY PACKAGE,SONIC CHROME,1L1
main85353-33040-B4iAXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; AXZH10..GEN;AXZA10..CHI,GEN; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,SONIC IRIDIUM,1L2; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),SONIC IRIDIUM,1L2; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),SONIC IRIDIUM,1L2; LUXURY PACKAGE,SONIC IRIDIUM,1L2; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2; SONIC IRIDIUM,1L2; ULTRA LUXURY PACKAGE,SONIC IRIDIUM,1L2
main85353-33040-C0iAXZA10,AXZH10,MXZA10..CHI,GEN; AXZA10,AXZH10..ARL,GEN; AXZA10,AXZH10..GCC; AXZH10..EUR,IND; AXZH10..GCC; GSZ10;AXZA10,MXZA10..EUR202108-202208
BLACK,212; HEADLAMP CLEANER-WITH,BLACK,212; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),BLACK,212; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),BLACK,212; LUXURY PACKAGE,BLACK,212; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212; ULTRA LUXURY PACKAGE,BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
main85353-33040-E0iAXZA10,AXZH10,MXZA10..CHI,GEN; AXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,ICE ECRU M.M.,4X8; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),ICE ECRU M.M.,4X8; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),ICE ECRU M.M.,4X8; ICE ECRU M.M.,4X8; LUXURY PACKAGE,ICE ECRU M.M.,4X8; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),ICE ECRU M.M.,4X8; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),ICE ECRU M.M.,4X8; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),ICE ECRU M.M.,4X8; ULTRA LUXURY PACKAGE,ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
main85353-33040-J0iAXZA10,AXZH10..CHI,GEN; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR; GSZ10;AXZA10..EUR202108
HEADLAMP CLEANER-WITH,HEAT BLUE CONTRAST LAYERI,8X1; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),HEAT BLUE CONTRAST LAYERI,8X1; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),HEAT BLUE CONTRAST LAYERI,8X1; HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
85354COVER, HEADLAMP WASHER, LH
main85354-33040-A0iAXZA10,AXZH10..CHI,GEN; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR; GSZ10;AXZA10..EUR202108
HEADLAMP CLEANER-WITH,WHITE NOVA GF.,083; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),WHITE NOVA GF.,083; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),WHITE NOVA GF.,083; WHITE NOVA GF.,083
main85354-33040-A1iAXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; AXZH10..GEN;AXZA10..CHI,GEN; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,SONIC QUARTZ,085; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),SONIC QUARTZ,085; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),SONIC QUARTZ,085; LUXURY PACKAGE,SONIC QUARTZ,085; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085; SONIC QUARTZ,085; ULTRA LUXURY PACKAGE,SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
main85354-33040-B3iAXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; AXZH10..GEN;AXZA10..CHI,GEN; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,SONIC CHROME,1L1; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),SONIC CHROME,1L1; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),SONIC CHROME,1L1; LUXURY PACKAGE,SONIC CHROME,1L1; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1; SONIC CHROME,1L1; ULTRA LUXURY PACKAGE,SONIC CHROME,1L1
main85354-33040-B4iAXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; AXZH10..GEN;AXZA10..CHI,GEN; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,SONIC IRIDIUM,1L2; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),SONIC IRIDIUM,1L2; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),SONIC IRIDIUM,1L2; LUXURY PACKAGE,SONIC IRIDIUM,1L2; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2; SONIC IRIDIUM,1L2; ULTRA LUXURY PACKAGE,SONIC IRIDIUM,1L2
main85354-33040-C0iAXZA10,AXZH10,MXZA10..CHI,GEN; AXZA10,AXZH10..ARL,GEN; AXZA10,AXZH10..GCC; AXZH10..EUR,IND; AXZH10..GCC; GSZ10;AXZA10,MXZA10..EUR202108-202208
BLACK,212; HEADLAMP CLEANER-WITH,BLACK,212; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),BLACK,212; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),BLACK,212; LUXURY PACKAGE,BLACK,212; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212; ULTRA LUXURY PACKAGE,BLACK,212
GRAPHITE BLACK GF.,223
main85354-33040-D0iAXZA10,AXZH10,MXZA10..CHI,GEN; AXZA10,AXZH10..GCC; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR,IND; AXZH10..GCC; GSZ10;AXZA10,MXZA10..EUR202108
HEADLAMP CLEANER-WITH,RED MC.CS.,3R1; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),RED MC.CS.,3R1; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),RED MC.CS.,3R1; LUXURY PACKAGE,RED MC.CS.,3R1; PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),RED MC.CS.,3R1; PHILIPPINE SPEC&LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),RED MC.CS.,3R1; PHILIPPINE SPEC&ULTRA LUXURY PACKAGE&HEADLAMP-LED(TRINOCULAR FULL LED),RED MC.CS.,3R1; RED MC.CS.,3R1; ULTRA LUXURY PACKAGE,RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
main85354-33040-J0iAXZA10,AXZH10..CHI,GEN; AXZA10..ARL;AXZH10..ARL,GEN; AXZH10..EUR; GSZ10;AXZA10..EUR202108
HEADLAMP CLEANER-WITH,HEAT BLUE CONTRAST LAYERI,8X1; HEADLAMP-LED(TRINOCULAR FULL LED) & W(*AHS & AFS),HEAT BLUE CONTRAST LAYERI,8X1; HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),HEAT BLUE CONTRAST LAYERI,8X1; HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=80
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
9007591002
main90075-91002
9015960603
main90159-60603
24 parts on this diagram · 1 diagram in section
