HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8202WIRING & CLAMP

→ Go to FIG 82-02

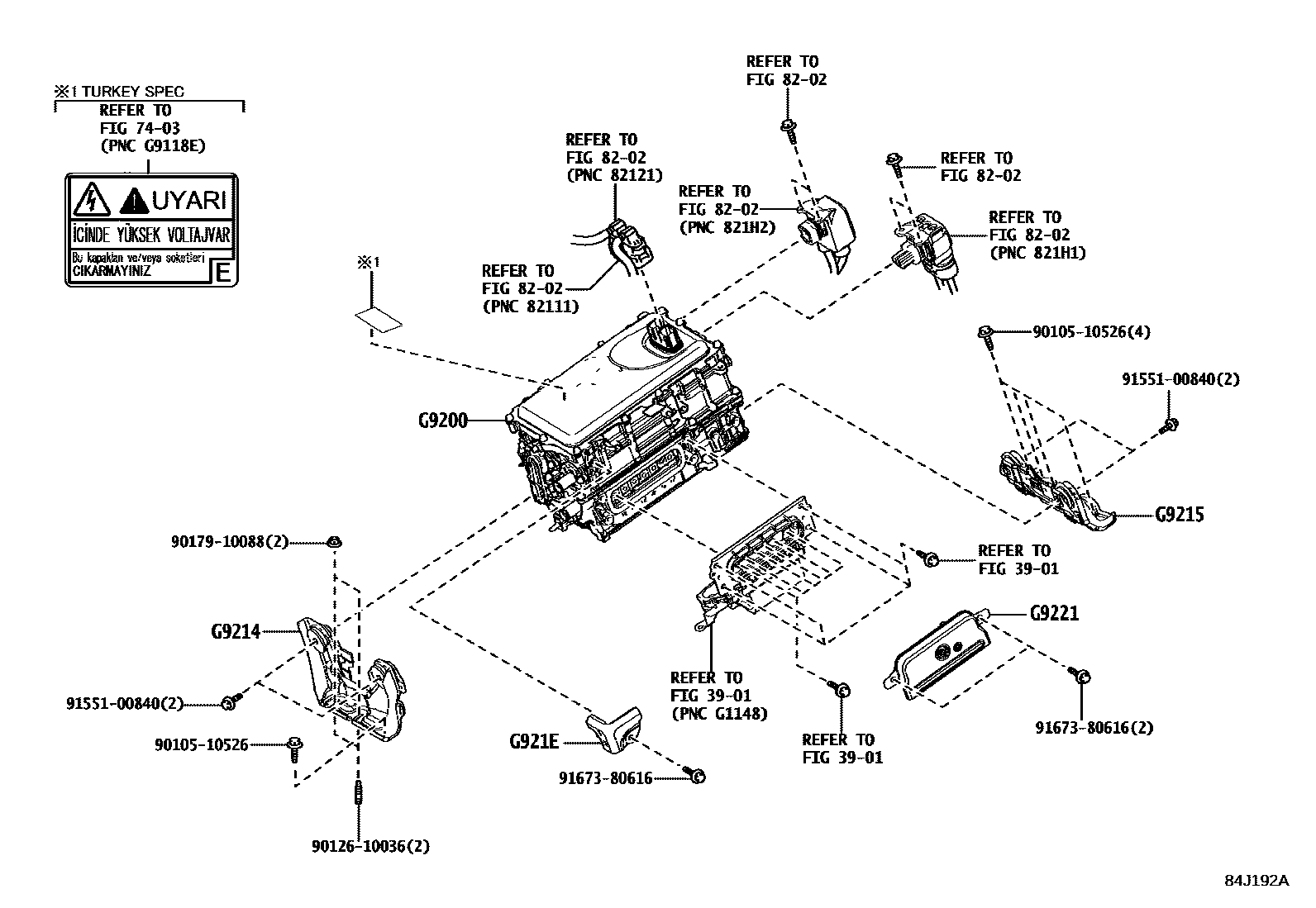

G9200INVERTER ASSY, W/CONVERTER

mainG92A033031201807-202106

mainG92A033032202107-202204

mainG92A033033202205-202402

mainG92A042160202402

G9214BRACKET, INVERTER, NO.1

mainG921433040201807-202110

G9215BRACKET, INVERTER, NO.2

mainG921533040201807-202110

G921EPROTECTOR, INVERTER

mainG921E47010201807-202110

G9221COVER, INVERTER

mainG902247050201807-202110

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
