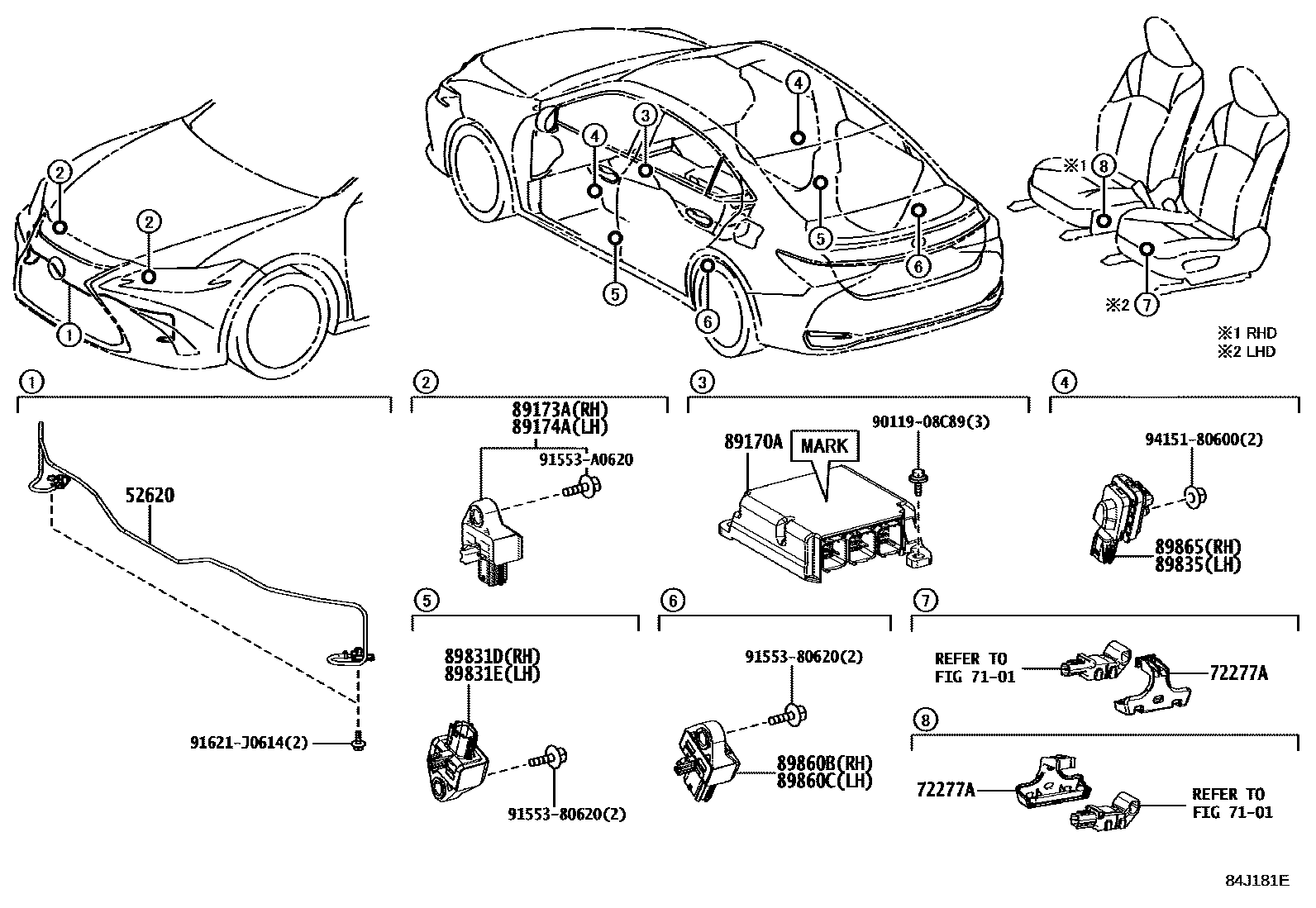

AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-50010i202108

main52620-50020i202402

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050i202108

89170ACOMPUTER ASSY, AIRBAG

main89170-33C00supersedes 89170-33F10i201806-202008

ARUBA SPEC,P/N LABEL=8917033C00; CHILE SPEC,P/N LABEL=8917033C00; COSTA RICA, PANAMA SPEC,P/N LABEL=8917033C00; CURACAO SPEC,P/N LABEL=8917033C00; DOMINICAN REPUBLIC SPEC,P/N LABEL=8917033C00; GUATEMALA SPEC,P/N LABEL=8917033C00; NICARAGUA SPEC,P/N LABEL=8917033C00; P/N LABEL=8917033C00; PERU SPEC,P/N LABEL=8917033C00

main89170-33D30supersedes 89170-33Y10i201807-202008

P/N LABEL=8917033D30

main89170-33D50i201807-202008

P/N LABEL=8917033D50

main89170-33D80i201807-202010

P/N LABEL=8917033D80

main89170-33D90i202008-202108

CHILE SPEC,P/N LABEL=8917033D90; P/N LABEL=8917033D90; PERU SPEC,P/N LABEL=8917033D90; TAIWAN SPEC,P/N LABEL=8917033D90; VIETNAM SPEC,P/N LABEL=8917033D90

main89170-33E10supersedes 89170-33K40i202008-202108

ARUBA SPEC,P/N LABEL=8917033E10; CHILE SPEC,P/N LABEL=8917033E10; COSTA RICA, PANAMA SPEC,P/N LABEL=8917033E10; CURACAO SPEC,P/N LABEL=8917033E10; DOMINICAN REPUBLIC SPEC,P/N LABEL=8917033E10; GUATEMALA SPEC,P/N LABEL=8917033E10; NICARAGUA SPEC,P/N LABEL=8917033E10; P/N LABEL=8917033E10; PANAMA SPEC,P/N LABEL=8917033E10; PERU SPEC,P/N LABEL=8917033E10; TAIWAN SPEC,P/N LABEL=8917033E10; VIETNAM SPEC,P/N LABEL=8917033E10

main89170-33J30i202008-202108

P/N LABEL=8917033J30

main89170-33J40i202010-202110

P/N LABEL=8917033J40

main89170-33N20i202108-202202

P/N LABEL=8917033N20; TAIWAN SPEC,P/N LABEL=8917033N20; VIETNAM SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033N20

main89170-33N21supersedes 89170-33P11i202202-202208

P/N LABEL=8917033N21; TAIWAN SPEC,P/N LABEL=8917033N21; VIETNAM SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033N21

main89170-33N30i202108-202202

P/N LABEL=8917033N30; PANAMA SPEC,P/N LABEL=8917033N30; PERU SPEC,P/N LABEL=8917033N30; TAIWAN SPEC,P/N LABEL=8917033N30; VIETNAM SPEC,P/N LABEL=8917033N30

main89170-33N31supersedes 89170-33P60i202202-202208

P/N LABEL=8917033N31; PANAMA SPEC,P/N LABEL=8917033N31; PERU SPEC,P/N LABEL=8917033N31; TAIWAN SPEC,P/N LABEL=8917033N31; VIETNAM SPEC,P/N LABEL=8917033N31

main89170-33N50i202108-202202

P/N LABEL=8917033N50

main89170-33N51i202202-202208

P/N LABEL=8917033N51

main89170-33N60i202108-202210

P/N LABEL=8917033N60

main89170-33N70i202108-202202

P/N LABEL=8917033N70

main89170-33N71i202202-202208

P/N LABEL=8917033N71

main89170-33N90i202108-202202

P/N LABEL=8917033N90

main89170-33N91i202202-202208

P/N LABEL=8917033N91

main89170-33R90i202208

P/N LABEL=8917033R90; TAIWAN SPEC,P/N LABEL=8917033R90; VIETNAM SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033R90

main89170-33S00supersedes 89170-33W80i202208

P/N LABEL=8917033S00; PERU SPEC,P/N LABEL=8917033S00; VIETNAM SPEC,P/N LABEL=8917033S00

main89170-33S20i202208

P/N LABEL=8917033S20

main89170-33S40i202208

P/N LABEL=8917033S40

main89170-33S60i202208

P/N LABEL=8917033S60

main89170-33W90i202402-202410

P/N LABEL=8917033W90

main89170-33X10i202402

P/N LABEL=8917033X10

main89170-33B50i201806-202008

AZERBAIJAN SPEC&F SPORT,P/N LABEL=8917033B50; GEORGIA SPEC&F SPORT,P/N LABEL=8917033B50; UKRAINE SPEC&F SPORT,P/N LABEL=8917033B50

main89170-33C50supersedes 89170-33J70i201806-202008

AZERBAIJAN SPEC,P/N LABEL=8917033C50; GEORGIA SPEC,P/N LABEL=8917033C50; MOLDOVA SPEC,P/N LABEL=8917033C50; UKRAINE SPEC,P/N LABEL=8917033C50

main89170-33C60i201806-202008

F SPORT,P/N LABEL=8917033C60

main89170-33D00i201907-202008

F SPORT,P/N LABEL=8917033D00

main89170-33E00i201907-202008

F SPORT,P/N LABEL=8917033E00

main89170-33E20supersedes 89170-33P10i201807-202008

F SPORT,P/N LABEL=8917033E20

main89170-33E30supersedes 89170-33N60i201807-202008

F SPORT,P/N LABEL=8917033E30

main89170-33E80supersedes 89170-33J50i202008-202108

MALAYSIA SPEC&F SPORT,P/N LABEL=8917033E80

main89170-33F20i201806-202008

F SPORT,P/N LABEL=8917033F20

main89170-33J10i202208

TAIWAN SPEC&F SPORT DESIGN,P/N LABEL=8917033J10; TAIWAN SPEC&F SPORT,P/N LABEL=8917033J10

main89170-33J20i202008-202108

CHILE SPEC&F SPORT,P/N LABEL=8917033J20; F SPORT,P/N LABEL=8917033J20; TAIWAN SPEC&F SPORT,P/N LABEL=8917033J20

main89170-33J80i202008-202108

F SPORT,P/N LABEL=8917033J80

main89170-33K00supersedes 89170-33P10i202008-202108

F SPORT,P/N LABEL=8917033K00

main89170-33K10supersedes 89170-33J70i202008-202108

AZERBAIJAN SPEC,P/N LABEL=8917033K10; GEORGIA SPEC,P/N LABEL=8917033K10; MOLDOVA SPEC,P/N LABEL=8917033K10; UKRAINE SPEC,P/N LABEL=8917033K10

main89170-33K20supersedes 89170-33N60i202008-202108

F SPORT,P/N LABEL=8917033K20

main89170-33K30i202008-202108

F SPORT,P/N LABEL=8917033K30

main89170-33K50i202008-202108

F SPORT,P/N LABEL=8917033K50

main89170-33K60i202008-202108

AZERBAIJAN SPEC&F SPORT,P/N LABEL=8917033K60; GEORGIA SPEC&F SPORT,P/N LABEL=8917033K60; UKRAINE SPEC&F SPORT,P/N LABEL=8917033K60

main89170-33L30supersedes 89170-33P90i202108-202208

F SPORT,P/N LABEL=8917033L30

main89170-33N40i202108-202202

F SPORT,P/N LABEL=8917033N40; TAIWAN SPEC&F SPORT,P/N LABEL=8917033N40; VIETNAM SPEC&F SPORT,P/N LABEL=8917033N40

main89170-33N41i202202-202208

F SPORT,P/N LABEL=8917033N41; TAIWAN SPEC&F SPORT,P/N LABEL=8917033N41; VIETNAM SPEC&F SPORT,P/N LABEL=8917033N41

main89170-33N80supersedes 89170-33J60i202108-202202

SOUTH AFRICA SPEC,P/N LABEL=8917033N80

main89170-33N81i202202-202208

SOUTH AFRICA SPEC,P/N LABEL=8917033N81

main89170-33P00i202108-202202

F SPORT,P/N LABEL=8917033P00

main89170-33P01i202202-202208

F SPORT,P/N LABEL=8917033P01

main89170-33P20supersedes 89170-33P10i202108-202202

F SPORT,P/N LABEL=8917033P20

main89170-33P21supersedes 89170-33P11i202202-202208

F SPORT,P/N LABEL=8917033P21

main89170-33P30i202108-202202

AZERBAIJAN SPEC&LUXURY PACKAGE,P/N LABEL=8917033P30; AZERBAIJAN SPEC,P/N LABEL=8917033P30; GEORGIA SPEC&LUXURY PACKAGE,P/N LABEL=8917033P30; GEORGIA SPEC,P/N LABEL=8917033P30; MOLDOVA SPEC&LUXURY PACKAGE,P/N LABEL=8917033P30; MOLDOVA SPEC,P/N LABEL=8917033P30; UKRAINE SPEC&LUXURY PACKAGE,P/N LABEL=8917033P30; UKRAINE SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033P30; UKRAINE SPEC,P/N LABEL=8917033P30

main89170-33P31i202202-202208

AZERBAIJAN SPEC&LUXURY PACKAGE,P/N LABEL=8917033P31; AZERBAIJAN SPEC,P/N LABEL=8917033P31; GEORGIA SPEC&LUXURY PACKAGE,P/N LABEL=8917033P31; GEORGIA SPEC,P/N LABEL=8917033P31; MOLDOVA SPEC&LUXURY PACKAGE,P/N LABEL=8917033P31; MOLDOVA SPEC,P/N LABEL=8917033P31; UKRAINE SPEC&LUXURY PACKAGE,P/N LABEL=8917033P31; UKRAINE SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033P31; UKRAINE SPEC,P/N LABEL=8917033P31

main89170-33P40supersedes 89170-33N60i202108-202202

F SPORT,P/N LABEL=8917033P40

main89170-33P41i202202-202208

F SPORT,P/N LABEL=8917033P41

main89170-33P50i202108-202202

F SPORT,P/N LABEL=8917033P50; THAILAND SPEC&F SPORT,P/N LABEL=8917033P50

main89170-33P51i202202-202208

F SPORT,P/N LABEL=8917033P51; THAILAND SPEC&F SPORT,P/N LABEL=8917033P51

main89170-33P70i202108-202208

F SPORT,P/N LABEL=8917033P70

main89170-33P80i202108-202202

AZERBAIJAN SPEC&F SPORT,P/N LABEL=8917033P80; GEORGIA SPEC&F SPORT,P/N LABEL=8917033P80; UKRAINE SPEC&F SPORT,P/N LABEL=8917033P80

main89170-33P81i202202-202208

AZERBAIJAN SPEC&F SPORT,P/N LABEL=8917033P81; GEORGIA SPEC&F SPORT,P/N LABEL=8917033P81; UKRAINE SPEC&F SPORT,P/N LABEL=8917033P81

main89170-33Q00supersedes 89170-33J50i202108-202202

BRUNEI SPEC&F SPORT,P/N LABEL=8917033Q00; F SPORT,P/N LABEL=8917033Q00; INDONESIA SPEC&F SPORT,P/N LABEL=8917033Q00; MALAYSIA SPEC&F SPORT,P/N LABEL=8917033Q00; SINGAPORE SPEC&F SPORT,P/N LABEL=8917033Q00

main89170-33Q01i202202-202208

BRUNEI SPEC&F SPORT,P/N LABEL=8917033Q01; F SPORT,P/N LABEL=8917033Q01; INDONESIA SPEC&F SPORT,P/N LABEL=8917033Q01; MALAYSIA SPEC&F SPORT,P/N LABEL=8917033Q01; SINGAPORE SPEC&F SPORT,P/N LABEL=8917033Q01

main89170-33S10i202208

F SPORT,P/N LABEL=8917033S10; VIETNAM SPEC&F SPORT,P/N LABEL=8917033S10

main89170-33S30i202208

SOUTH AFRICA SPEC,P/N LABEL=8917033S30

main89170-33S50i202208

SOUTH AFRICA SPEC,P/N LABEL=8917033S50

main89170-33S70i202208

F SPORT DESIGN,P/N LABEL=8917033S70; F SPORT,P/N LABEL=8917033S70

main89170-33S80supersedes 89170-33X20i202402

ARGENTINA SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; ARGENTINA SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033S80; AZERBAIJAN SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; AZERBAIJAN SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033S80; BRAZIL SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; GEORGIA SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; GEORGIA SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033S80; MOLDOVA SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; MOLDOVA SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033S80; MOROCCO SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; MOROCCO SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033S80; PERU SPEC,P/N LABEL=8917033S80; UKRAINE SPEC&LUXURY PACKAGE,P/N LABEL=8917033S80; UKRAINE SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033S80

main89170-33S90supersedes 89170-33S80i202208-202402

F SPORT DESIGN,P/N LABEL=8917033S90; F SPORT,P/N LABEL=8917033S90

main89170-33T00i202208

AZERBAIJAN SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033T00; AZERBAIJAN SPEC,P/N LABEL=8917033T00; GEORGIA SPEC&ULTRA LUXURY PACKAGE,P/N LABEL=8917033T00; GEORGIA SPEC,P/N LABEL=8917033T00; MOLDOVA SPEC,P/N LABEL=8917033T00; UKRAINE SPEC,P/N LABEL=8917033T00

main89170-33T10supersedes 89170-33S30i202208-202402

F SPORT DESIGN,P/N LABEL=8917033T10; F SPORT,P/N LABEL=8917033T10

main89170-33T20i202208

F SPORT DESIGN,P/N LABEL=8917033T20; F SPORT,P/N LABEL=8917033T20; THAILAND SPEC&F SPORT,P/N LABEL=8917033T20

main89170-33T40i202208-202402

F SPORT,P/N LABEL=8917033T40

main89170-33T50i202208

AZERBAIJAN SPEC&F SPORT DESIGN,P/N LABEL=8917033T50; AZERBAIJAN SPEC&F SPORT,P/N LABEL=8917033T50; GEORGIA SPEC&F SPORT DESIGN,P/N LABEL=8917033T50; GEORGIA SPEC&F SPORT,P/N LABEL=8917033T50; MOLDOVA SPEC&F SPORT DESIGN,P/N LABEL=8917033T50; MOLDOVA SPEC&F SPORT,P/N LABEL=8917033T50; UKRAINE SPEC&F SPORT DESIGN,P/N LABEL=8917033T50; UKRAINE SPEC&F SPORT,P/N LABEL=8917033T50

main89170-33T70i202208-202402

INDONESIA SPEC&F SPORT,P/N LABEL=8917033T70; SINGAPORE SPEC&F SPORT,P/N LABEL=8917033T70

main89170-33T90supersedes 89170-33T60i202208-202402

F SPORT,P/N LABEL=8917033T90

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495i201806-202110

main89173-49505i202108-202202

main89173-59335i202402

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495i202202-202208

F SPORT; F SPORT DESIGN; TAIWAN SPEC

main89173-49505i202108-202202
