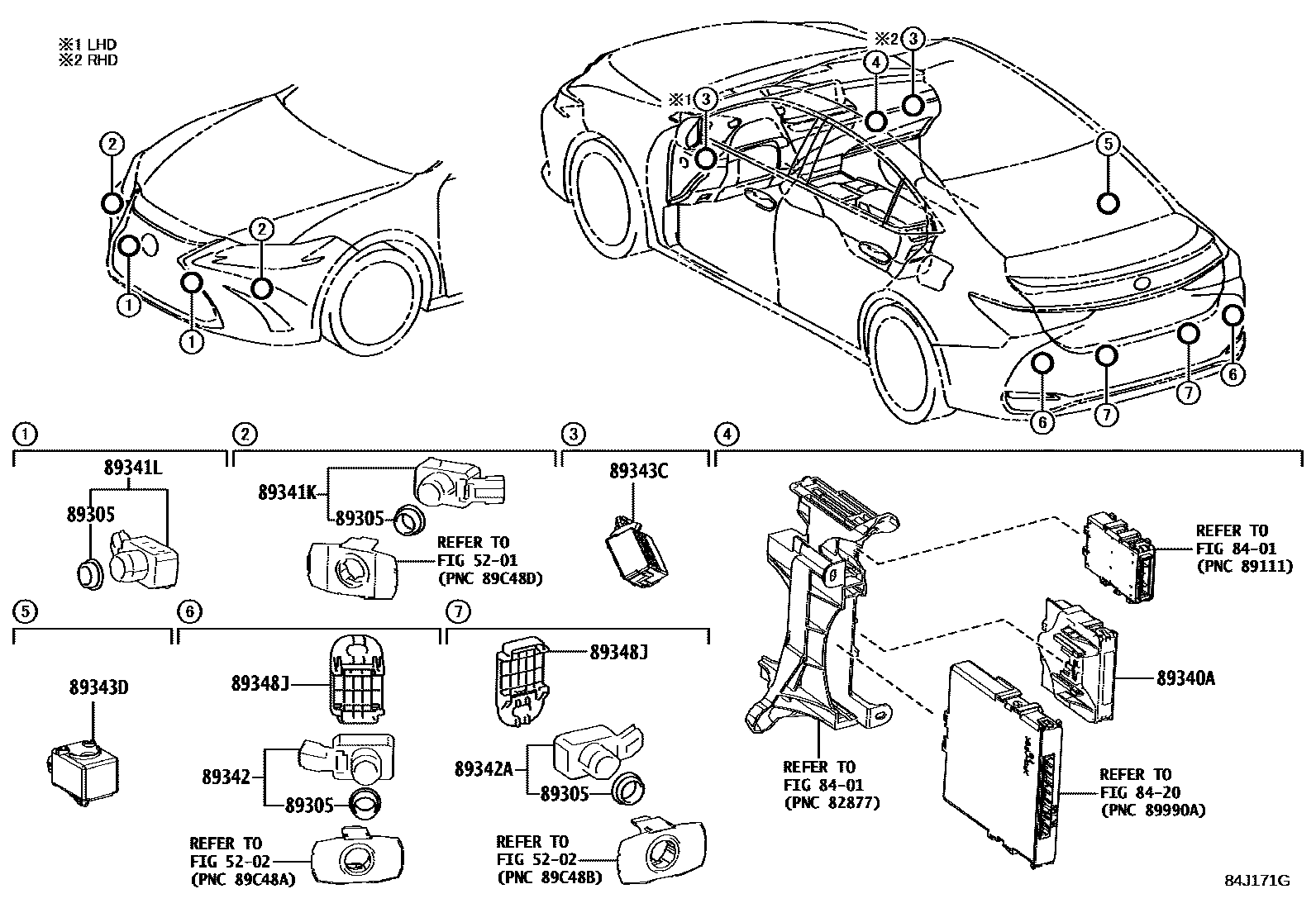

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
8401SWITCH & RELAY & COMPUTER
8420WIRELESS DOOR LOCK
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
CHILE SPEC; PERU SPEC
PHILIPPINE SPEC
F SPORT&BLIND SPOT MONITOR-WITH; SYRIA SPEC&F SPORT; YEMEN SPEC&F SPORT
F SPORT&BLIND SPOT MONITOR-WITHOUT
F SPORT; F SPORT&BLIND SPOT MONITOR-WITHOUT
F SPORT; F SPORT&BLIND SPOT MONITOR-WITH; F SPORT&BLIND SPOT MONITOR-WITHOUT
F SPORT; MALAYSIA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)
main89340-33420iAXZA10,AXZH10..ARL; AXZA10..GEN; AXZH10..GEN; GSZ10;AXZA10,AXZH10..CHI,EUR202108-202208
BRUNEI SPEC&F SPORT&BLIND SPOT MONITOR-WITH; F SPORT; F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); INDONESIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH; MALAYSIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH; SINGAPORE SPEC&F SPORT&BLIND SPOT MONITOR-WITH; THAILAND SPEC&F SPORT&BLIND SPOT MONITOR-WITH
TAIWAN SPEC&F SPORT DESIGN&AUDIO-8INCH DISPLAY & *DA & CD; TAIWAN SPEC&F SPORT&AUDIO-8INCH DISPLAY & *DA & CD; TAIWAN SPEC&F SPORT&AUDIO-8INCH DISPLAY & *DA & DVD & *MAR
89341KSENSOR, ULTRASONIC, FRONT CORNER
SONIC QUARTZ,085,MARK 89341-33220
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7,MARK 89341-33220
PLATINUM SILVER ME.,1J4
BLACK,212,MARK 89341-33220
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1,MARK 89341-33220
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0
DEEP BLUE MC.,8X5,MARK 89341-33220
SONIC CHROME,1L1,MARK 89341-33220
SONIC IRIDIUM,1L2,MARK 89341-33220
GRAPHITE BLACK GF.,223,MARK 89341-K0060
SONIC QUARTZ,085,MARK 89341-K0060
RED MC.CS.,3R1,MARK 89341-K0060
SUNLIGHT GREEN M.M.,6X0,MARK 89341-K0060
DEEP BLUE MC.,8X5,MARK 89341-K0060
ICE ECRU M.M.,4X8,MARK 89341-K0060
SONIC TITANIUM,1J7,MARK 89341-K0060
SONIC IRIDIUM,1L2,MARK 89341-K0060
SONIC CHROME,1L1,MARK 89341-K0060
BRUNEI SPEC&F SPORT&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083,MARK 89341-33220; F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE NOVA GF.,083,MARK 89341-33220; F SPORT,WHITE NOVA GF.,083,MARK 89341-33220; MALAYSIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083,MARK 89341-33220; THAILAND SPEC&F SPORT&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083,MARK 89341-33220
BRUNEI SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; F SPORT,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; MALAYSIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; THAILAND SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220
89341LSENSOR, ULTRASONIC, FRONT CENTER
MAT BLACK
DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
BLACK,212
GRAPHITE BLACK GF.,223,MARK 89341-33220
RED MC.CS.,3R1
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0,MARK 89341-33220
DEEP BLUE MC.,8X5,MARK 89341-33220
SONIC CHROME,1L1,MARK 89341-33220
SONIC IRIDIUM,1L2,MARK 89341-33220
GRAPHITE BLACK GF.,223,MARK 89341-K0060
SONIC QUARTZ,085,MARK 89341-K0060
RED MC.CS.,3R1,MARK 89341-K0060
SUNLIGHT GREEN M.M.,6X0,MARK 89341-K0060
DEEP BLUE MC.,8X5,MARK 89341-K0060
ICE ECRU M.M.,4X8,MARK 89341-K0060
SONIC TITANIUM,1J7,MARK 89341-K0060
SONIC IRIDIUM,1L2,MARK 89341-K0060
SONIC CHROME,1L1,MARK 89341-K0060
BRUNEI SPEC&F SPORT&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083,MARK 89341-33220; F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE NOVA GF.,083,MARK 89341-33220; F SPORT,WHITE NOVA GF.,083,MARK 89341-33220; MALAYSIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083,MARK 89341-33220; THAILAND SPEC&F SPORT&BLIND SPOT MONITOR-WITH,WHITE NOVA GF.,083,MARK 89341-33220
BRUNEI SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; F SPORT,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; MALAYSIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; THAILAND SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220
89342ASENSOR, ULTRASONIC, REAR CENTER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7,MARK 89341-33220
PLATINUM SILVER ME.,1J4
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1,MARK 89341-33220
ICE ECRU M.M.,4X8
SUNLIGHT GREEN M.M.,6X0,MARK 89341-33220
DEEP BLUE MC.,8X5,MARK 89341-33220
SONIC CHROME,1L1,MARK 89341-33220
SONIC IRIDIUM,1L2,MARK 89341-33220
GRAPHITE BLACK GF.,223,MARK 89341-K0060
SONIC QUARTZ,085,MARK 89341-K0060
RED MC.CS.,3R1,MARK 89341-K0060
SUNLIGHT GREEN M.M.,6X0,MARK 89341-K0060
DEEP BLUE MC.,8X5,MARK 89341-K0060
ICE ECRU M.M.,4X8,MARK 89341-K0060
SONIC TITANIUM,1J7,MARK 89341-K0060
SONIC IRIDIUM,1L2,MARK 89341-K0060
SONIC CHROME,1L1,MARK 89341-K0060
F SPORT&BLIND SPOT MONITOR-WITHOUT,WHITE NOVA GF.,083; F SPORT,WHITE NOVA GF.,083
BRUNEI SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; F SPORT,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; MALAYSIA SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220; THAILAND SPEC&F SPORT&BLIND SPOT MONITOR-WITH,HEAT BLUE CONTRAST LAYERI,8X1,MARK 89341-33220
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
89348JCLIP, ULTRASONIC SENSOR
13 parts on this diagram · 1 diagram in section
