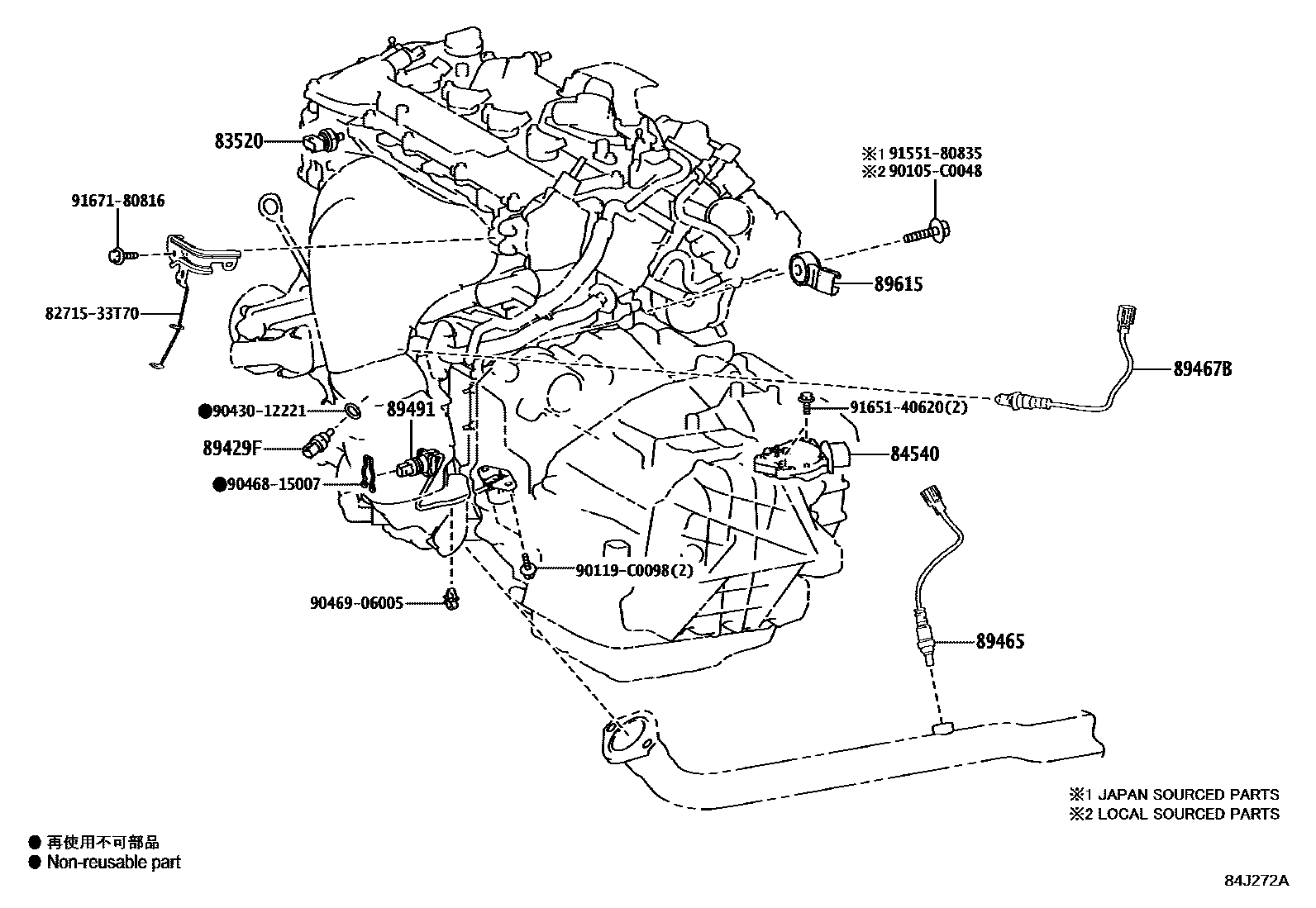

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1CONSOLE BOX 0014 1CONSOLE BOX 0015 1STEERING 0016 1STEERING 0017 1SEAT 0018 1DOOR & ROOF 0019 1FLOOR & LUGGAGE

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-33010iAXZA10,AXZH10201806-201907

main83520-60060iASZ10201806-202108

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXZA10..EUR201907-202208

main84540-33010iASZ10201806-202108

main84540-33020iAXZA10,GSZ10201806-202202

sub84540-33021

sub35572-48051

main84540-33021iAXZA10,GSZ10202202

89429FSENSOR, TEMPERATURE

main89429-12010iASZ10201806-202108

89465SENSOR, OXYGEN

main89465-33560iASZ10..CHI201806-202108

main89465-33620iGSZ10201806-202108

89467BSENSOR, AIR FUEL RATIO

main89467-06220iASZ10201806-202108

main89467-12280iMXZA10..CHI201907-202208

main89467-30130iAXZH10..CHI202208-202402

main89467-33270iGSZ10201806-202108

main89467-33290iAXZA10;AXZH10..ARL,CHI,GCC,GEN,IND201806-202208

main89467-33290iAXZH10..LHD..EUR202108

CHILE SPEC

main89467-33290iAXZH10..LHD..EUR202108

ARGENTINA SPEC

main89467-33290iAXZH10..LHD..EUR202108

MOROCCO SPEC

main89467-33290iAXZH10..LHD..EUR202108

BRAZIL SPEC

main89467-33290iAXZH10..LHD..EUR202108

PERU SPEC

main89467-33290iAXZH10..LHD..EUR202108

VIETNAM SPEC

main89467-33310iAXZH10..EUR201907-202108

main89467-47040iMXZA10..CHI202208

89491SENSOR, ENGINE OIL LEVEL

main89491-33040iASZ10201806-201808

sub89491-33042

main89491-33042iASZ10201809-202108

main89491-33051iAXZA10,AXZH10,MXZA10201806-202204

sub89491-33052

main89491-33052iMXZA10..EUR;AXZA10,AXZH10202205-202303

main89491-48020iGSZ10201806-201808

sub89491-48021

main89491-48021iGSZ10201809-202004

sub89491-48040

main89491-48040iGSZ10202005-202204

sub89491-48041

main89491-48041iGSZ10202205

89615SENSOR, KNOCK CONTROL

main89615-06010iGSZ10201806-202108

(L)

main89615-20090iMXZA10..CHI;ASZ10,AXZA10,AXZH10201806-202110

main89615-20090iGSZ10201806-202108

(J)

8271533T70BRACKET,WIRING HARNESS CLAMP

main82715-33T70

90105C0048

main90105-C0048

90119C0098

main90119-C0098

9043012221

main90430-12221

9046815007

main90468-15007

9046906005

main90469-06005

9155180835

main91551-80835

9165140620

main91651-40620

9167180816

main91671-80816

16 parts on this diagram · 19 diagrams in section
