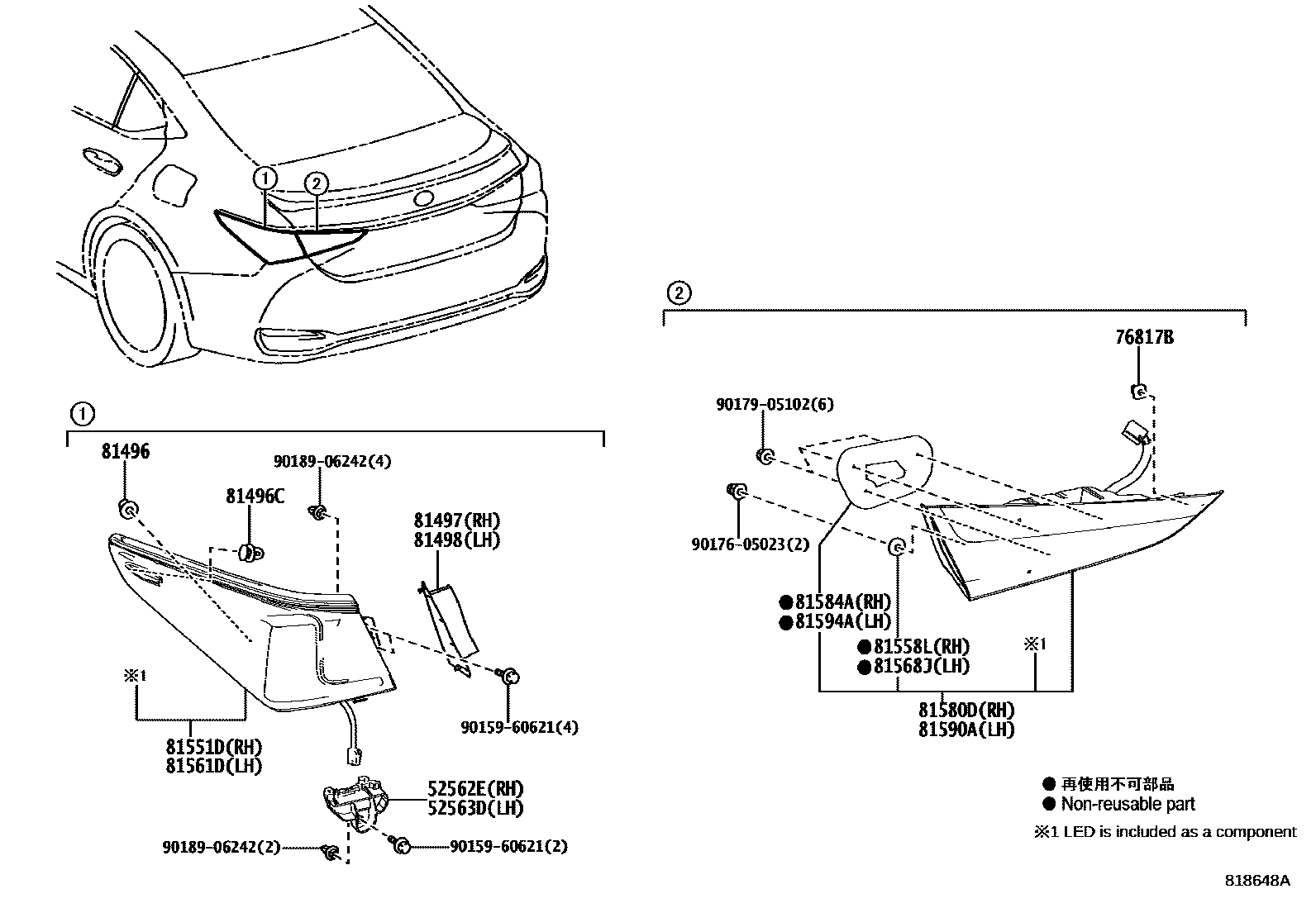

REAR COMBINATION LAMP

0001 1 0002 1 0004 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-33070iAXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND201806-202410

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-33050iAXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND201806-202410

76817BCLIP, REAR LAMP

main76817-26040iAXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND201806-202410

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAXZH10,MXZA10..CHI201806-202410

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAXZH10,MXZA10..CHI201806-202410

81497COVER, REAR COMBINATION LAMP, RH

main81497-33030iAXZH10,MXZA10..CHI201806-202410

main81497-33070iAXZH10,MXZA10..CHI202411

81498COVER, REAR COMBINATION LAMP, LH

main81498-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202410

main81498-33070iAXZH10,MXZA10..CHI202411

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33590iASZ10,AXZA10,GSZ10..EUR201806-201908

BELARUS SPEC

sub81551-33591

main81551-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

AZERBAIJAN SPEC

sub81551-33591

main81551-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

KAZAKHSTAN SPEC

sub81551-33591

main81551-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

MOLDOVA SPEC

sub81551-33591

main81551-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

GEORGIA SPEC

sub81551-33591

main81551-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

KYRGYZ SPEC

sub81551-33591

main81551-33591iASZ10,AXZA10,GSZ10..EUR201908-202104

MOLDOVA SPEC

sub81550-33592

main81551-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

AZERBAIJAN SPEC

sub81550-33592

main81551-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

BELARUS SPEC

sub81550-33592

main81551-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

KAZAKHSTAN SPEC

sub81550-33592

main81551-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

GEORGIA SPEC

sub81550-33592

main81551-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

KYRGYZ SPEC

sub81550-33592

main81551-33780iASZ10,AXZA10,GSZ10..EUR201806-201908

sub81551-33781

main81551-33781iASZ10,AXZA10,GSZ10..EUR201908-202104

sub81550-33782

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202410

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

AZERBAIJAN SPEC

sub81561-33591

main81561-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

BELARUS SPEC

sub81561-33591

main81561-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

KAZAKHSTAN SPEC

sub81561-33591

main81561-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

MOLDOVA SPEC

sub81561-33591

main81561-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

GEORGIA SPEC

sub81561-33591

main81561-33590iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201806-201908

KYRGYZ SPEC

sub81561-33591

main81561-33591iASZ10,AXZA10,GSZ10..EUR201908-202104

AZERBAIJAN SPEC

sub81560-33592

main81561-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

BELARUS SPEC

sub81560-33592

main81561-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

KAZAKHSTAN SPEC

sub81560-33592

main81561-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

MOLDOVA SPEC

sub81560-33592

main81561-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

GEORGIA SPEC

sub81560-33592

main81561-33591iAXZH10;ASZ10,AXZA10,GSZ10,MXZA10..ARL,CHI,GCC,GEN201908-202104

KYRGYZ SPEC

sub81560-33592

main81561-33780iASZ10,AXZA10,GSZ10..EUR201806-201908

sub81561-33781

main81561-33781iASZ10,AXZA10,GSZ10..EUR201908-202104

sub81560-33782

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iAXZA10,GSZ10;AXZH10,MXZA10..ARL,EUR,GCC,GEN,IND201806-202410

81580DLAMP ASSY, REAR, RH

main81580-33470iASZ10,AXZA10,GSZ10;AXZH10..CHI,EUR,GCC,GEN201806-201908

sub81580-33471

main81580-33471iASZ10,AXZA10,GSZ10,MXZA10;AXZH10..CHI,EUR,GCC,GEN,IND201908-202009

SOUTH AFRICA SPEC

sub81580-33472

main81580-33472iMXZA10..CHI;ASZ10,AXZA10,GSZ10;AXZH10..CHI,EUR,GCC,GEN,IND202010-202410

main81580-33472iAXZA10,GSZ10..CHI,EUR,GCC,GEN;AXZH10,MXZA10..EUR,GCC,GEN,IND202108

SOUTH AFRICA SPEC

main81580-33480iAXZH10..ARL201807-201907

sub81580-33481

main81580-33481iAXZH10..ARL201908-202009

PHILIPPINE SPEC

sub81580-33482

main81580-33482iAXZA10,AXZH10..ARL202108

PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81580-33482iAXZH10..ARL202010-202108

PHILIPPINE SPEC

81584AGASKET, REAR LAMP RH

main81584-33470iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202410

main81584-33640iAXZH10,MXZA10..CHI202411

81590ALAMP ASSY, REAR, LH

main81590-33470iASZ10,AXZA10,GSZ10;AXZH10..CHI,EUR,GCC,GEN201806-201908

sub81590-33471

main81590-33471iASZ10,AXZA10,GSZ10,MXZA10;AXZH10..CHI,EUR,GCC,GEN,IND201908-202009

SOUTH AFRICA SPEC

sub81590-33472

main81590-33472iAXZA10,GSZ10..CHI,EUR,GCC,GEN;AXZH10,MXZA10..EUR,GCC,GEN,IND202108

SOUTH AFRICA SPEC

main81590-33472iMXZA10..CHI;ASZ10,AXZA10,GSZ10;AXZH10..CHI,EUR,GCC,GEN,IND202010-202410

main81590-33480iAXZH10..ARL201807-201907

sub81590-33481

main81590-33481iGSZ10..GCC201908-202009

PHILIPPINE SPEC

sub81590-33482

main81590-33482iAXZH10,GSZ10..GCC202010-202108

PHILIPPINE SPEC

main81590-33482iAXZH10..GCC202108

PHILIPPINE SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

81594AGASKET, REAR LAMP LH

main81594-33470iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202410

main81594-33640iAXZH10,MXZA10..CHI202411

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

19 parts on this diagram · 3 diagrams in section
