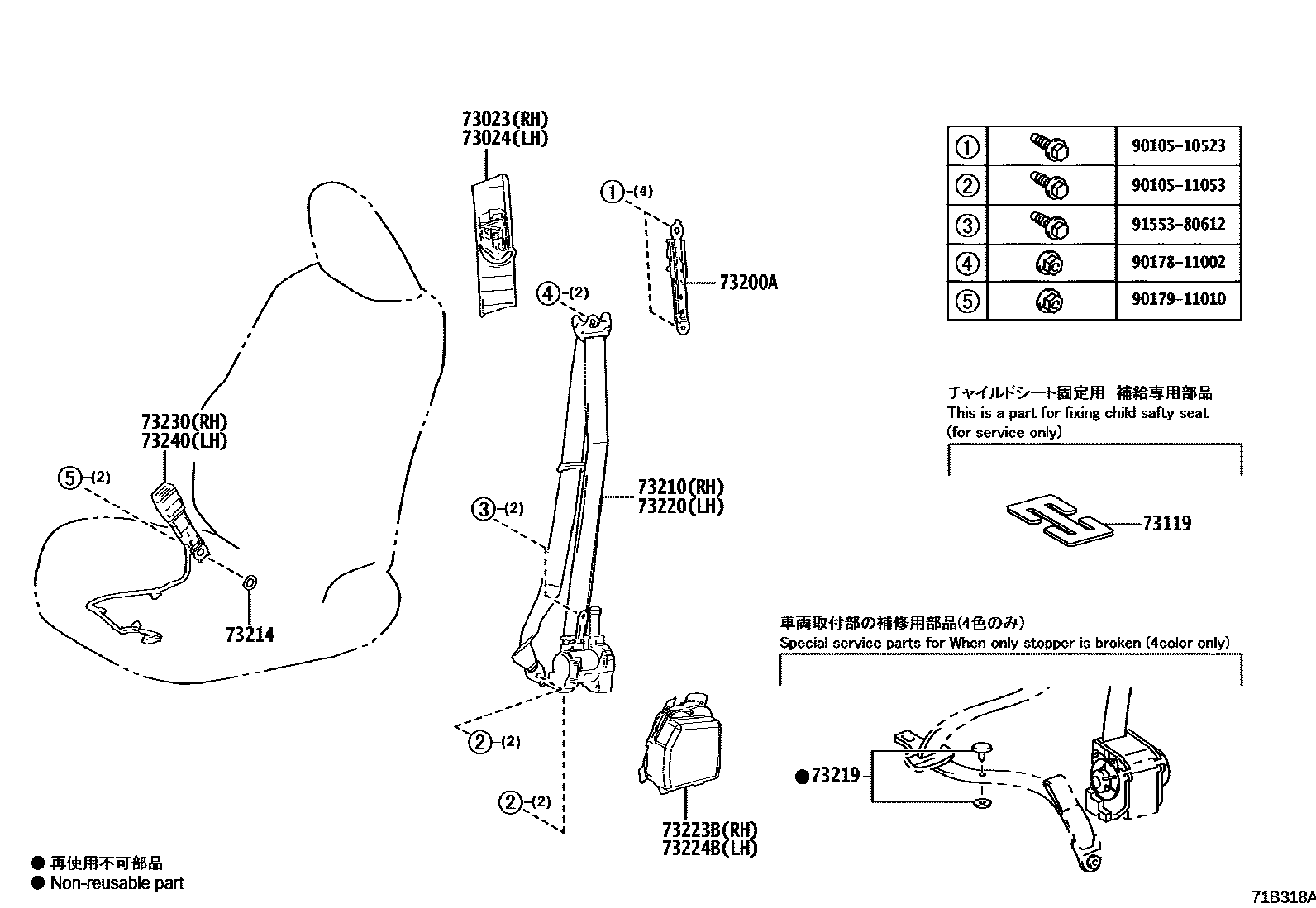

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
L WHITE,TRIM1#,20,21,22,23; L WHITE,TRIM1#,21,22,23
main73023-58010-C1iAXZA10,AXZH10..GCC; AXZH10..CHI; AXZH10..EUR;AXZA10,GSZ10..ARL,EUR; AXZH10..IND;MXZA10..EUR; GSZ10..GCC;AXZH10..ARL,GEN;AXZA10..CHI,GEN; MXZA10..CHI202108
BLACK,TRIM24,25,26,3#,40,41,42,43,7#; BLACK,TRIM24,25,26,3#,7#; BLACK,TRIM24,25,26,7#; BLACK,TRIM3#,40,41,43,7#; BLACK,TRIM3#,7#; BLACK,TRIM7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#; HAZEL,TRIM40,41,42,43,44,45,46; HAZEL,TRIM40,41,43,46
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-58010-A2iGSZ10..EUR;AXZA10,AXZH10..GEN; GSZ10..GCC;AXZA10,AXZH10..ARL,CHI,EUR; MXZA10;AXZA10,AXZH10..GCC202108
L WHITE,TRIM0#,2#,6#; L WHITE,TRIM0#,20,21,22,23,6#; L WHITE,TRIM0#,21,22,23,6#
main73024-58010-C1iAXZA10,AXZH10..GCC; AXZH10..CHI; AXZH10..EUR;AXZA10,GSZ10..ARL,EUR; AXZH10..IND;MXZA10..EUR; GSZ10..GCC;AXZH10..ARL,GEN;AXZA10..CHI,GEN; MXZA10..CHI202108
BLACK,TRIM24,25,26,3#,40,41,42,43,7#; BLACK,TRIM24,25,26,3#,7#; BLACK,TRIM24,25,26,7#; BLACK,TRIM3#,40,41,43,7#; BLACK,TRIM3#,7#; BLACK,TRIM7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#; HAZEL,TRIM40,41,42,43,44,45,46; HAZEL,TRIM40,41,43,46
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33710-C0supersedes 73210-33760-C0iAXZA10,AXZH10..CHI; AXZH10..ARL,GCC,GEN;AXZA10,GSZ10..GCC,GEN; AXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR; MXZA10..CHI202108-202207
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#; TAIWAN SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#; TAIWAN SPEC,BLACK,TRIM0#,2#,4#,6#,7#
main73210-33711-C0supersedes 73210-33761-C0iAXZA10..GEN;AXZH10,GSZ10..ARL,GCC; AXZH10,GSZ10..EUR,GEN;AXZA10,MXZA10..ARL,EUR,GCC; AXZH10,MXZA10..CHI202208
BLACK,TRIM0#,2#,3#,4#,7#; BLACK,TRIM0#,2#,4#,7#; TAIWAN SPEC,BLACK,TRIM0#,2#,4#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM0#,2#,3#,4#,7#; BLACK,TRIM00,01,03,06,09,2#,3#,4#,7#
DK. ROSE,TRIM07,08,09; DK. ROSE,TRIM09
main73210-50610-C1iAXZA10..CHI; GSZ10..EUR;AXZA10..GEN; GSZ10..GCC;AXZA10..EUR;AXZH10..ARL,EUR201907-202108
BLACK/BLACK,TRIM24,25; F SPORT,BLACK/BLACK,TRIM24,25; LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; TAIWAN SPEC&LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; TAIWAN SPEC&PREMIUM PACKAGE,BLACK/BLACK,TRIM24,25; ULTRA LUXURY PACKAGE,BLACK/BLACK,TRIM24,25
main73210-50610-C2supersedes 73210-50630-C2iASZ10,AXZA10,AXZH10..CHI; ASZ10,AXZA10..CHI; AXZA10,AXZH10..CHI; GSZ10..EUR; GSZ10..GCC;ASZ10,AXZA10,AXZH10..ARL,EUR,GCC,GEN201806-201907
BLACK/WHITE,TRIM1#,2#; BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC&PREMIUM PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC,BLACK/WHITE,TRIM1#,2#
main73210-50610-C3iGSZ10..EUR; GSZ10..GCC;AXZA10,AXZH10..EUR; GSZ10..GCC;AXZA10..EUR;AXZH10..ARL,EUR; GSZ10..GCC;AXZH10..EUR201806-201907
BLACK/BLACK,TRIM24,25; F SPORT,BLACK/BLACK,TRIM24,25; LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; ULTRA LUXURY PACKAGE,BLACK/BLACK,TRIM24,25
main73210-50610-C8iASZ10;GSZ10..GCC;AXZA10..ARL,EUR,GCC;AXZH10..ARL,EUR,GCC,GEN; AXZA10,AXZH10..CHI; AXZA10..CHI; AXZH10..CHI; AXZH10..RHD..EUR; GSZ10..EUR;AXZA10..GEN201907-202108
BLACK/WHITE,TRIM1#,2#; BLACK/WHITE,TRIM1#,21,22,23; F SPORT,BLACK/WHITE,TRIM1#,21,22,23; LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&PREMIUM PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&ULTRA LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC,BLACK/WHITE,TRIM1#,2#; ULTRA LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23
main73210-50610-E1iASZ10,GSZ10;AXZA10,AXZH10..ARL,EUR,GCC,GEN; AXZA10,AXZH10..CHI; AXZA10..CHI; AXZH10..CHI201907-202108
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&PREMIUM PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&ULTRA LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
main73210-50610-E3supersedes 73210-50630-E3iASZ10,AXZA10,AXZH10,GSZ10..ARL,EUR,GCC,GEN; ASZ10,AXZA10,AXZH10..CHI; ASZ10,AXZA10..CHI; AXZA10,AXZH10..CHI201806-201907
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&PREMIUM PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
BLACK/WHITE,TRIM1#,2#; F SPORT,BLACK/WHITE,TRIM1#,21,22,23; LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; PREMIUM PACKAGE,BLACK/WHITE,TRIM1#,21,22,23
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
F SPORT,BLAC/BLACK,TRIM24,25; LUXURY PACKAGE,BLAC/BLACK,TRIM24,25; PREMIUM PACKAGE,BLAC/BLACK,TRIM24,25
INDIA SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; INDIA SPEC&ULTRA LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#
F SPORT,BLACK/BLACK,TRIM24,25; LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; PREMIUM PACKAGE,BLACK/BLACK,TRIM24,25
INDIA SPEC&LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; INDIA SPEC&ULTRA LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33650-C2supersedes 73220-33660-C0iAXZA10,AXZH10..CHI; AXZH10..ARL,GCC,GEN;AXZA10,GSZ10..GCC,GEN; AXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR; MXZA10..CHI202108-202207
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#; TAIWAN SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#; TAIWAN SPEC,BLACK,TRIM0#,2#,4#,6#,7#
main73220-33651-C2supersedes 73220-33661-C0iAXZA10..GEN;AXZH10,GSZ10..ARL,GCC; AXZH10,GSZ10..EUR,GEN;AXZA10,MXZA10..ARL,EUR,GCC; AXZH10,MXZA10..CHI202208
BLACK,TRIM0#,2#,3#,4#,7#; BLACK,TRIM0#,2#,4#,7#; TAIWAN SPEC,BLACK,TRIM0#,2#,4#,7#
BLACK,TRIM2#,4#,6#,7#
BLACK,TRIM2#,4#
DK. ROSE,TRIM07,08,09; DK. ROSE,TRIM09
main73220-50500-C1iAXZA10..CHI; GSZ10..EUR;AXZA10..GEN; GSZ10..GCC;AXZA10..EUR;AXZH10..ARL,EUR201907-202108
BLACK/BLACK,TRIM24,25; F SPORT,BLACK/BLACK,TRIM24,25; LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; TAIWAN SPEC&LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; TAIWAN SPEC&PREMIUM PACKAGE,BLACK/BLACK,TRIM24,25; ULTRA LUXURY PACKAGE,BLACK/BLACK,TRIM24,25
main73220-50500-C2supersedes 73220-50520-C2iASZ10,AXZA10,AXZH10..CHI; ASZ10,AXZA10..CHI; AXZA10,AXZH10..CHI; GSZ10..EUR; GSZ10..GCC;ASZ10,AXZA10,AXZH10..ARL,EUR,GCC,GEN201806-201907
BLACK/WHITE,TRIM1#,2#; BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC&PREMIUM PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC,BLACK/WHITE,TRIM1#,2#
main73220-50500-C3iGSZ10..EUR; GSZ10..GCC;AXZA10,AXZH10..EUR; GSZ10..GCC;AXZA10..EUR;AXZH10..ARL,EUR; GSZ10..GCC;AXZH10..EUR201806-201907
BLACK/BLACK,TRIM24,25; F SPORT,BLACK/BLACK,TRIM24,25; LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; ULTRA LUXURY PACKAGE,BLACK/BLACK,TRIM24,25
main73220-50500-C9iASZ10;GSZ10..GCC;AXZA10..ARL,EUR,GCC;AXZH10..ARL,EUR,GCC,GEN; AXZA10,AXZH10..CHI; AXZA10..CHI; AXZH10..CHI; AXZH10..RHD..EUR; GSZ10..EUR;AXZA10..GEN201907-202108
BLACK/WHITE,TRIM1#,2#; BLACK/WHITE,TRIM1#,21,22,23; F SPORT,BLACK/WHITE,TRIM1#,21,22,23; LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&PREMIUM PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; TAIWAN SPEC&ULTRA LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; TAIWAN SPEC,BLACK/WHITE,TRIM1#,2#; ULTRA LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23
main73220-50500-E1iASZ10,GSZ10;AXZA10,AXZH10..ARL,EUR,GCC,GEN; AXZA10,AXZH10..CHI; AXZA10..CHI; AXZH10..CHI201907-202108
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&PREMIUM PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&ULTRA LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
main73220-50500-E3supersedes 73220-50520-E3iASZ10,AXZA10,AXZH10,GSZ10..ARL,EUR,GCC,GEN; ASZ10,AXZA10,AXZH10..CHI; ASZ10,AXZA10..CHI; AXZA10,AXZH10..CHI201806-201907
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&PREMIUM PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
BLACK/WHITE,TRIM1#,2#; F SPORT,BLACK/WHITE,TRIM1#,21,22,23; LUXURY PACKAGE,BLACK/WHITE,TRIM1#,21,22,23; PREMIUM PACKAGE,BLACK/WHITE,TRIM1#,21,22,23
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
F SPORT,BLAC/BLACK,TRIM24,25; LUXURY PACKAGE,BLAC/BLACK,TRIM24,25; PREMIUM PACKAGE,BLAC/BLACK,TRIM24,25
INDIA SPEC&LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#; INDIA SPEC&ULTRA LUXURY PACKAGE,BLACK/WHITE,TRIM1#,2#
F SPORT,BLACK/BLACK,TRIM24,25; LUXURY PACKAGE,BLACK/BLACK,TRIM24,25; PREMIUM PACKAGE,BLACK/BLACK,TRIM24,25
INDIA SPEC&LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#; INDIA SPEC&ULTRA LUXURY PACKAGE,NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33A20-C0iASZ10,AXZA10,MXZA10..CHI; ASZ10..EUR;GSZ10..GCC;AXZA10,AXZH10..LHD; AXZA10,AXZH10..CHI; AXZA10..CHI; GSZ10..EUR; GSZ10..GCC;AXZA10..CHI;AXZH10..LHD..EUR; GSZ10..GCC;AXZH10..LHD;ASZ10,AXZA10..EUR,GCC201806-202108
BLACK,TRIM1#,2#; F SPORT,BLACK,TRIM1#,2#; LUXURY PACKAGE,BLACK,TRIM1#,2#; PREMIUM PACKAGE,BLACK,TRIM1#,2#; TAIWAN SPEC&LUXURY PACKAGE,BLACK,TRIM1#,2#; TAIWAN SPEC&PREMIUM PACKAGE,BLACK,TRIM1#,2#; ULTRA LUXURY PACKAGE,BLACK,TRIM1#,2#
main73230-33A20-E0iASZ10,AXZA10,MXZA10..CHI; ASZ10..EUR;GSZ10..GCC;AXZA10,AXZH10..LHD; AXZA10,AXZH10..CHI; AXZA10..CHI; GSZ10..EUR; GSZ10..GCC;AXZA10..CHI;AXZH10..LHD..EUR; GSZ10..GCC;AXZH10..LHD;ASZ10,AXZA10..EUR,GCC201806-202108
F SPORT,NOBLE BROWN,TRIM5#,6#; LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#; NOBLE BROWN,TRIM5#,6#; PREMIUM PACKAGE,NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#; TAIWAN SPEC&PREMIUM PACKAGE,NOBLE BROWN,TRIM5#,6#; ULTRA LUXURY PACKAGE,NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
9010510523
main90105-10523
9010511053
main90105-11053
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
17 parts on this diagram · 2 diagrams in section
