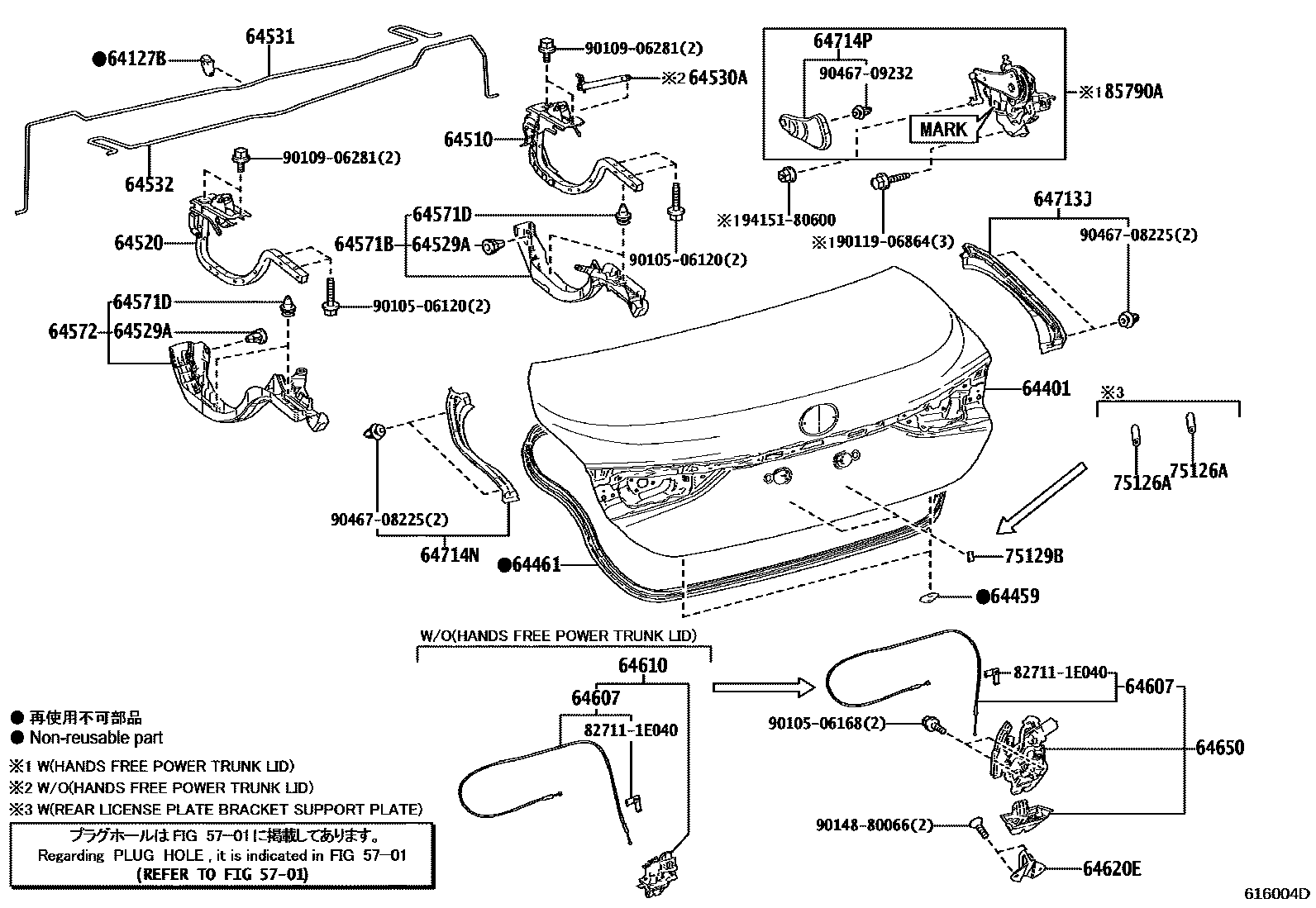

LUGGAGE COMPARTMENT DOOR & LOCK

5701

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33840iMXZA10..CHI201806-202411

main64401-33850iAXZH10..CHI201807-202411

main64401-33860iMXZA10..CHI201806-202108

TAIWAN SPEC

main64401-33860iAXZA10..CHI201907-202108

main64401-33870iAXZH10..ARL,EUR,GCC,GEN,IND202108

F SPORT

main64401-33870iAXZH10..ARL,EUR,GCC,GEN,IND201807-202110

main64401-33870iAXZH10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

main64401-33B40iMXZA10..CHI202411

main64401-33B50iAXZH10..CHI202411

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33130iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202411

main64461-33170iAXZH10..CHI202411

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33220iAXZA10,AXZH10,MXZA10..CHI201907-202012

sub64510-33221

main64510-33221iAXZA10,AXZH10,MXZA10..CHI202101-202402

main64510-33270iAXZH10..IND202001-202012

sub64510-33271

main64510-33271iAXZH10..IND202101-202110

main64510-33280iAXZA10,AXZH10..CHI201806-202012

sub64510-33281

main64510-33281iASZ10,AXZA10,AXZH10,GSZ10..ARL,EUR,GCC,GEN202101-202108

TAIWAN SPEC

main64510-33281iAXZA10..CHI202402

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-33100iAXZA10,AXZH10,MXZA10..CHI201907-202012

sub64520-33101

main64520-33101iAXZA10..CHI202101-202402

main64520-33130iASZ10,GSZ10;AXZA10,AXZH10..ARL,EUR,GCC,GEN,IND201806-202012

sub64520-33131

main64520-33131iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC&HANDS FREE POWER TRUNK LID-WITH

main64520-33131iAXZH10,MXZA10..CHI202108

TAIWAN SPEC

main64520-33131iAXZA10..CHI202101-202110

64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE

main64529-30180iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W220iAXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN201806-202108

HANDS FREE POWER TRUNK LID-WITH

main64530-0W220iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN201806-202108

ULTRA LUXURY PACKAGE

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33300iASZ10,AXZA10,GSZ10,MXZA10201806-201911

F SPORT&HANDS FREE POWER TRUNK LID-WITH

sub64531-33340

main64531-33330iAXZH10201807-201911

sub64531-33360

main64531-33340iAXZH10..ARL,CHI,EUR,GCC,GEN202108

HANDS FREE POWER TRUNK LID-WITH

main64531-33340iAXZH10..IND;MXZA10..CHI;ASZ10,AXZA10,GSZ10201911-202110

main64531-33340iAXZH10..IND;AXZA10,GSZ10,MXZA10202108

F SPORT&HANDS FREE POWER TRUNK LID-WITH

main64531-33360iAXZH10..ARL,CHI,EUR,GCC,GEN201912-202108

F SPORT

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33300iASZ10,AXZA10,GSZ10,MXZA10201806-201911

F SPORT&HANDS FREE POWER TRUNK LID-WITH

sub64532-33340

main64532-33330iAXZH10201807-201911

sub64532-33360

main64532-33340iGSZ10;AXZA10..ARL,CHI,EUR,GEN202108

HANDS FREE POWER TRUNK LID-WITH

main64532-33340iAXZH10..IND;MXZA10..CHI;ASZ10,AXZA10,GSZ10201911-202110

main64532-33340iAXZH10..IND;AXZA10,GSZ10,MXZA10202108

F SPORT&HANDS FREE POWER TRUNK LID-WITH

main64532-33360iGSZ10;AXZA10..CHI,EUR201912-202108

F SPORT

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-33091iAXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN201806-202108

main64571-33101iAXZH10..IND202001-202110

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main62217-13010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

main90467-09232iASZ10,AXZA10,AXZH10,GSZ10201806-201809

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-33071iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33340iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN201806-202108

main64607-33370iAXZH10..IND202001-202110

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33210iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GCC,GEN201806-202108

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

64650CLOSER ASSY, LUGGAGE DOOR

main64650-33040iAXZH10..IND202001-202110

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-33070iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-33060iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

64714PCOVER, DECK SIDE TRIM, RH

main64714-33070iAXZH10..IND202001-202110

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-78010iASZ10..CHI201806-202402

75129BCUSHION, REAR LICENCE PLATE

main75129-30010iASZ10,AXZA10,AXZH10,GSZ10..ARL,EUR,GCC,GEN,IND201806-202110

main75129-30010iAXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN,IND202108

TAIWAN SPEC

85790AMOTOR ASSY, LUGGAGE CLOSER

main85790-33020iAXZH10..IND202001-202110

main85790-33030iAXZH10..IND202110-202208

MARK = 975

main85790-33031iAXZH10..IND202208

MARK = 223

main85790-33031iAXZH10..IND202208

HANDS FREE POWER TRUNK LID-WITH,MARK = 223

827111E040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E040

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9011906864

main90119-06864

9014880066

main90148-80066

9046708225

main90467-08225

9046709232

main90467-09232

9415180600

main94151-80600

33 parts on this diagram · 1 diagram in section
