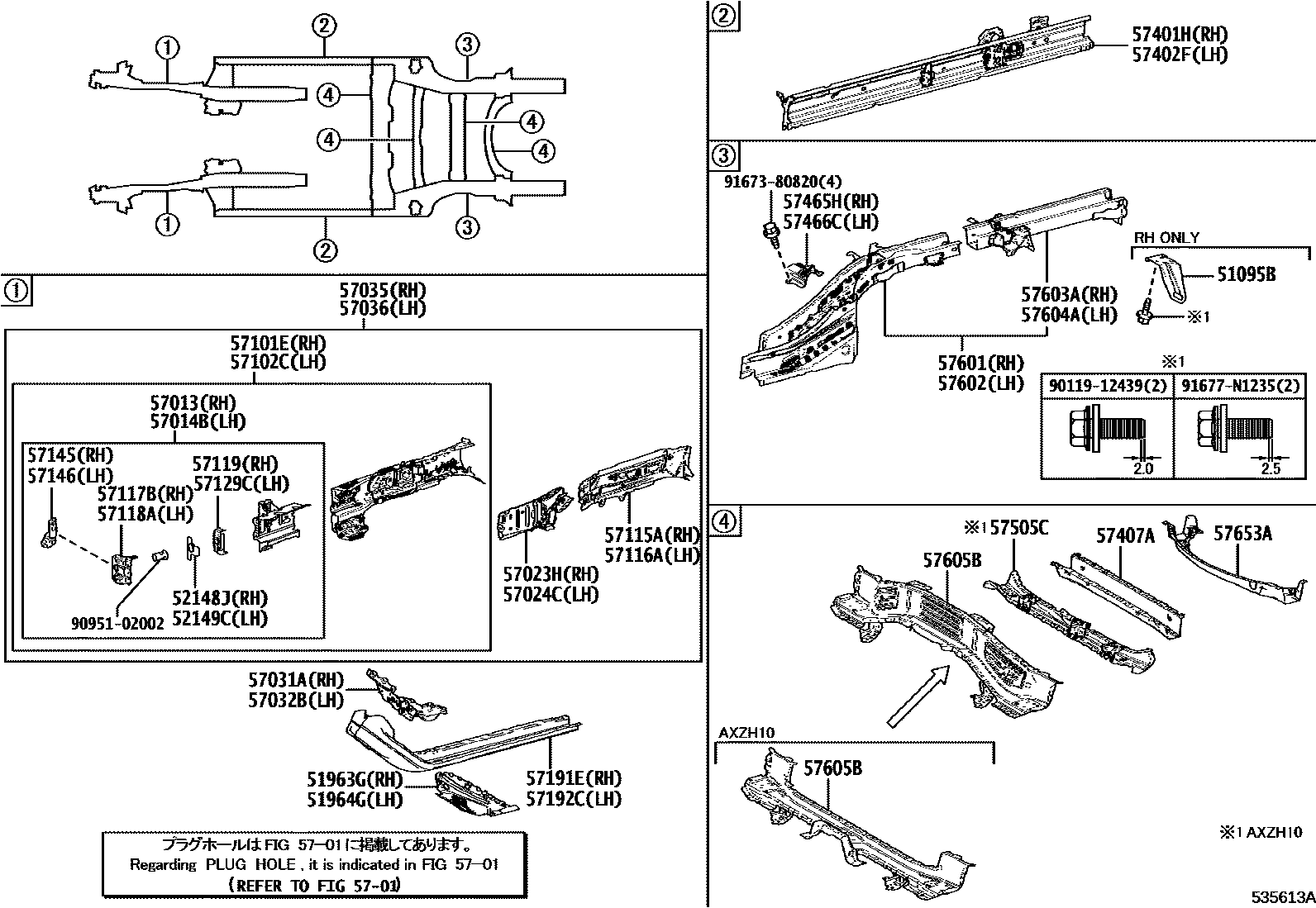

FLOOR SIDE MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

51963GHOOK, TRANSPORT, FRONT RH

main51093-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

51964GHOOK, TRANSPORT, FRONT LH

main51094-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

52148JSTOPPER, FRONT BUMPER REINFORCEMENT, RH

main52148-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

52149CSTOPPER, FRONT BUMPER REINFORCEMENT, LH

main52149-33020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

5701HOLE PLUG

→ Go to FIG 57-01

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

main57014-33011iAXZA10,AXZH10,GSZ10,MXZA10202401

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-33020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-33020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-33040iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-33070iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33900iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33900iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33060iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33060iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57129CPLATE, FRONT SIDE MEMBER, FRONT LH

main57129-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57145PLATE, FRONT SIDE MEMBER, CENTER RH

main57145-33040iAXZA10,AXZH10,GSZ10,MXZA10202108-202312

main57145-33041iAXZA10,AXZH10,GSZ10,MXZA10202401

57146PLATE, FRONT SIDE MEMBER, CENTER LH

main57146-33040iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

main57146-33041iAXZA10,AXZH10,GSZ10,MXZA10202401

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-33020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-33020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-33150iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-33170iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-33010iASZ10,AXZA10,AXZH10,GSZ10,MXZA10201806-202101

main57407-33011iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10202101-202110

57465HGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-33020iASZ10,AXZA10,AXZH10,GSZ10201806-201906

main57465-33021iAXZA10,AXZH10,GSZ10,MXZA10202108

57466CGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-33010iAXZA10,AXZH10,GSZ10,MXZA10202108

57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-33010iAXZH10201807-202110

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-33240iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-33190iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-33030iAXZA10,AXZH10,GSZ10,MXZA10202108

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-33030iAXZA10,AXZH10,GSZ10,MXZA10202108

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33130iASZ10,AXZA10,GSZ10,MXZA10201806-201910

main57605-33131iAXZA10,GSZ10,MXZA10202108

main57605-33140iAXZH10201807-202110

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-33100iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

9011912439

main90119-12439

9095102002

main90951-02002

9167380820

main91673-80820

91677N1235

main91677-N1235

42 parts on this diagram · 1 diagram in section
