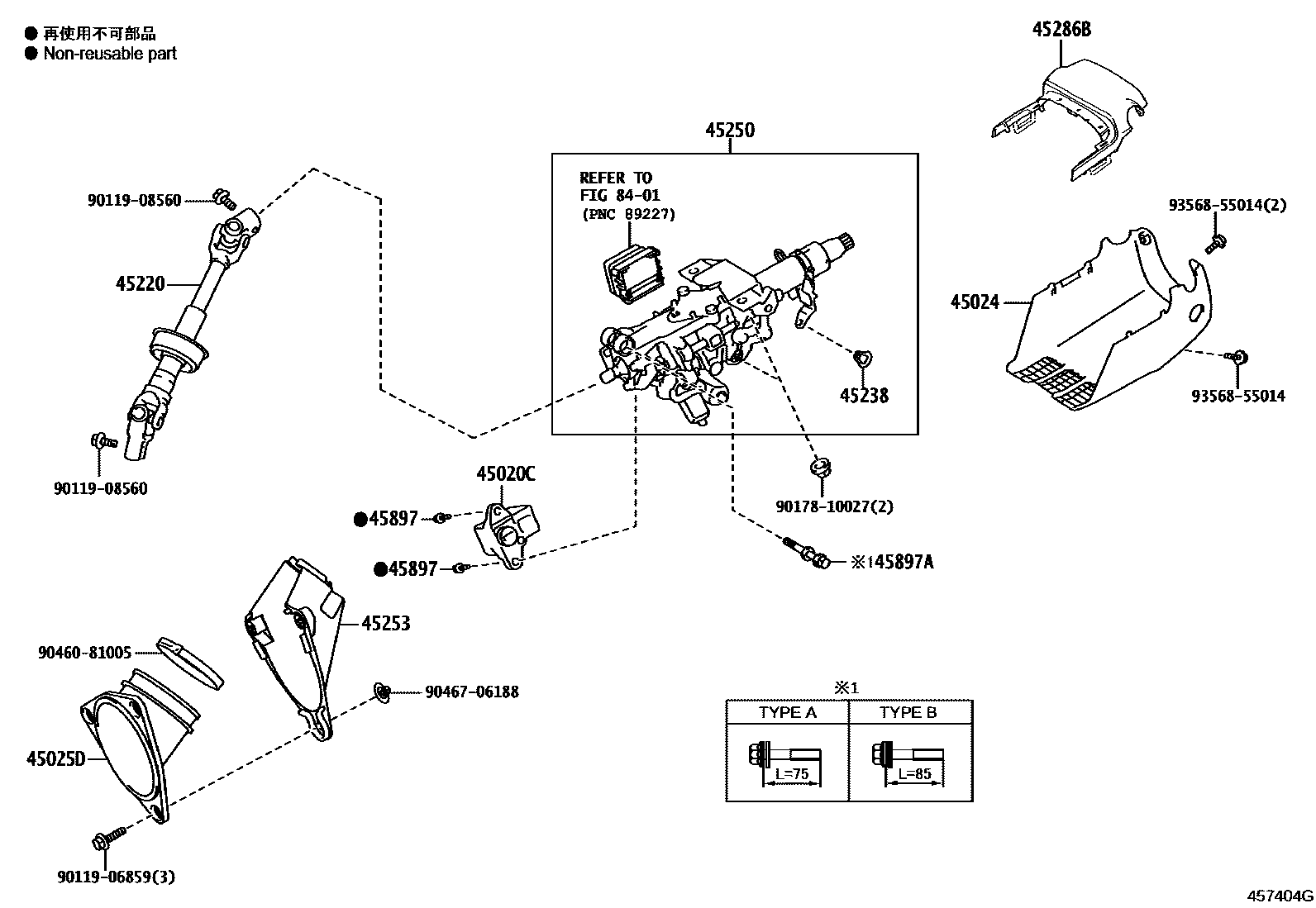

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
F SPORT; SOUTH AFRICA SPEC
main45020-33260supersedes 45020-33250iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,GCC,GEN; ASZ10,AXZA10,GSZ10..EUR; AXZA10,GSZ10..EUR201806-202108
AZERBAIJAN SPEC; BELARUS SPEC; GEORGIA SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; MOLDOVA SPEC; UKRAINE SPEC
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
main45024-11010-C1supersedes 45024-33250-C0iAXZA10,AXZH10,GSZ10,MXZA10..EUR; AXZA10..ARL; AXZH10..ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10..CHI,GCC,GEN202108
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#; F SPORT,BLACK,TRIM0#,2#,4#,6#,7#; SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45286BCOVER, STEERING COLUMN, UPR
main45286-11010-C1iAXZH10..ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10..CHI,GCC,GEN; AXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR202108
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,4#,6#,7#
NOBLE BROWN,TRIM5#,6#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
8401SWITCH & RELAY & COMPUTER
9011906859
main90119-06859
9011908560
main90119-08560
9017810027
main90178-10027
9046081005
main90460-81005
9046706188
main90467-06188
9356855014
main93568-55014
17 parts on this diagram · 3 diagrams in section
