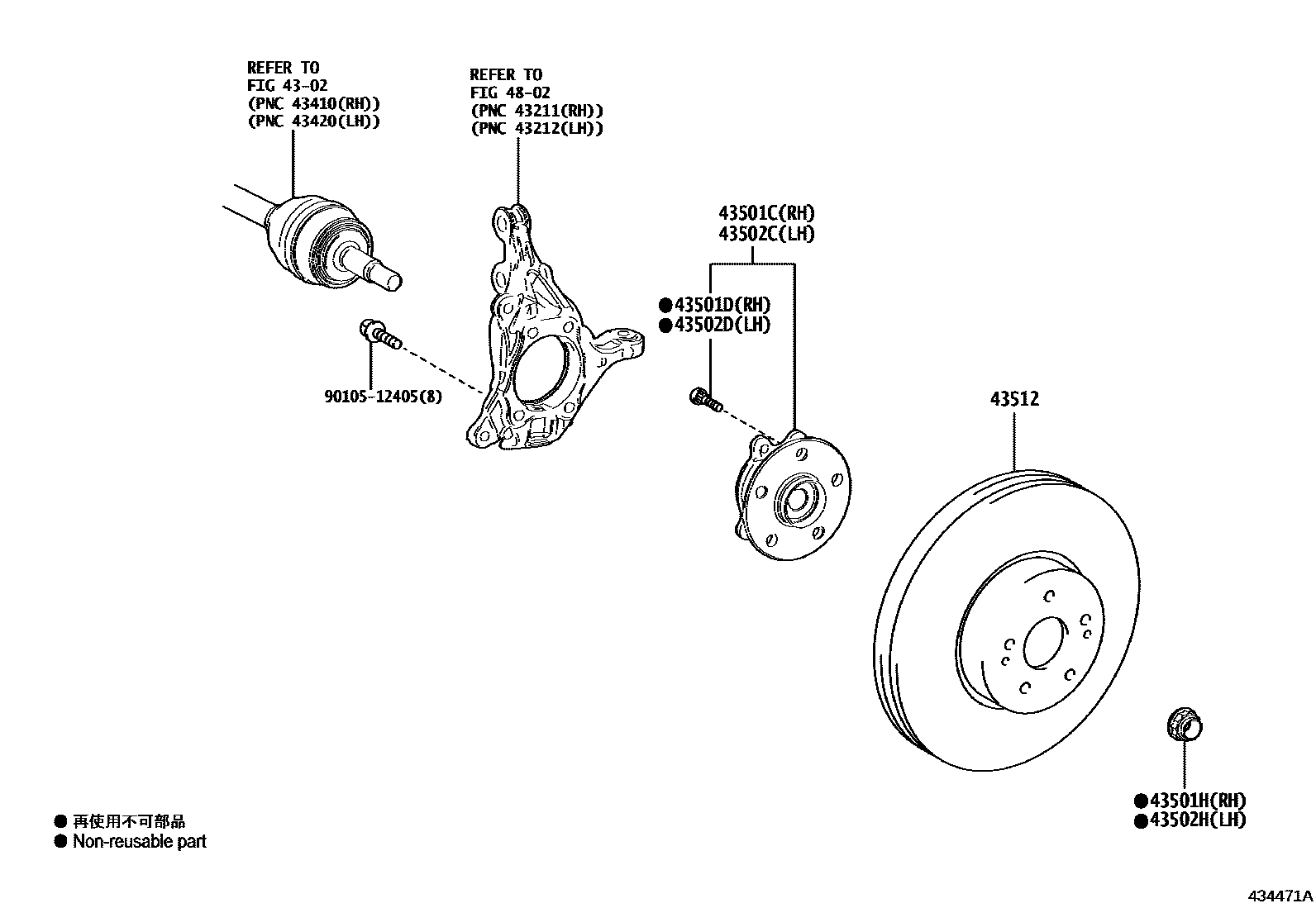

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33010iASZ10,AXZA10..ARL,EUR,GCC,GEN201806-202108

main43550-33020iGSZ10;AXZH10..IND202108-202302

main43550-33050iAXZH10..CHI201807-202108

main43550-33070iASZ10,AXZA10,MXZA10..CHI201806-202108

main43550-33090iAXZA10,AXZH10,MXZA10..ARL,CHI,EUR,GCC,GEN202402

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXZA10,AXZH10,GSZ10,MXZA10202108

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33010iAXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN202108-202302

main43550-33020iGSZ10;AXZH10..IND202108-202302

main43550-33050iGSZ10;AXZH10..IND202302

main43550-33070iAXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN202302-202401

main43550-33090iAXZA10,AXZH10,MXZA10..ARL,CHI,EUR,GCC,GEN202402

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

43512DISC, FRONT

main43512-48130×2iGSZ10..GCC;AXZH10..EUR201806-202108

main43512-76010×2iGSZ10..EUR;ASZ10,AXZA10;AXZH10,MXZA10..ARL,CHI,GCC,GEN,IND201806-202110

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section
