THROTTLE LINK & VALVE LEVER (ATM)

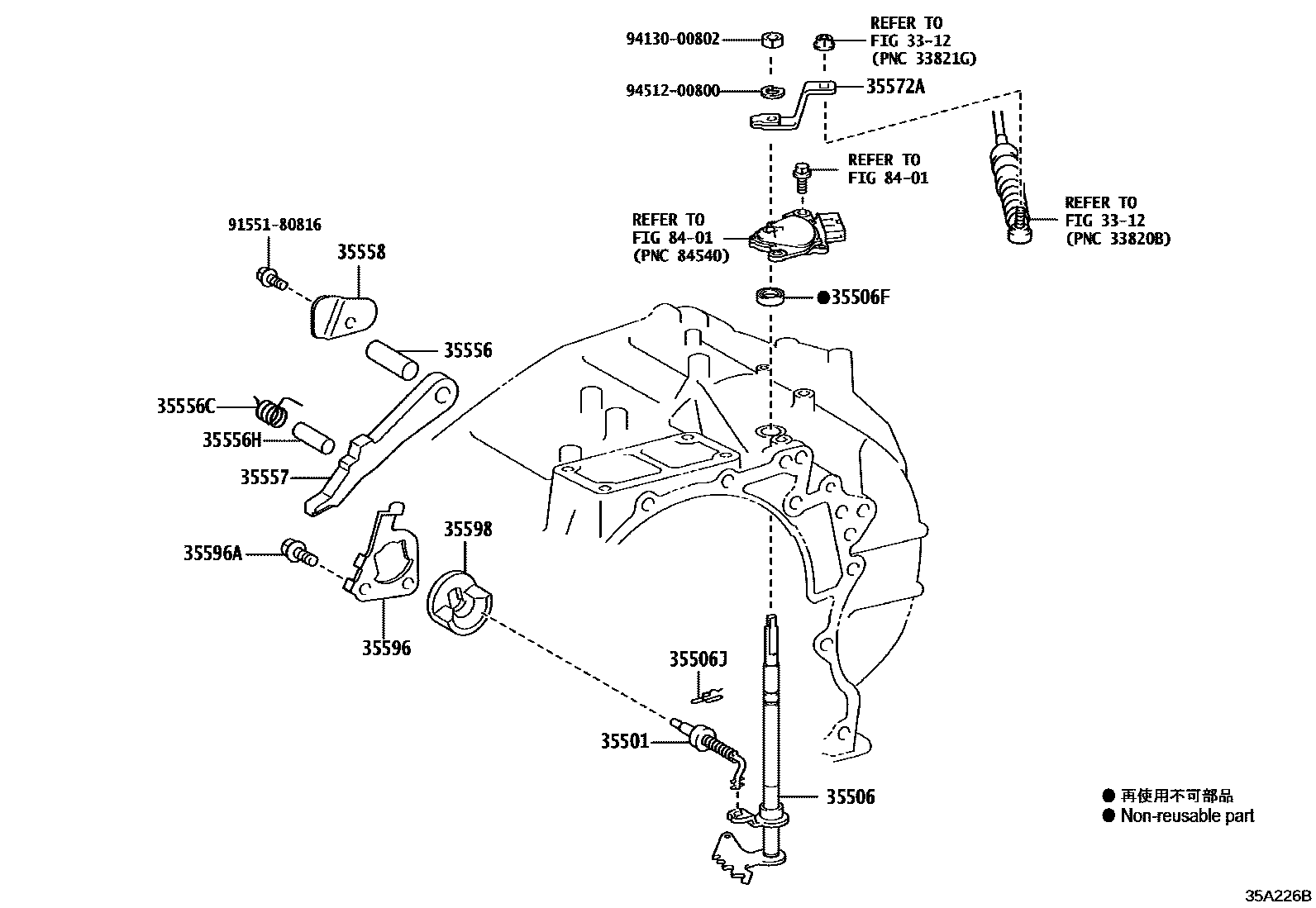

Parts diagram

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020i201806-202108

main35501-33030i202108

main35501-48040i202006-202108

AISIN AW:REFER 35-01

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011i201806-202108

main35506-33030i202108-202202

main35506-33031i202202-202210

main35506-33041i202403

main35506-48010i201806-201905

TOYOTA:REFER 35-01

main35506-48011i201906-202004

TOYOTA:REFER 35-01

main35506-48021i202108-202202

main35506-48022i202202

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002i201806-202007

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002i201806-202108

main90524-09004i202108

35556SHAFT, PARKING LOCK PAWL

main35556-33020i201806-202108

main35556-48030i201806-202108

main35556-48040i202108

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21008i201806-202007

35556HSHAFT, PARKING LOCK PAWL

main35556-33030i201806-202007

35557PAWL, PARKING LOCK

main35557-33040i202108

main35557-48040i202006-202108

AISIN AW:REFER 35-01

main35557-73010i201806-202108

35558CLAMP, PAWL SHAFT

main35558-33020i201806-202007

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020i201806-202108

main35572-48050i201806-202004

TOYOTA:REFER 35-01

main35572-48051i202111

35596PLATE, PAWL STOPPER

main35596-33020i201806-202108

main35596-48030i202108

main35596-73010i201806-202108

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816×2i201806-202007

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010i201806-202108

main35598-48040i201806-202004

TOYOTA:REFER 35-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
