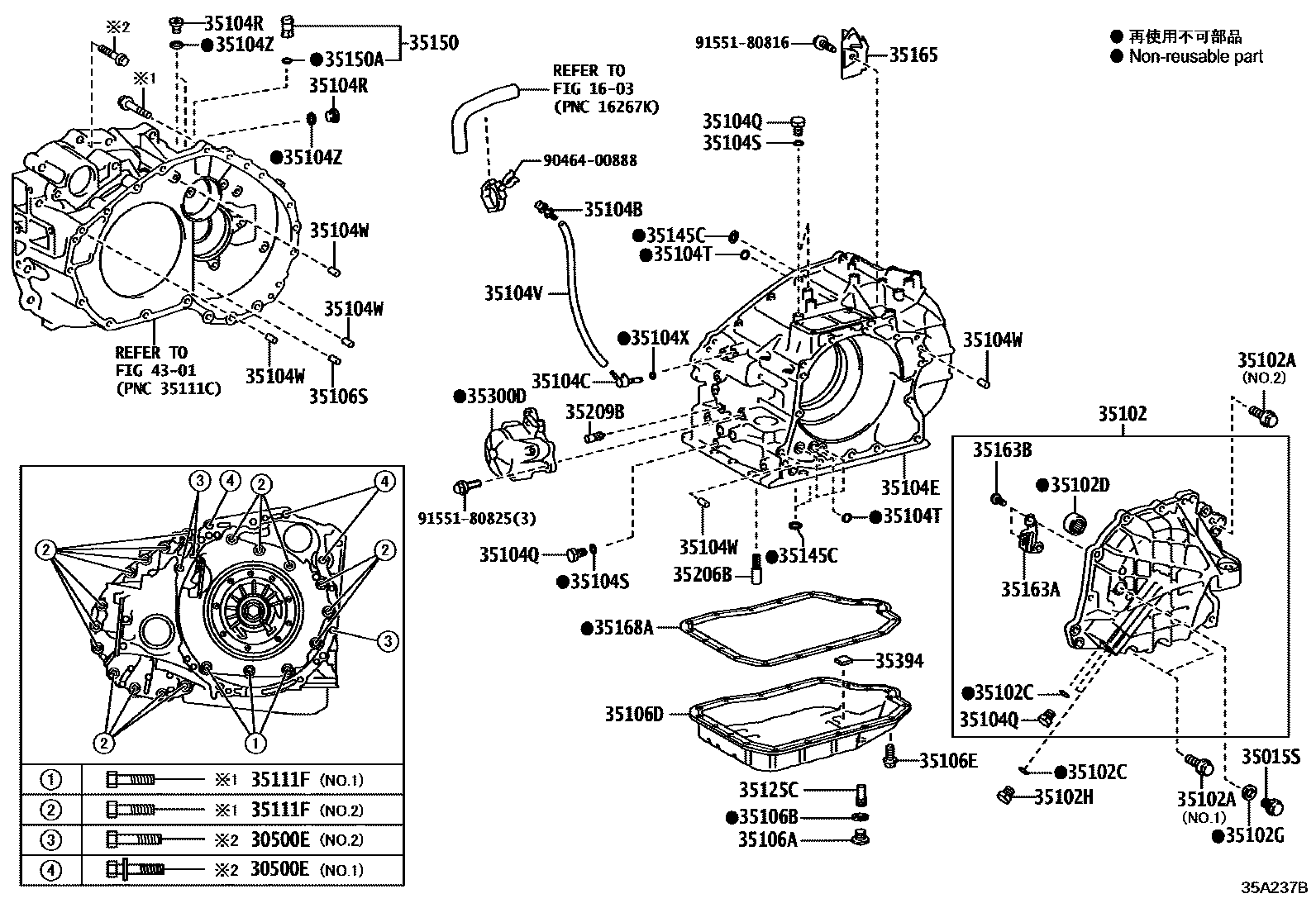

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U761E 0002 1UB80E 0003 1UA80E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSZ10201806-202108

*10-1.25PX41-28,NO.2:REFER ILLUST.

main90105-10591iAXZA10201806-202108

*10-1.25PX45-36,NO.1:REFER ILLUST.

main90119-12168×3iASZ10..EUR; GSZ10201806-202108

*12-1.25PX55-30,NO.1:REFER ILLUST.

main91512-61050×2iASZ10..EUR201806-202108

*10-1.25PX50-30,NO.2:REFER ILLUST.

main91552-81250×2iAXZA10201806-202108

*12-1.25PX50-30,NO.2:REFER ILLUST.

main91553-80830iAXZA10201806-202108

*8-1.25PX35-22,NO.3:REFER ILLUST.

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASZ10..CHI201806-202007

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33120iASZ10..CHI201806-202007

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iASZ10..CHI201806-202007

*8-1.25PX28-22,NO.1:REFER ILLUST.

main91551-00828×12iASZ10..EUR201806-202108

*8-1.25PX28-22,NO.2:REFER ILLUST.

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iASZ10..EUR201806-202108

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iASZ10..CHI201806-202007

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iASZ10..CHI201806-202007

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iASZ10..CHI201806-202007

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iASZ10201806-202108

main90930-03230iAXZA10,GSZ10202108

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iASZ10..EUR201806-202108

main90930-03216iAXZA10,GSZ10201806-202108

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33130iAXZA10202108-202403

main35104-33140iAXZA10202403

main35104-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

main35104-48040iGSZ10202108

main35141-33180iASZ10201806-202108

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iGSZ10201806-202004

TOYOTA:REFER 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iASZ10; AXZA10201806-202108

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iGSZ10202006-202108

AISIN AW:REFER 35-01

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iASZ10..EUR201806-202108

35104VHOSE (FOR BREATHER PLUG)

main35121-33051iASZ10..CHI201806-202007

main35121-33060iGSZ10202108

main35121-33070iAXZA10201806-202108

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASZ10..CHI201806-202007

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iASZ10201806-202108

main90301-08015iAXZA10..GCC202403

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iASZ10; AXZA10201806-202108

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASZ10201806-202108

main90341-18023iAXZA10201806-202108

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASZ10201806-202108

main90430-18008iGSZ10202006-202108

AISIN AW:REFER 35-01

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-73021iASZ10..EUR201806-202108

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iASZ10..CHI201806-202007

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iASZ10..EUR201806-202108

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iASZ10201806-202108

*8-1.25PX45-22,NO.1:REFER ILLUST.

main91551-00835×11iAXZA10; GSZ10202108

*8-1.25PX35-22,NO.2:REFER ILLUST.

main91551-00840×9iGSZ10201806-202004

*8-1.25PX40-22,*229,NO.1:REF.ILLUST

main91551-10845×17iASZ10201806-202108

*8-1.25PX45-22,NO.2:REFER ILLUST.

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33100iASZ10201806-202108

main35125-33110iAXZA10202108

main35125-48090iGSZ10202006-202108

AISIN AW:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-33010×3iAXZA10201806-202102

main35145-33020×3iAXZA10; GSZ10202103-202107

AISIN AW:REFER 35-01

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASZ10,AXZA10,GSZ10201806-202108

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iASZ10..CHI201806-202007

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iASZ10..CHI201806-202007

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iASZ10..CHI201806-202007

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010iASZ10..EUR201806-202108

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-73010iASZ10..EUR201806-202108

35206BVALVE SUB-ASSY, CHECK, NO.1

main35206-48010iASZ10..CHI201806-202007

35209BVALVE SUB-ASSY, TRANSAXLE OIL CHECK

main35209-48010iASZ10..CHI201806-202007

35300DPUMP ASSY, OIL W/MOTOR

main35300-48030iASZ10..CHI201806-202007

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iASZ10201806-202108

main35394-48010×3iAXZA10,GSZ10202108

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9046400888

main90464-00888

9155180816

main91551-80816

9155180825

main91551-80825

42 parts on this diagram · 3 diagrams in section
