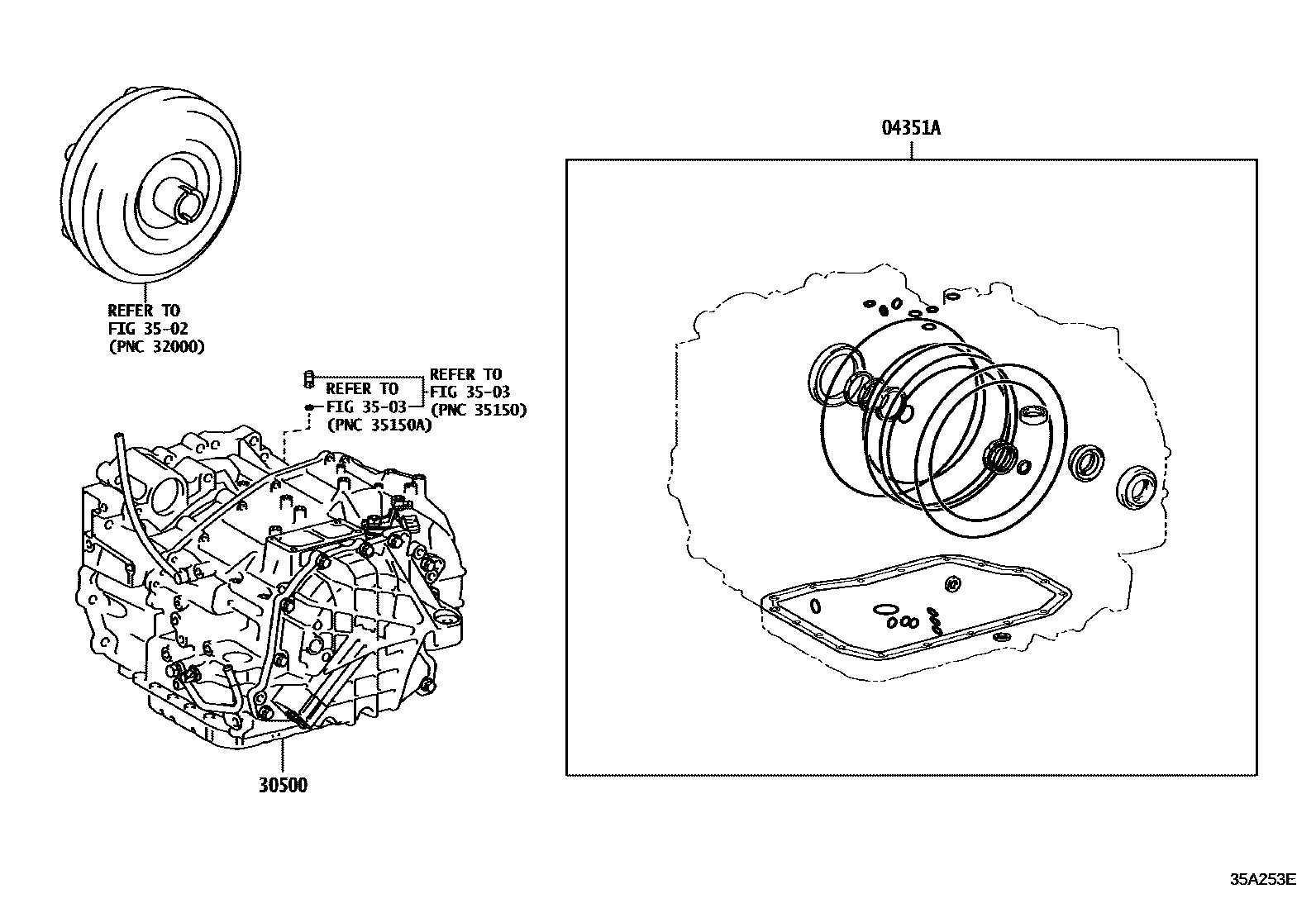

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U761E 0002 1UB80E 0003 1UA80E 0004 1UA80E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33570iGSZ10201806-202004

TOYOTA:REF.ILLUST

main04351-33580iAXZA10201806-202103

main04351-33581iAXZA10202108-202403

main04351-33591iAXZA10..GCC202403

main04351-33600iASZ10201806-201904

main04351-33601iASZ10201904-202108

main04351-33611iAXZA10..ARL,CHI,EUR,GEN202403

main04351-45040iGSZ10202006-202101

AISIN AW:REF.ILLUST

main04351-45070iGSZ10202101-202103

AISIN AW:REF.ILLUST

main04351-45071iGSZ10202103-202108

AISIN AW:REF.ILLUST

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33840iASZ10201806-202108

U761E

main30500-33851iAXZA10..GCC201806-202107

UB80E

main30500-33861iGSZ10201806-202004

UA80E,TOYOTA:REF.ILLUST

main30500-33871iAXZA10..GCC202403

UB80E

main30500-33881iAXZA10..ARL,CHI,EUR,GEN201806-202107

UB80E

main30500-33891iAXZA10..ARL,CHI,EUR,GEN202403

UB80E

main30500-33A01iGSZ10202108

UA80E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 4 diagrams in section
