22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V020i201806-202108

main22030-24010i201907-202108

main22030-25010i201806-202108

main22030-25020i202108

main22030-31090i202108

22271GASKET, THROTTLE BODY

main22271-0T010i201806-202108

main22271-24010i202108

main22271-25010i202108

main22271-25020i201807-202110

main22271-31040i202108

23021PUMP SUB-ASSY, FUEL W/SEAL

main23021-36041i201806-202007

23214APROTECTOR, FUEL PUMP

main23214-31010i202108

main23214-36060i201806-202007

23224DGASKET, FUEL PUMP SPACER

main23224-0V010i201806-202108

main23224-25010i201806-202107

main23224-25011i202108

main23224-31020i201806-202108

main23224-31021i202112

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i201907-202108

(J)

main90301-A0036×4i202006-202110

(L)

main90301-C0072×4i202108

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-0V020-01×4i201806-202108

MARK 1,REFER REPAIR MANUAL

main23209-0V020-02×4i201806-202108

MARK 2,REFER REPAIR MANUAL

main23209-0V020-03×4i201806-202108

MARK 3,REFER REPAIR MANUAL

main23209-24010-01×4i201907-202108

MARK 1,REFER REPAIR MANUAL

main23209-24010-02×4i201907-202108

MARK 2,REFER REPAIR MANUAL

main23209-24010-03×4i202108

MARK 3,REFER REPAIR MANUAL

main23209-24010-04×4i202108

MARK 4,REFER REPAIR MANUAL

main23209-24010-05×4i201907-202108

MARK 5,REFER REPAIR MANUAL

main23209-24010-06×4i202108

MARK 6,REFER REPAIR MANUAL

main23209-24010-07×4i202108

MARK 7,REFER REPAIR MANUAL

main23209-24010-08×4i202108

MARK 8,REFER REPAIR MANUAL

main23209-24010-09×4i201907-202108

MARK 9,REFER REPAIR MANUAL

main23209-25010-01×4i201806-202110

MARK 1,REFER REPAIR MANUAL

main23209-25010-02×4i202108

MARK 2,REFER REPAIR MANUAL

main23209-25010-03×4i201806-202110

MARK 3,REFER REPAIR MANUAL

main23209-25010-04×4i201806-202110

MARK 4,REFER REPAIR MANUAL

main23209-25010-05×4i202108

MARK 5,REFER REPAIR MANUAL

main23209-25010-06×4i201806-202110

MARK 6,REFER REPAIR MANUAL

main23209-25010-07×4i202108

MARK 7,REFER REPAIR MANUAL

main23209-25010-08×4i201806-202110

MARK 8,REFER REPAIR MANUAL

main23209-25010-09×4i201806-202110

MARK 9,REFER REPAIR MANUAL

main23209-31170-06×6i202108

MARK 6

main23209-31170-07×6i202108

MARK 7

main23209-31170-08×6i202108

MARK 8

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-09280×4i201806-202108

main23209-29105×4i201806-201907

main23209-29115×4i202303

main23209-29165×4i201907-202108

main23209-29175×4i202108

main23209-39325×6i201806-202002

MARK=23250-31140

main23209-39435×6i202108

MARK=23250-31230

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202108

main23255-31020×4i201806-201901

main23255-31030×6i201902-202108

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i201806-202110

main23256-31010×6i201806-201901

NO.1

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010×4i202108

NO.2

main23258-31020×6i201806-202108

NO.1

main23258-36020×4i201806-202108

main23258-47010×4i201907-202108

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010×4i201806-202108

main23291-28020×4i202108

main23291-31030×6i202108

23291AINSULATOR, INJECTOR VIBRATION

main23291-28020×6i202108

main23291-31020×4i202108

23470LIFTER ASSY, FUEL PUMP

main23470-25010i201806-202108

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202108

main23477-31020i201806-202108

main23477-36011i201806-202108

23695ACLAMP, NOZZLE HOLDER

main23695-0Y010×4i201806-202108

(L)

main23695-24010×4i202108

main23695-25010×4i201806-202110

main23695-31020×4i201806-202108

(J)

23801FHOSE, FUEL, NO.1

main23801-31280i201806-201901

main23801-31281i202108

main23801-36090i201806-201901

main23801-36091i201902-202108

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-0V010i201806-202108

main23801-24070i202108

main23801-25030i201806-202006

main23801-25031i202006-202110

main23801-31210i201806-202108

23801YGASKET

main23893-47010i202108

main90430-12026i201806-202007

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-0V010i201806-202108

main23814-24020i201907-202108

main23814-25021i201806-202002

main23814-25022i202003-202107

main23814-25023i202108-202110

23811BPIPE, FUEL, NO.1

main23811-36041i201806-202007

23814BPIPE, FUEL DELIVERY

main23814-0V010supersedes 23814-0V040i201907-202108

main23814-24010i201907-202108

main23814-24011i202211

main23814-25010i201806-202110

main23814-25011i202211

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202108

main23851-36010i201806-201907

23881BBRACKET, FUEL HOSE

main23881-31040i201806-202108

main23881-36130i201806-202108

23891SPACER, FUEL DELIVERY

main23891-24010×2i201907-202108

main23891-36020×2supersedes 23891-36030i201907-202007

23915INSULATOR, FUEL PUMP

main23915-31010i201806-202007

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105C0070

main90105-C0070

90105C0081

main90105-C0081

90105C0085

main90105-C0085

9010708004

main90107-08004

9010906385

main90109-06385

9012608062

main90126-08062

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

9155180616

main91551-80616

9155180825

main91551-80825

91551G0835

main91551-G0835

9415120841

main94151-20841

9672319010

main96723-19010

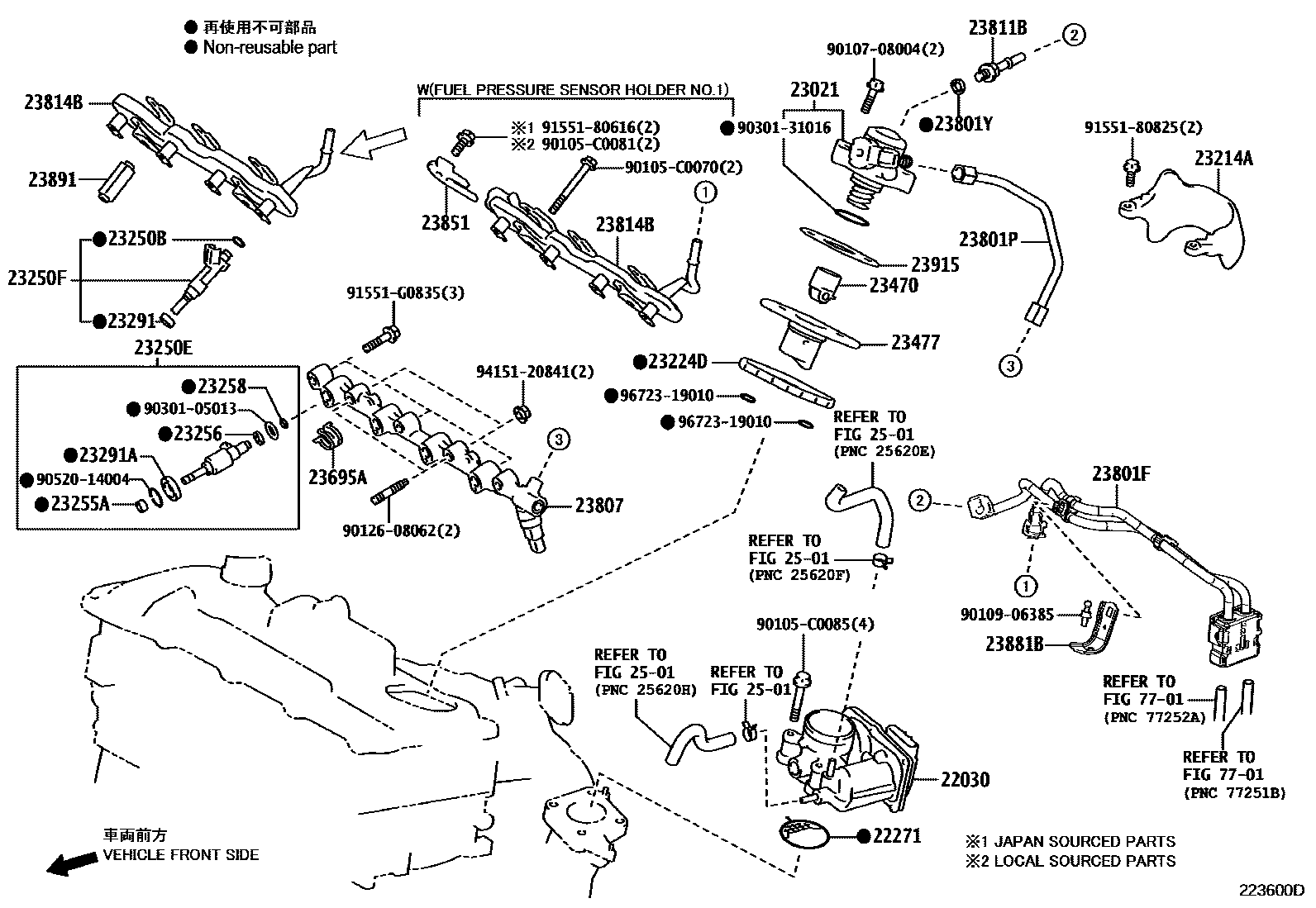

FUEL INJECTION SYSTEM
