SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL SWITCH 0005 1INSTRUMENT PANEL SWITCH 0006 1COWL RH 0007 1COWL RH 0008 1COWL LH 0009 1COWL LH 0010 1COMBINATION SWITCH 0011 1COMBINATION SWITCH 0012 1ROOF, FRONT DOOR & SEAT 0013 1FLOOR, REAR DOOR & LUGGAGE

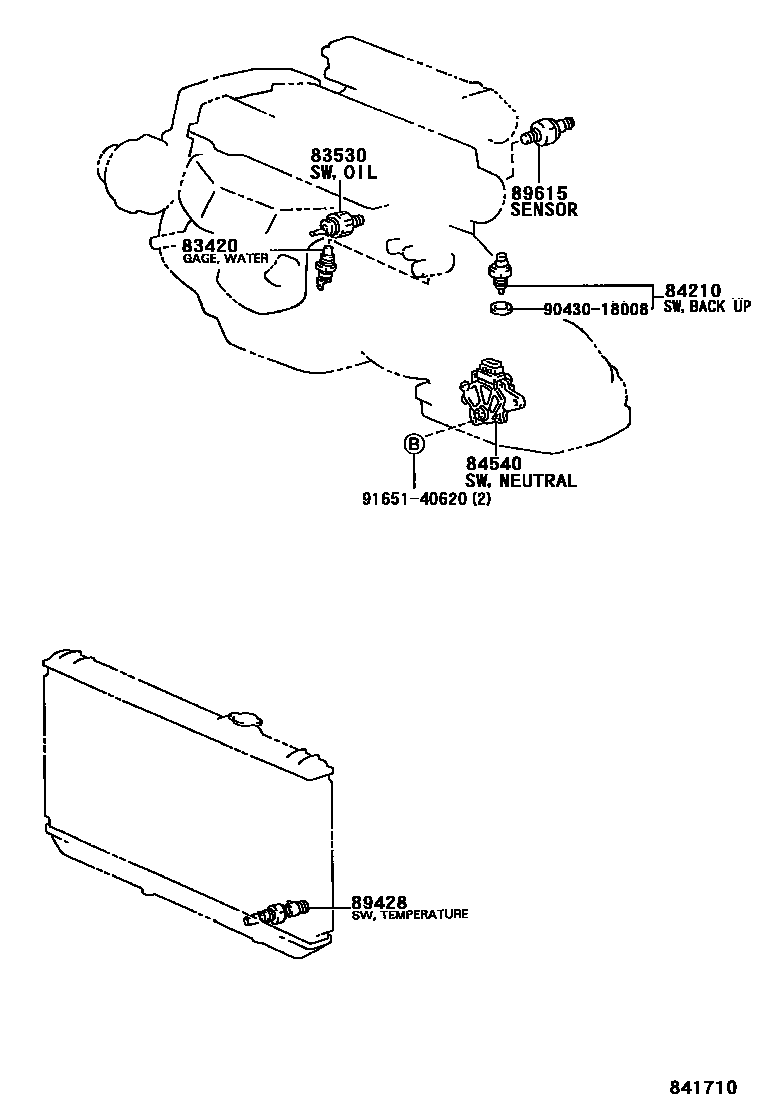

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCV10..JPP199501-199708

main83420-16030iVCV10..JPP199301-199501

main83420-16040iSXV1#..JPP199208-199708

NIPPONDENSO

main83420-20030iSXV1#..JPP199208-199408

YAZAKI

main83420-20040iMCV10,SXV1#..JPP199708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iSXV1#..JPP; VCV10..JPP199208-199408

NIPPONDENSO

main83530-28020iMCV10..JPP; SXV1#..JPP199802

DENSO

main83530-30090iSXV1#..JPP199208-199708

YAZAKI

main83530-60020iSXV1#..JPP199802

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSXV1#,VCV10..JPP..MTM199208

84540SWITCH ASSY, NEUTRAL START

main84540-20200iVCV10..JPP..LHD..ATM199309-199507

main84540-20220iSXV10..JPP..LHD..ATM199309-199508

main84540-32070iSXV1#..JPP..RHD..ATM199408-199508

TOKAIRIKA

main84540-32080iSXV1#..JPP..ATM199208-199308

MATSUSHITA

main84540-32090iVCV10..JPP..ATM199208-199308

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010iSXV1#..JPP199208

89615SENSOR, KNOCK CONTROL

main89615-12040×2iMCV10..JPP199708-199906

main89615-12090×2iMCV10..JPP199906

main89615-20030iSXV1#..JPP199208-199910

TOYOTA

main89615-32030iSXV1#..JPP199910

DENSO

main89615-32040iSXV1#..JPP199910

TOYOTA

main89615-33020×2iVCV10..JPP199408-199708

MATSUSHITA

9043018008

main90430-18008

9165140620

main91651-40620

8 parts on this diagram · 13 diagrams in section
