INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

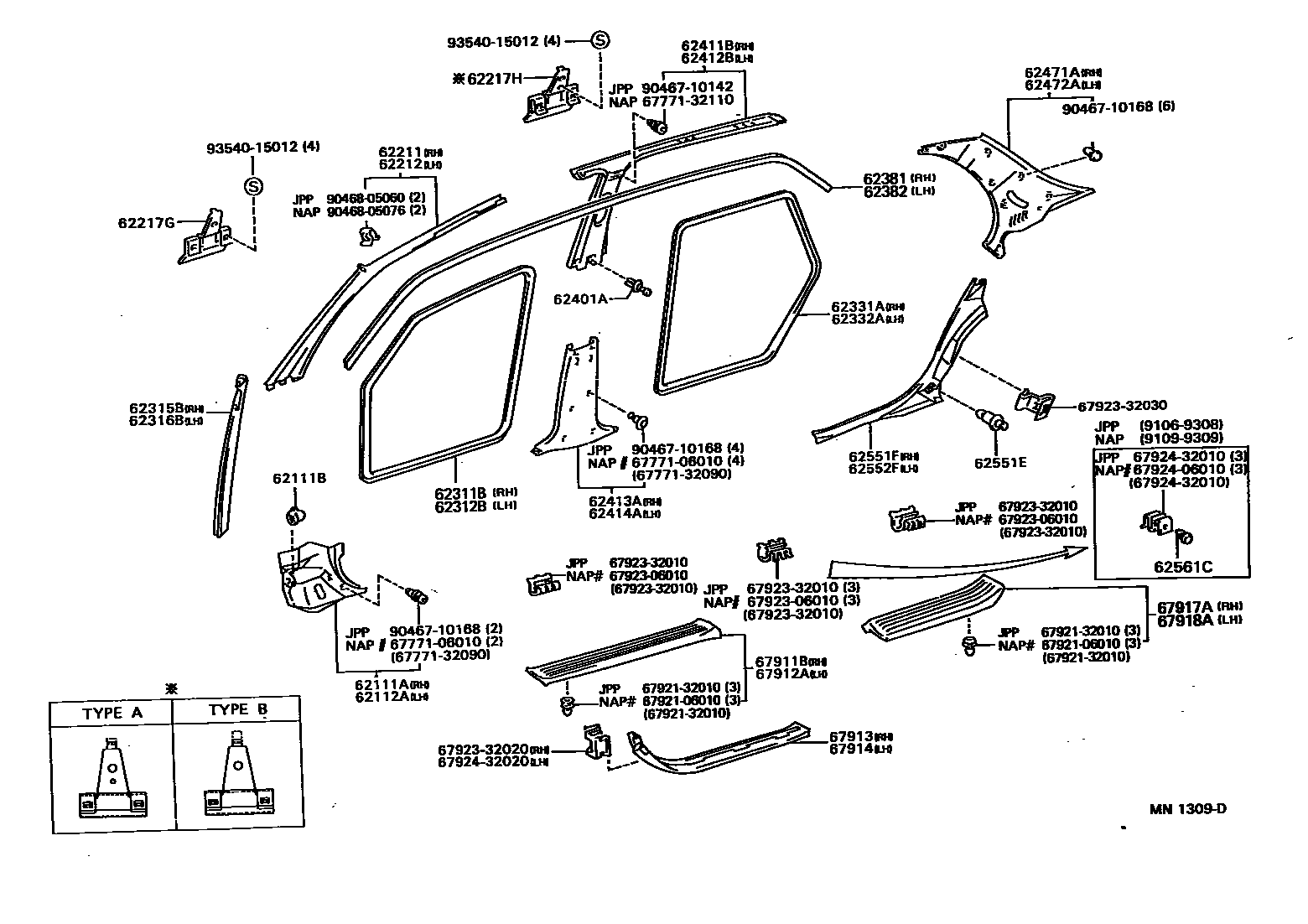

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-33010-B0i199208
MEDIUM GRAY,TRIM1#
sub62101-33010
main62101-33010-E0i199208-199408
OAK,TRIM4#
sub62101-33010
main62101-33020-03i199208-199408
MEDIUM GRAY,TRIM1#
sub62101-33020
main62101-33020-04i199208-199308
DARK BLUE,TRIM8#
sub62101-33020
main62101-33020-E0i199208-199608
OAK,TRIM4#
sub62101-33020
main62101-33020-S4i199408-199608
MD.GRAY,TRIM1#
sub62101-33020
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06158-B1i199710
MD.GRAY,TRIM1#
main90467-06158-C0i199305-199308
BLACK,TRIM1#,4#,8#
main90467-06158-C0i199308-199710
BLACK,TRIM1#,4#
main90467-06158-C0i199305-199308
BLACK,TRIM8#
main90467-08161i199208-199305
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-33010-03i199208-199408
MEDIUM GRAY,TRIM1#
sub62102-33010
main62102-33010-B0i199408
MEDIUM GRAY,TRIM1#
sub62102-33010
main62102-33010-E0i199208-199408
OAK,TRIM4#
sub62102-33010
main62102-33020-03i199208-199408
MEDIUM GRAY,TRIM1#
sub62102-33020
main62102-33020-04i199208-199308
DARK BLUE,TRIM8#
sub62102-33020
main62102-33020-E0i199208-199608
OAK,TRIM4#
sub62102-33020
main62102-33020-S4i199408-199608
MD.GRAY,TRIM1#
sub62102-33020
62211GARNISH, FRONT PILLAR, RH
main62210-32100-04i199208-199308
DARK BLUE,TRIM8#
sub62210-32100
main62210-32100-E0i199208-199608
OAK,TRIM4#
sub62210-32100
main62210-32100-S4i199208
MI.GRAY,TRIM1#
sub62210-32100
62212GARNISH, FRONT PILLAR, LH
main62220-32100-04i199208-199308
DARK BLUE,TRIM8#
sub62220-32100
main62220-32100-E0i199208-199608
OAK,TRIM4#
sub62220-32100
main62220-32100-S4i199208
MI.GRAY,TRIM1#
sub62220-32100
62217GCLIP, FRONT PILLAR GARNISH
main62217-32030i199208
62217HCLIP, CENTER PILLER GARNISH
main62217-32030i199208
TYPE B
main62217-33020i199208
TYPE A
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-32071i199208-199508
sub62311-33020
main62311-33020i199508
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-32041i199208-199508
sub62312-33020
main62312-33020i199508
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-32010-04i199208-199308
DARK BLUE,TRIM8#
sub62315-32010
main62315-32010-B0i199208
MEDIUM GRAY,TRIM1#
sub62315-32010
main62315-32010-E0i199208-199608
OAK,TRIM4#
sub62315-32010
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-33010-03i199208-199408
MEDIUM GRAY,TRIM1#
sub62316-33010
main62316-33010-04i199208-199308
DARK BLUE,TRIM8#
sub62316-33010
main62316-33010-B0i199408
MEDIUM GRAY,TRIM1#
sub62316-33010
main62316-33010-E0i199208-199608
OAK,TRIM4#
sub62316-33010
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-32031i199208-199508
sub62331-33020
main62331-33020i199508
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-32021i199208-199508
sub62332-33020
main62332-33020i199508
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-32040i199208
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-32040i199208
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-07041-01i199208-199308
BLACK,TRIM1#,4#,8#
sub90467-07041
main90467-07041-01i199208-199708
BLACK,TRIM1#,4#
sub90467-07041
main90467-07041-C0i199408-199608
BLACK,TRIM1#,4#
sub90467-07041
main90467-07041-C0i199708
BLACK,TRIM1#
sub90467-07041
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-33030-04i199208-199308
DARK BLUE,TRIM8#
sub62410-33030
main62410-33030-E0i199208-199608
OAK,TRIM4#
sub62410-33030
main62410-33030-S4i199208
MI.GRAY,TRIM1#
sub62410-33030
62412BGARNISH, CENTER PILLAR, UPPER LH
main62420-33030-04i199208-199308
DARK BLUE,TRIM8#
sub62420-33030
main62420-33030-E0i199208-199608
OAK,TRIM4#
sub62420-33030
main62420-33030-S4i199208
MI.GRAY,TRIM1#
sub62420-33030
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-32060-04i199208-199308
DARK BLUE,TRIM8#
sub62413-32060
main62413-32060-E0i199208-199608
OAK,TRIM4#
sub62413-32060
main62413-32060-S4i199208
MI.GRAY,TRIM1#
sub62413-32060
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-32060-04i199208-199308
DARK BLUE,TRIM8#
sub62414-32060
main62414-32060-E0i199208-199608
OAK,TRIM4#
sub62414-32060
main62414-32060-S4i199208
MI.GRAY,TRIM1#
sub62414-32060
62471AGARNISH, ROOF SIDE, INNER RH
main62470-33020-03i199208-199408
MEDIUM GRAY,TRIM1#
sub62470-33020
main62470-33020-04i199208-199308
DARK BLUE,TRIM8#
sub62470-33020
main62470-33020-E0i199208-199608
OAK,TRIM4#
sub62470-33020
main62470-33020-S4i199408
MD.GRAY,TRIM1#
sub62470-33020
62472AGARNISH, ROOF SIDE, INNER LH
main62480-33020-03i199208-199408
MEDIUM GRAY,TRIM1#
sub62480-33020
main62480-33020-04i199208-199308
DARK BLUE,TRIM8#
sub62480-33020
main62480-33020-E0i199208-199608
OAK,TRIM4#
sub62480-33020
main62480-33020-S4i199408
MD.GRAY,TRIM1#
sub62480-33020
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-07108i199208
62551FGARNISH, REAR SEAT SIDE, RH
main62551-32050-04i199208-199308
DARK BLUE,TRIM8#
sub62551-32050
main62551-32050-E0i199208-199608
OAK,TRIM4#
sub62551-32050
main62551-32050-S4i199208
MI.GRAY,TRIM1#
sub62551-32050
62552FGARNISH, REAR SEAT SIDE, LH
main62552-32050-04i199208-199308
DARK BLUE,TRIM8#
sub62552-32050
main62552-32050-E0i199208-199608
OAK,TRIM4#
sub62552-32050
main62552-32050-S4i199208
MI.GRAY,TRIM1#
sub62552-32050
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-11021-01i199208-199308
BLACK,TRIM1#,4#
sub90467-11068
main90467-11021-01i199208-199308
BLACK,TRIM1#,4#,8#
sub90467-11068
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-32010i199208
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-32010i199208
67913PLATE, FRONT DOOR SCUFF, RH
main67913-33010-03i199208-199408
MEDIUM GRAY,TRIM1#
sub67913-33010
main67913-33010-04i199208-199308
DARK BLUE,TRIM8#
sub67913-33010
main67913-33010-E0i199208-199608
OAK,TRIM4#
sub67913-33010
main67913-33010-S4i199408
MD.GRAY,TRIM1#
sub67913-33010
67914PLATE, FRONT DOOR SCUFF, LH
main67914-33010-03i199208-199408
MEDIUM GRAY,TRIM1#
sub67914-33010
main67914-33010-04i199208-199308
DARK BLUE,TRIM8#
sub67914-33010
main67914-33010-E0i199208-199608
OAK,TRIM4#
sub67914-33010
main67914-33010-S4i199408
MD.GRAY,TRIM1#
sub67914-33010
67917APLATE, REAR DOOR SCUFF, RH
main67915-32010i199208
67918APLATE, REAR DOOR SCUFF, LH
main67916-32010i199208
6777106010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-06010
6777132090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32090
6777132110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32110
6792106010RETAINER, FRONT DOOR SCUFF PLATE
main67921-06010
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
6792306010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-06010
6792332010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32010
6792332020CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32020
6792332030CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32030
6792406010CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-06010
6792432010CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-32010
6792432020CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-32020
9046710142
main90467-10142
9046710168
main90467-10168
9046805060
main90468-05060
9046805076
main90468-05076
9354015012
main93540-15012

49 parts on this diagram · 1 diagram in section
