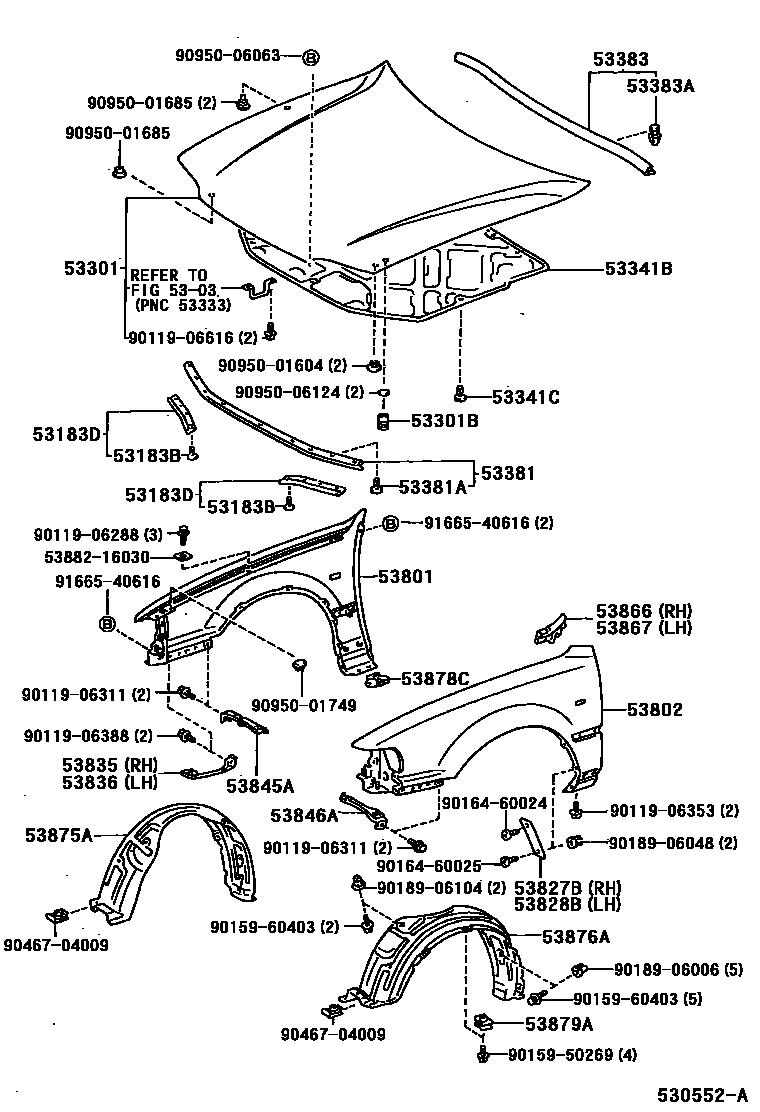

HOOD & FRONT FENDER

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011×8iMCV10,SXV1#,VCV10..JPP199208

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-33010iMCV10,SXV1#,VCV10..JPP199208

RH

main53184-33010iMCV10,SXV1#,VCV10..JPP199208

LH

53301HOOD SUB-ASSY

main53301-33900iSXV1#,VCV10..JPP199208-199708

53301BCUSHION, HOOD BUMPER

main90541-15004×2iMCV10,SXV1#,VCV10..JPP199208

53341BINSULATOR, HOOD

main53341-33010iSXV1#,VCV10..JPP..(GD,GL,LUM,SEI,SI,XL)199208-199708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×12iMCV10,SXV1#,VCV10..JPP..(GD,GL,LUM,SEI,SI,XL)199208

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33010iMCV10,SXV1#,VCV10..JPP199208

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iMCV10,SXV1#,VCV10..JPP199208

53383SEAL, HOOD TO COWL TOP

main53383-33010iMCV10,SXV1#,VCV10..JPP199208

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-06138×9iMCV10,SXV1#,VCV10..JPP199208

CENTER

main90467-09151iMCV10,SXV1#,VCV10..JPP199208

RH

main90467-09152iMCV10,SXV1#,VCV10..JPP199208

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-33020iSXV1#,VCV10..JPP199208-199408

main53801-33021iSXV1#,VCV10..JPP199408-199708

53802FENDER SUB-ASSY, FRONT LH

main53802-33020iSXV1#,VCV10..JPP199208-199408

main53802-33021iSXV1#,VCV10..JPP199408-199708

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-33010iMCV10,SXV1#,VCV10..JPP199208

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33010iMCV10,SXV1#,VCV10..JPP199208

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-33020iSXV1#,VCV10..JPP199208-199301

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-33020iSXV1#,VCV10..JPP199208-199301

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33010iSXV1#,VCV10..JPP199208-199708

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33010iSXV1#,VCV10..JPP199208-199708

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33010iMCV10,SXV1#,VCV10..JPP199208

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33010iMCV10,SXV1#,VCV10..JPP199208

53875ALINER, FRONT FENDER, RH

main53875-33040iMCV10,SXV1#..JPP199708

main53875-33050iSXV1#,VCV10..JPP199208-199708

53876ALINER, FRONT FENDER, LH

main53876-33040iMCV10,SXV1#..JPP199708

main53876-33050iSXV1#,VCV10..JPP199208-199708

53878CSPACER, FRONT FENDER

main53878-20040×2iMCV10,SXV1#,VCV10..JPP199208

53879ARETAINER, FRONT FENDER LINER

main53879-14010×8iMCV10,SXV1#,VCV10..JPP199208

5388216030PACKING, FRONT FENDER MAIN

main53882-16030

9011906288

main90119-06288

9011906311

main90119-06311

9011906353

main90119-06353

9011906388

main90119-06388

9011906616

main90119-06616

9015950269

main90159-50269

9015960403

main90159-60403

9016460024

main90164-60024

9016460025

main90164-60025

9018906006

main90189-06006

9018906048

main90189-06048

9018906104

main90189-06104

9046704009

main90467-04009

9095001604

main90950-01604

9095001685

main90950-01685

9095001749

main90950-01749

9095006063

main90950-06063

9095006124

main90950-06124

9166540616

main91665-40616

45 parts on this diagram · 1 diagram in section
