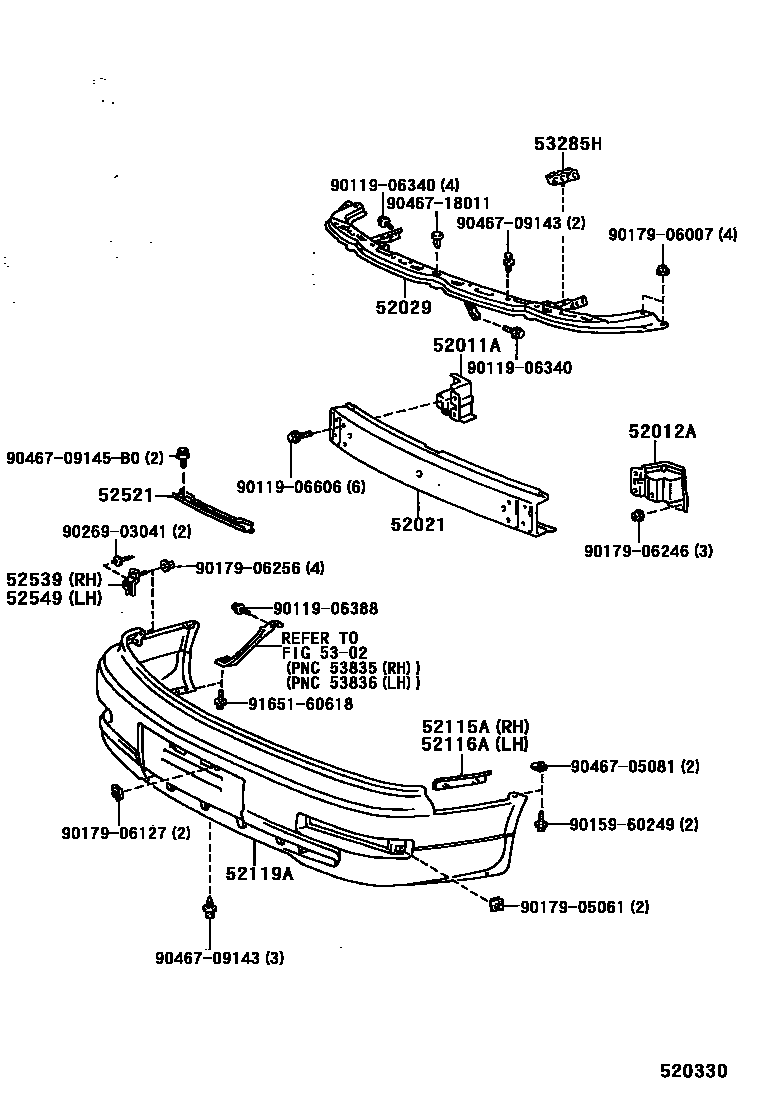

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-33010iSXV1#,VCV10..JPP199208-199708

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-33010iSXV1#,VCV10..JPP199208-199708

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33011iSXV1#,VCV10..JPP199208-199608

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-33030iSXV1#,VCV10..JPP199208-199708

main52029-33040iMCV10,SXV1#..JPP199708

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-33010iSXV1#,VCV10..JPP199208-199708

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-33010iSXV1#,VCV10..JPP199208-199708

52119ACOVER, FRONT BUMPER

main52119-33901iSXV1#,VCV10..JPP199208-199708

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-33030iMCV10,SXV1#..JPP199708

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-33020iSXV1#,VCV10..JPP199208-199708

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52549-33020iSXV1#,VCV10..JPP199208-199708

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53285HSEAL, RADIATOR SIDE AIR, NO.1

main53285-33010iMCV10,SXV1#,VCV10..JPP199208

9011906340

main90119-06340

9011906388

main90119-06388

9011906606

main90119-06606

9015960249

main90159-60249

9017905061

main90179-05061

9017906007

main90179-06007

9017906127

main90179-06127

9017906246

main90179-06246

9017906256

main90179-06256

9026903041

main90269-03041

9046705081

main90467-05081

9046709143

main90467-09143

9046709145B0

main90467-09145B0

9046718011

main90467-18011

9165160618

main91651-60618

27 parts on this diagram · 1 diagram in section
