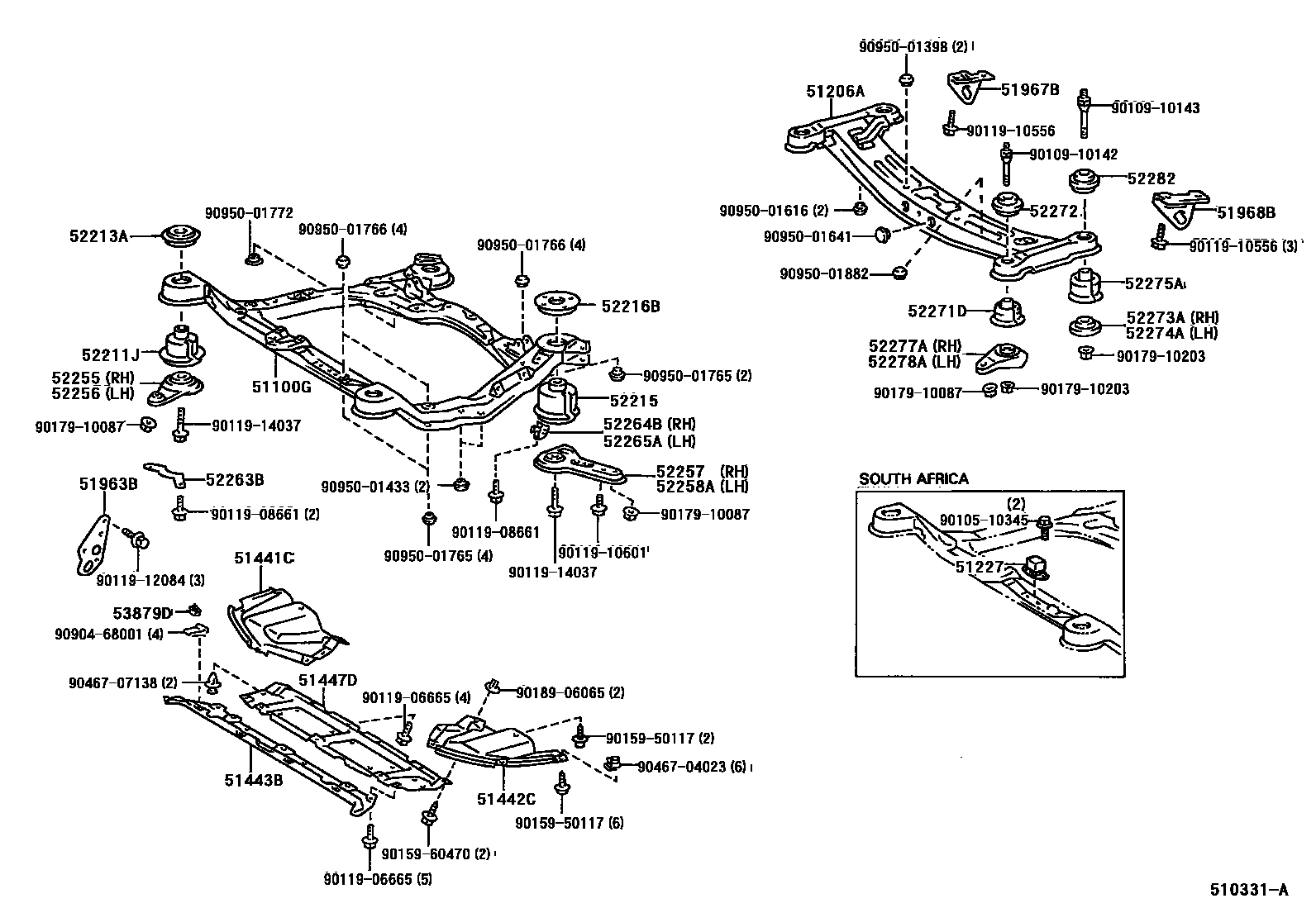

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-33010iSXV1#,VCV10..JPP199208-199708

main51100-33030iMCV10,SXV1#..JPP199901

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33010iSXV1#,VCV10..JPP199208-199408

main51206-33011iSXV1#,VCV10..JPP199408-199708

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-33010iSXV11..JPP199208

51441CCOVER, ENGINE UNDER, RH

main51441-33020iSXV1#,VCV10..JPP199208-199708

51442CCOVER, ENGINE UNDER, LH

main51442-33020iSXV1#,VCV10..JPP199208-199708

51443BCOVER, ENGINE UNDER, NO.3

main51443-33010iSXV1#,VCV10..JPP199208-199708

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-33020iSXV1#,VCV10..JPP199208-199708

51963BHOOK, TRANSPORT, FRONT RH

main51963-33010×2iSXV1#,VCV10..JPP199208-199708

51967BHOOK, TRANSPORT, REAR RH

main51967-33010iSXV1#,VCV10..JPP199208-199708

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iSXV1#,VCV10..JPP199208-199708

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33030×2iMCV10,SXV1#,VCV10..JPP199208

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33030×2iMCV10,SXV1#,VCV10..JPP199208

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33030×2iMCV10,SXV1#,VCV10..JPP199208

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020×2iMCV10,SXV1#,VCV10..JPP199208

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33010iMCV10,SXV1#,VCV10..JPP199208

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33010iMCV10,SXV1#,VCV10..JPP199208

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV10,SXV1#,VCV10..JPP199605

main52257-33010iSXV1#,VCV10..JPP199208-199605

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV10,SXV1#,VCV10..JPP199605

main52258-33010iSXV1#,VCV10..JPP199208-199605

52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1

main52263-33010×2iSXV1#,VCV10..JPP199208-199307

52264BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.2

main52264-33010iSXV1#,VCV10..JPP199208-199307

52265ARETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.3

main52265-33010iSXV1#,VCV10..JPP199208-199307

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-33010×2iMCV10,SXV1#,VCV10..JPP199208

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010×2iMCV10,SXV1#,VCV10..JPP199208

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-32010iMCV10,SXV1#,VCV10..JPP199208

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-32010iMCV10,SXV1#,VCV10..JPP199208

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33010×2iMCV10,SXV1#,VCV10..JPP199208

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV10,SXV1#,VCV10..JPP199208

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV10,SXV1#,VCV10..JPP199208

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33010×2iMCV10,SXV1#,VCV10..JPP199208

53879DRETAINER, FRONT FENDER LINER

main53879-20020×4iMCV10..JPP199708

9010510345

main90105-10345

9010910142

main90109-10142

9010910143

main90109-10143

9011906665

main90119-06665

9011908661

main90119-08661

9011910556

main90119-10556

9011910601

main90119-10601

9011912084

main90119-12084

9011914037

main90119-14037

9015950117

main90159-50117

9015960470

main90159-60470

9017910087

main90179-10087

9017910203

main90179-10203

9018906065

main90189-06065

9046704023

main90467-04023

9046707138

main90467-07138

9090468001

main90904-68001

9095001398

main90950-01398

9095001433

main90950-01433

9095001616

main90950-01616

9095001641

main90950-01641

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

9095001882

main90950-01882

55 parts on this diagram · 1 diagram in section
